MU3 - Manual Transaxle

Backup Lamp Switch Replacement

Removal Procedure





1. Disconnect the backup lamp switch electrical connector.

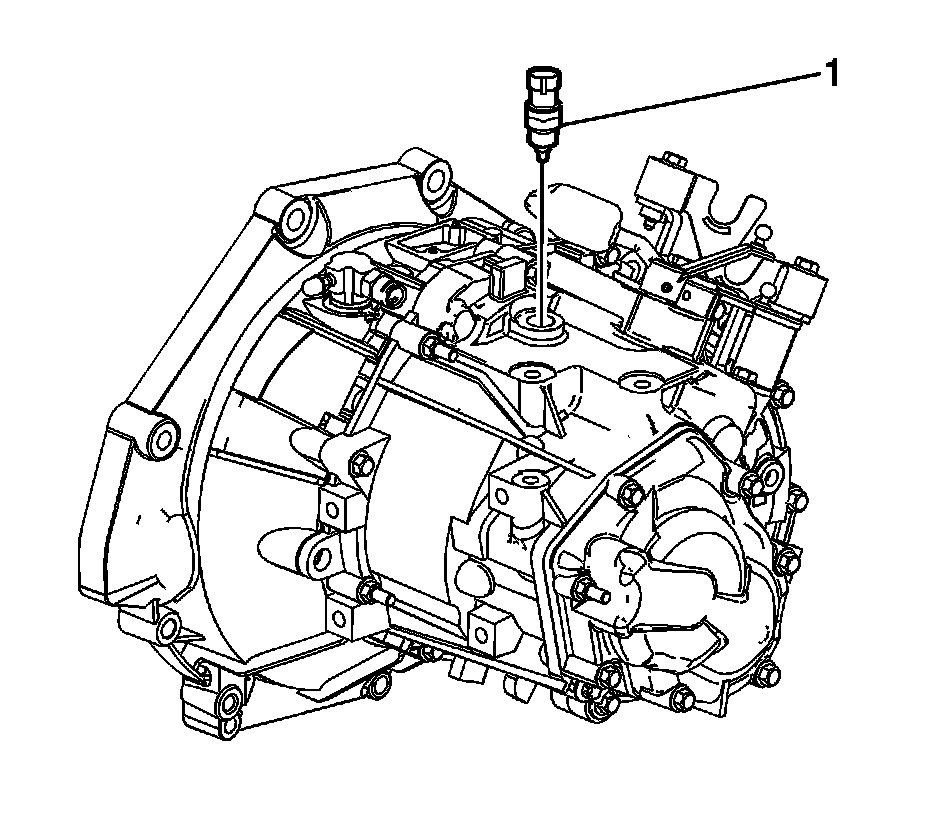

2. Remove the backup lamp switch.



Installation Procedure






Notice: Refer to Component Fastener Tightening Notice (Component Fastener Tightening Notice) .

1. Remove the backup lamp switch.

Tighten the switch to 24 N.m (18 lb ft).

2. Connect the backup lamp switch electrical connector.
