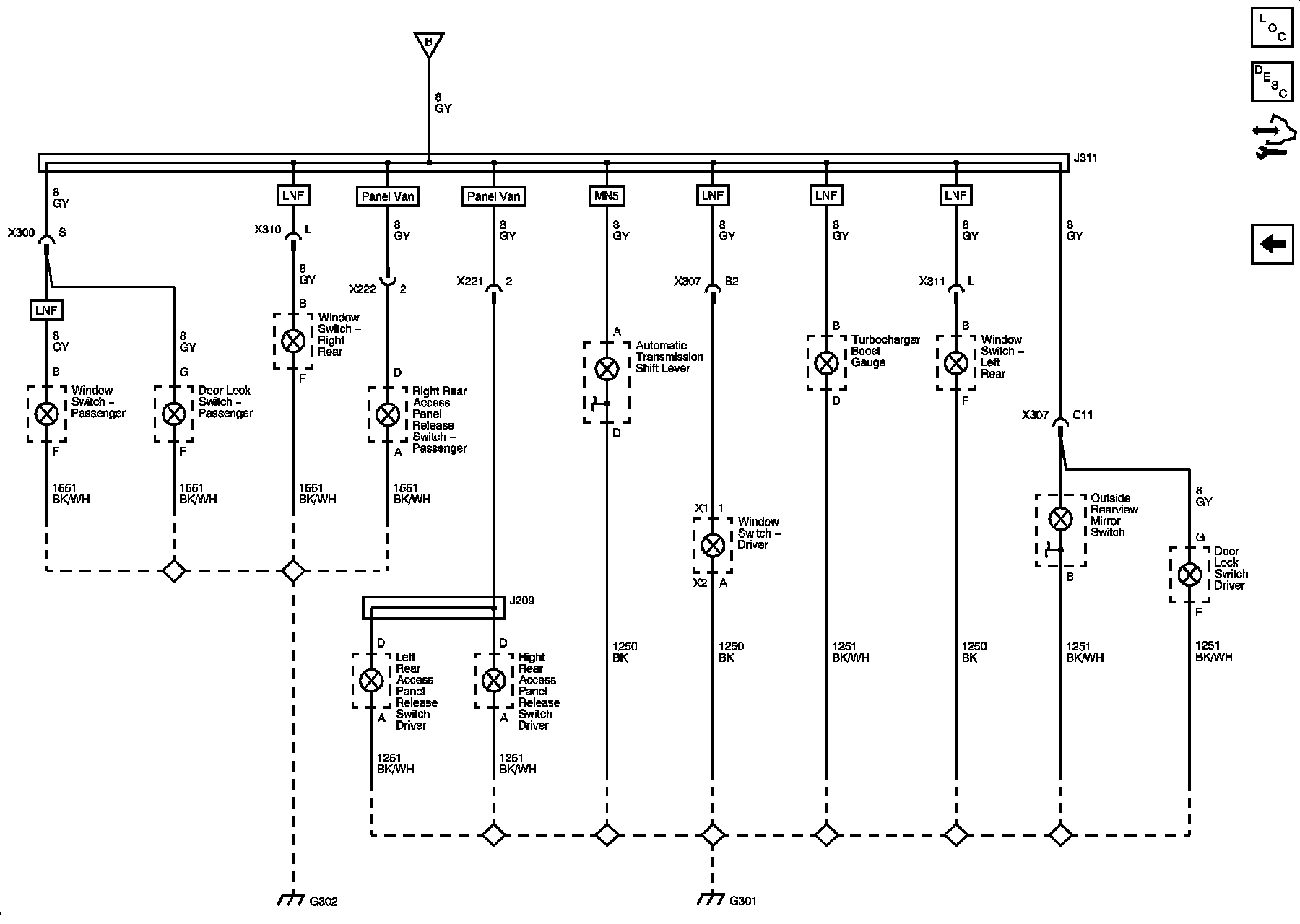

Interior Lights Dimming Diagrams 3




A/T Shift Lock Control Solenoid, Door Lock Switches, Outside Rearview Mirror, Boost Gauge, Power Window Switches, and RAP Switches

Interior Lights Dimming Diagrams 3:
