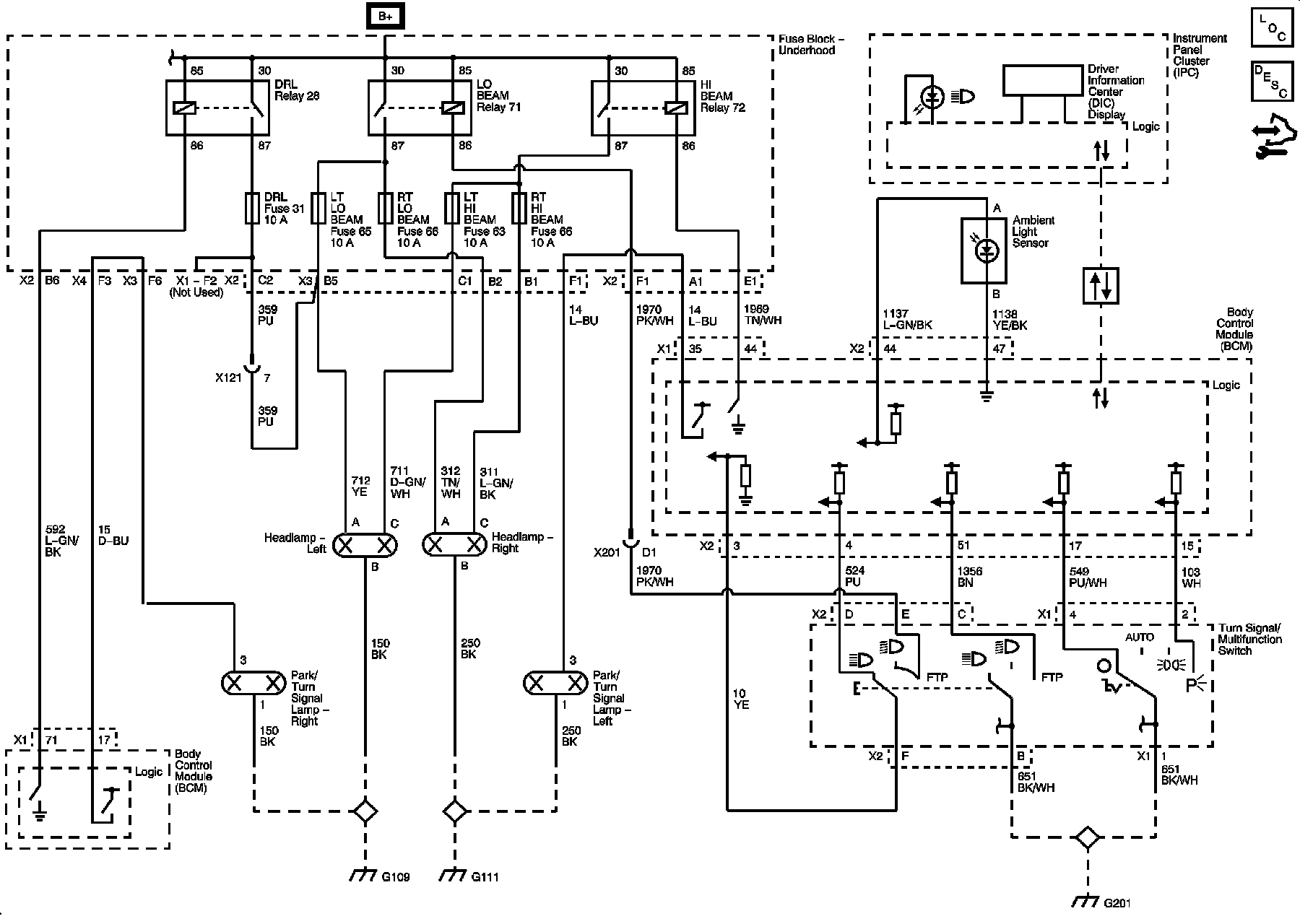

Headlights/Daytime Running Lights (DRL) Diagram



Headlights/Daytime Running Lights (DRL) Schematics

Headlights/Daytime Running Lights (DRL) Diagram:
