Heating and Air Conditioning
HVAC Schematics

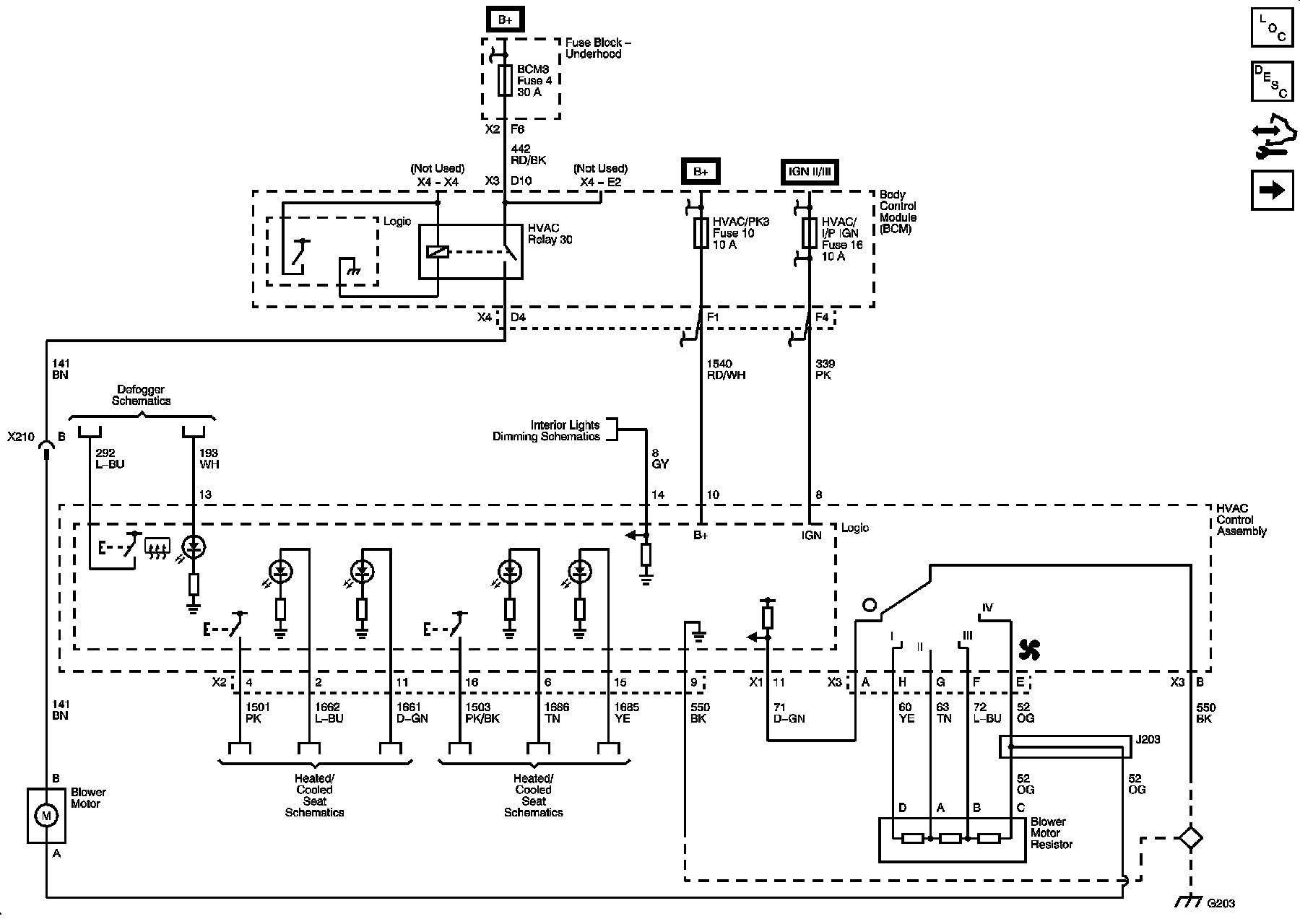

Power, Ground, Blower Motor Controls, and Subsystem References

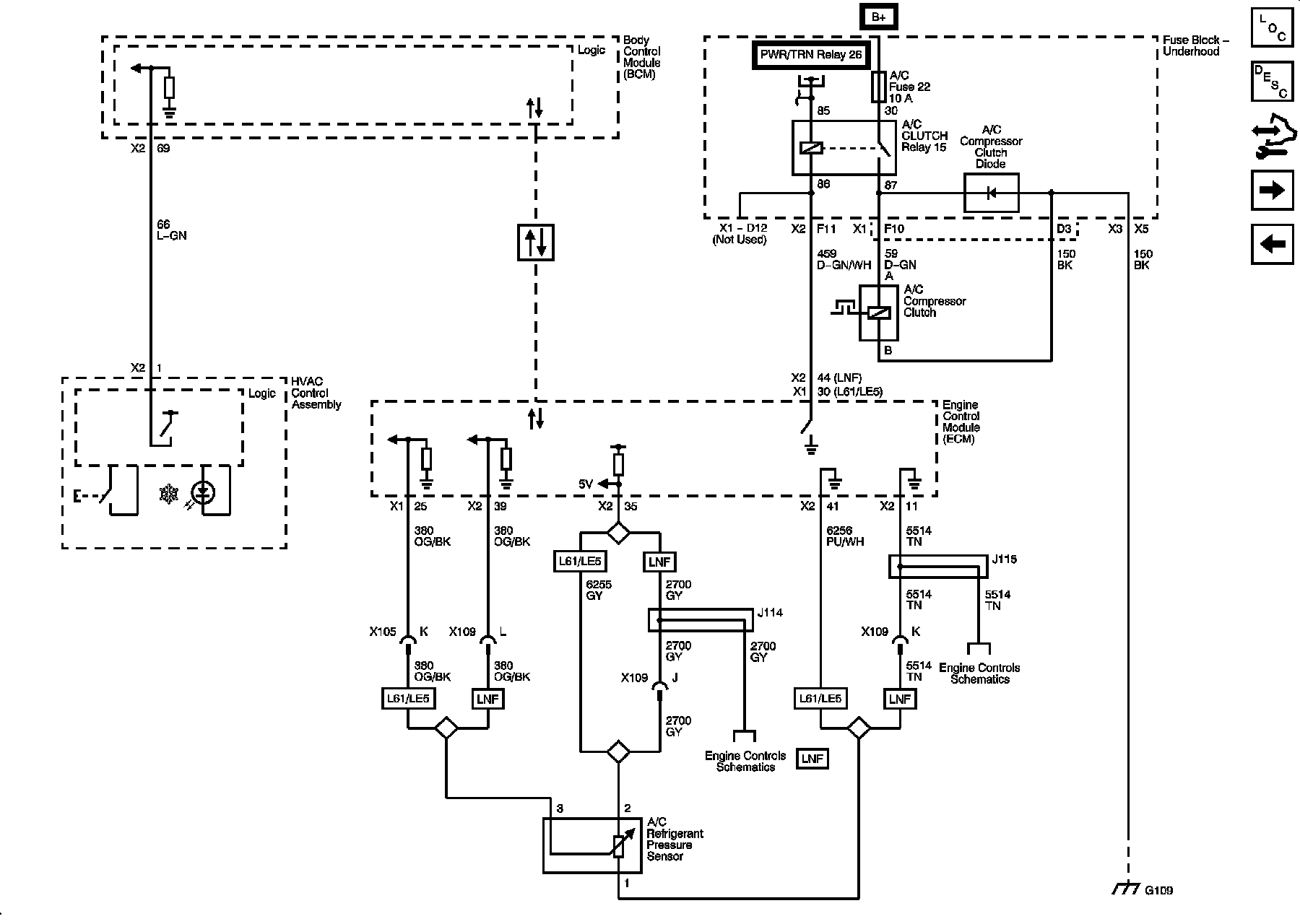

Compressor Controls
Mode and Air Temperature Controls
HVAC Schematics
Power, Ground, Blower Motor Controls, and Subsystem References
Compressor Controls
Mode and Air Temperature Controls
