LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300-X399
>>
X319
X319

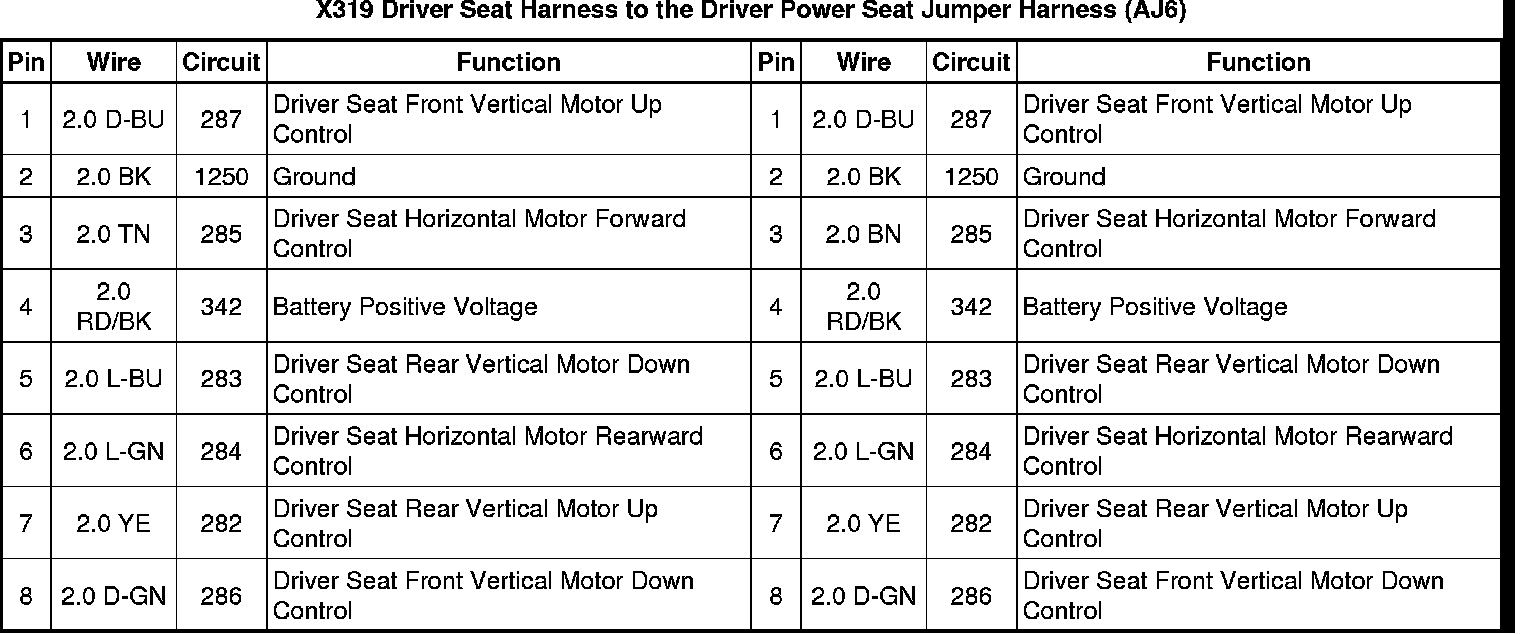

X319 Driver Seat Harness to the Driver Power Seat Jumper Harness (AJ6)
