LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
X400 - X499
>>
X405
X405

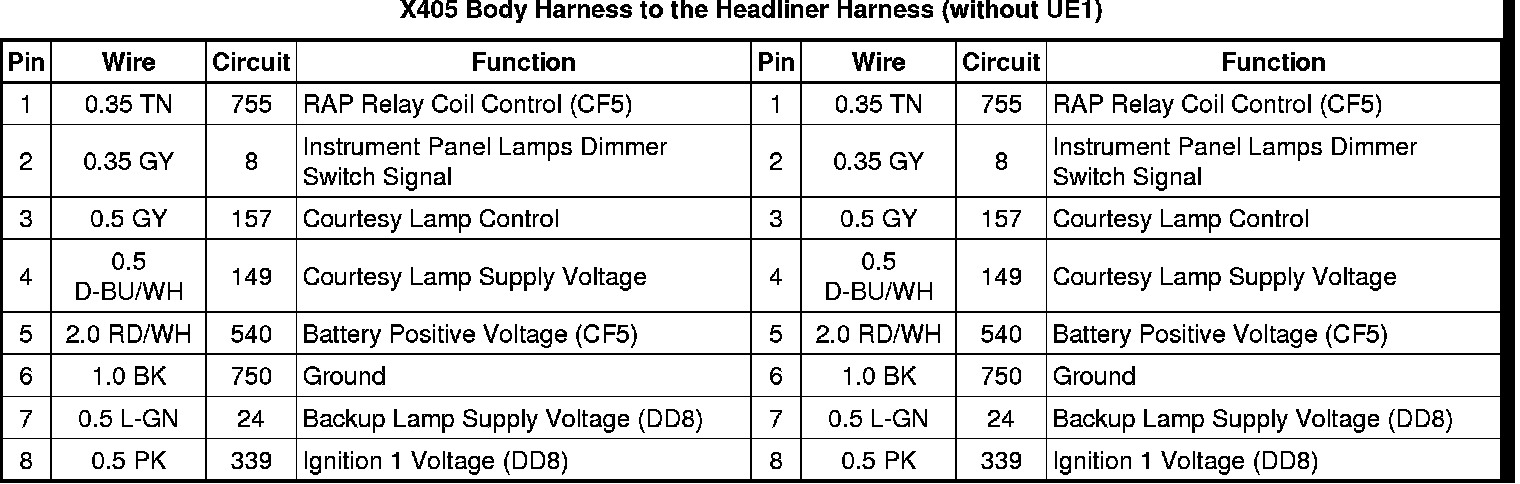

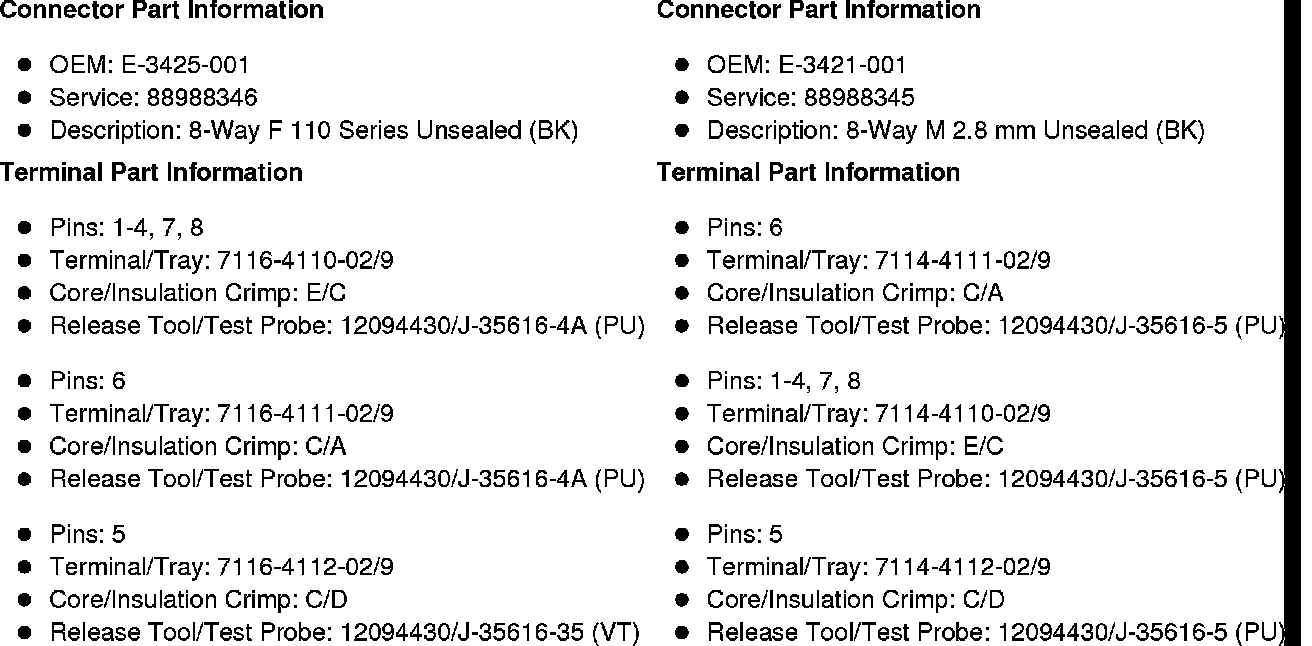

X405 Body Harness to the Headliner Harness (without UE1)
