Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> X300 - X399 >> X301

X301

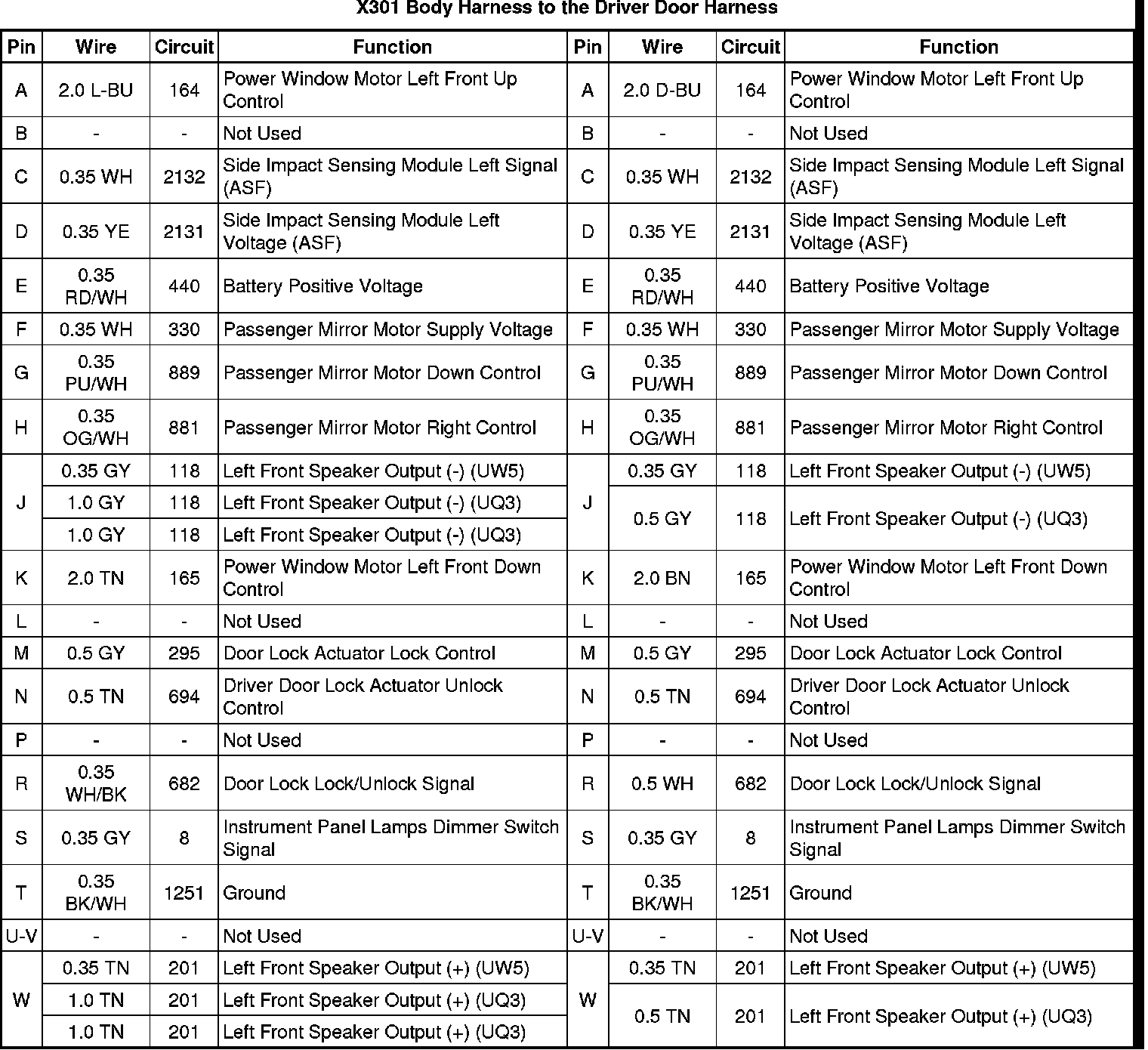

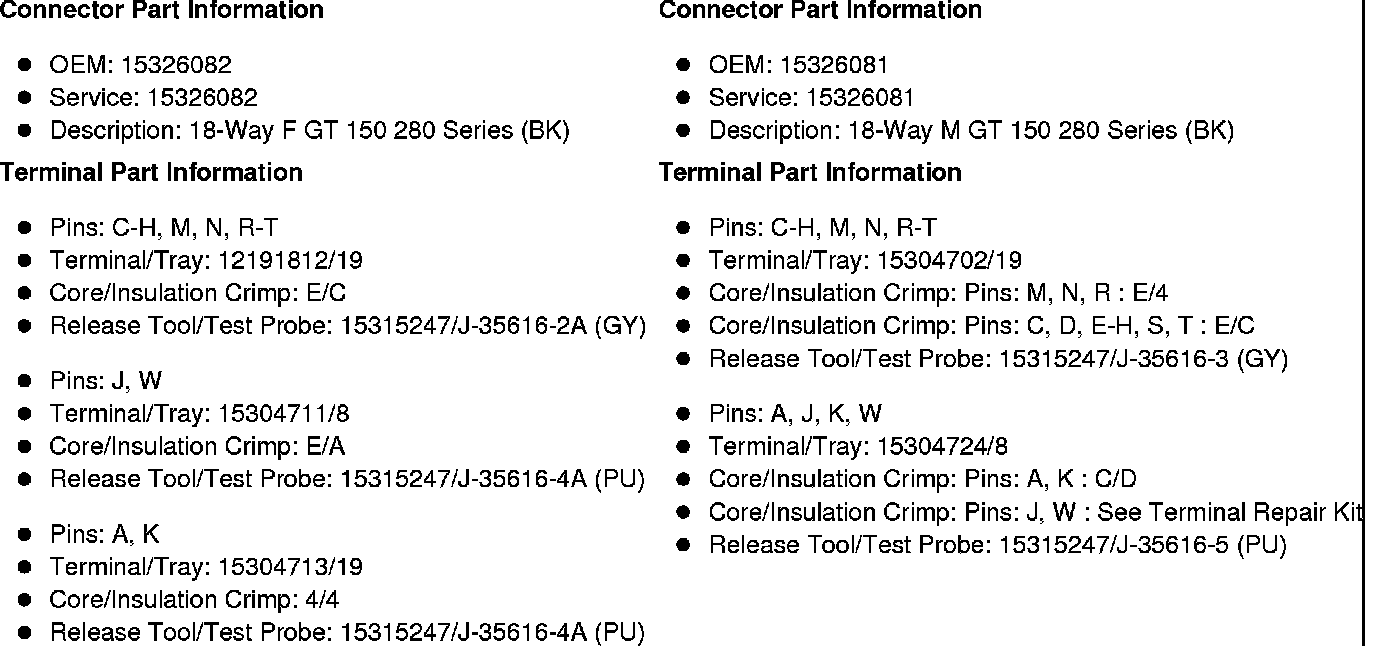

X301 Body Harness to the Driver Door Harness
