Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Seat Occupant Sensor

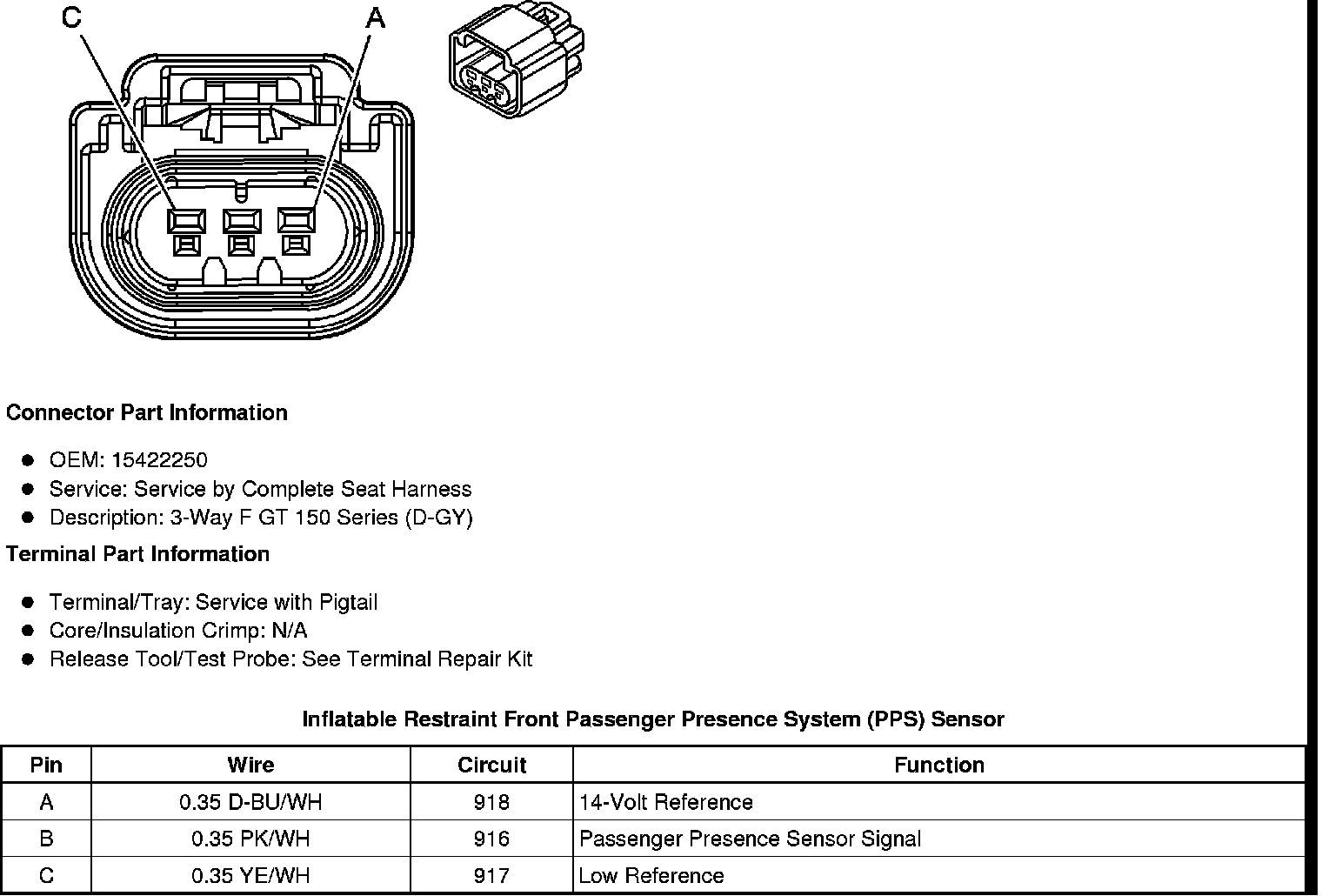

Seat Occupant Sensor




Inflatable Restraint Front Passenger Presence System (PPS) Sensor
