Hydraulic Control Assembly - Antilock Brakes: Diagrams

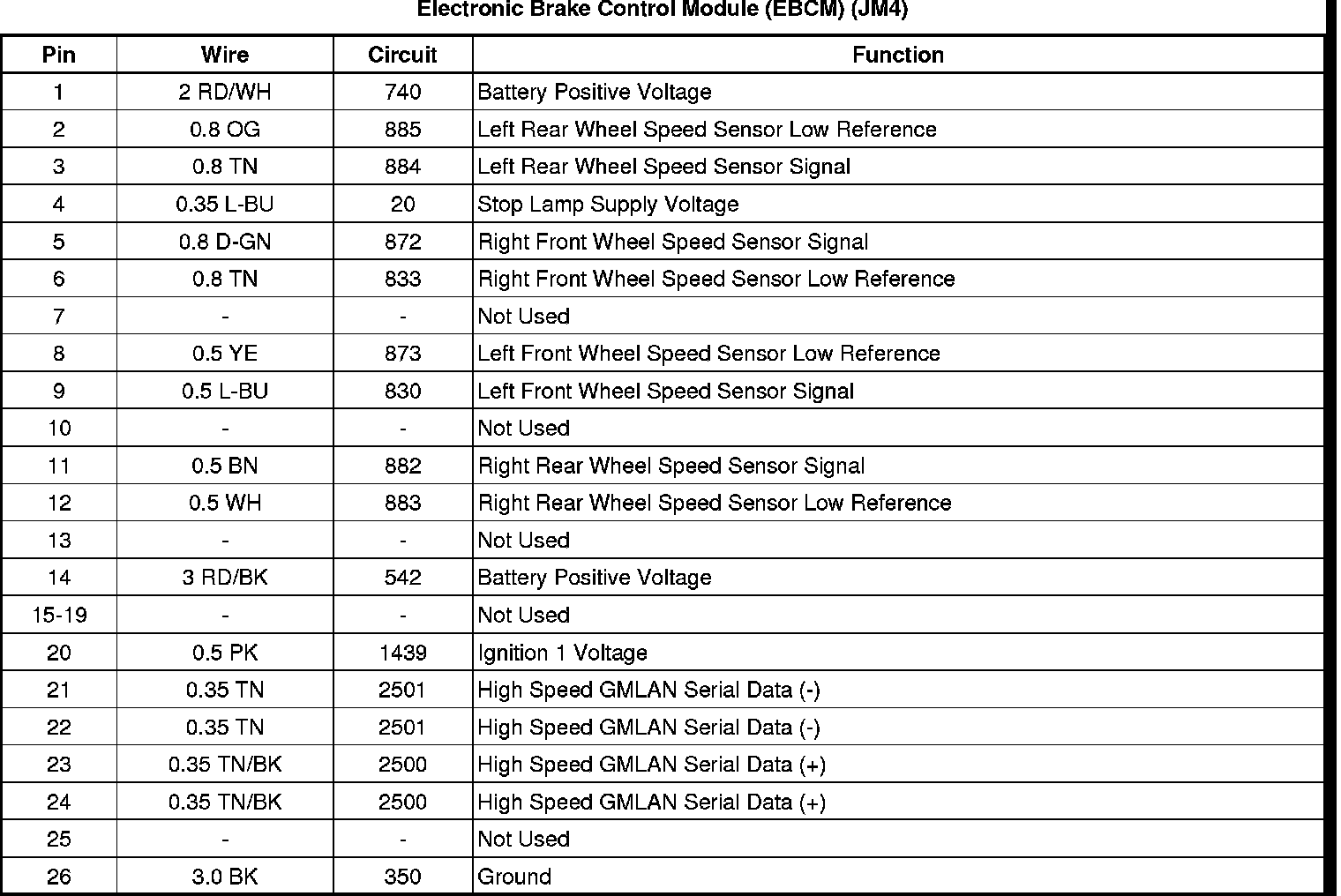

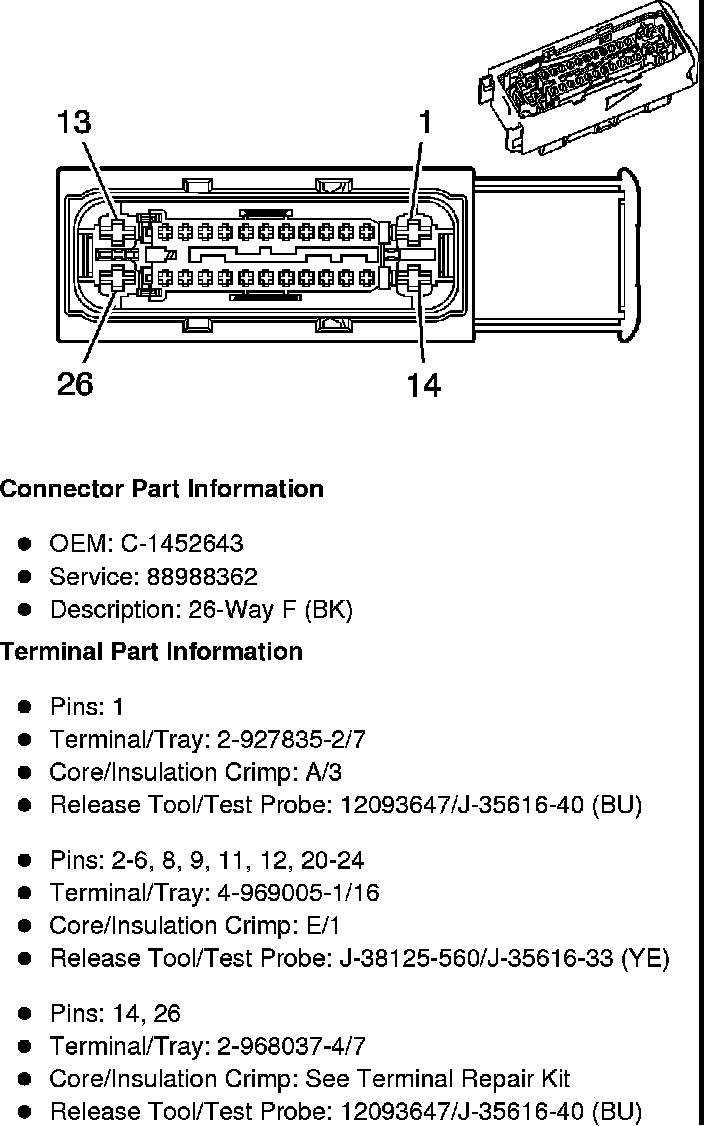

Electronic Brake Control Module (EBCM) (JM4)

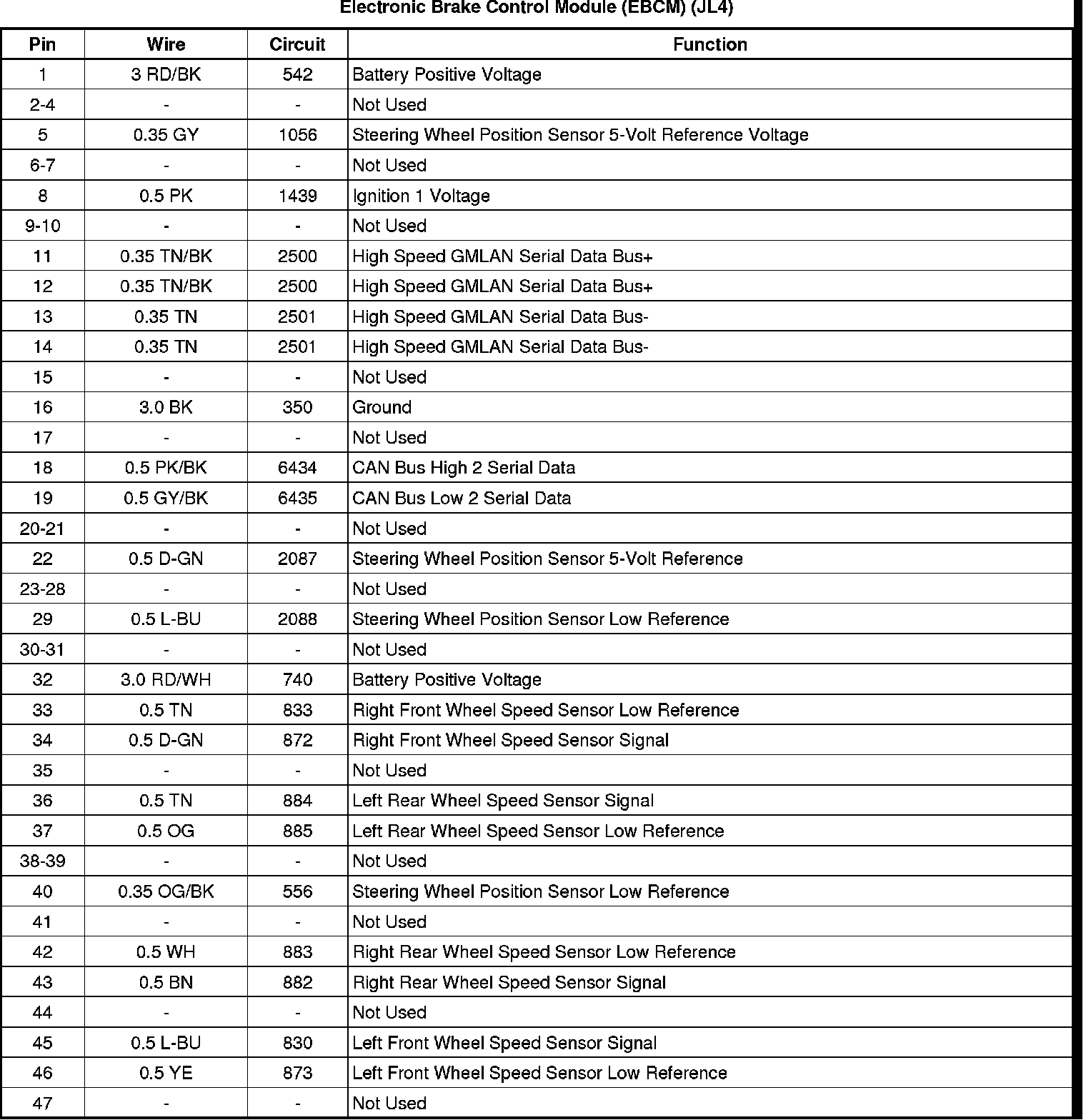

Electronic Brake Control Module (EBCM) (JL4)
