Output Shaft Removal

Output Shaft Removal


Tools Required
* J 6125-1B Slide Hammer with Adapter
* J 38868 Output Shaft Assembly Remover and Installer






1. Remove the snap ring (57).

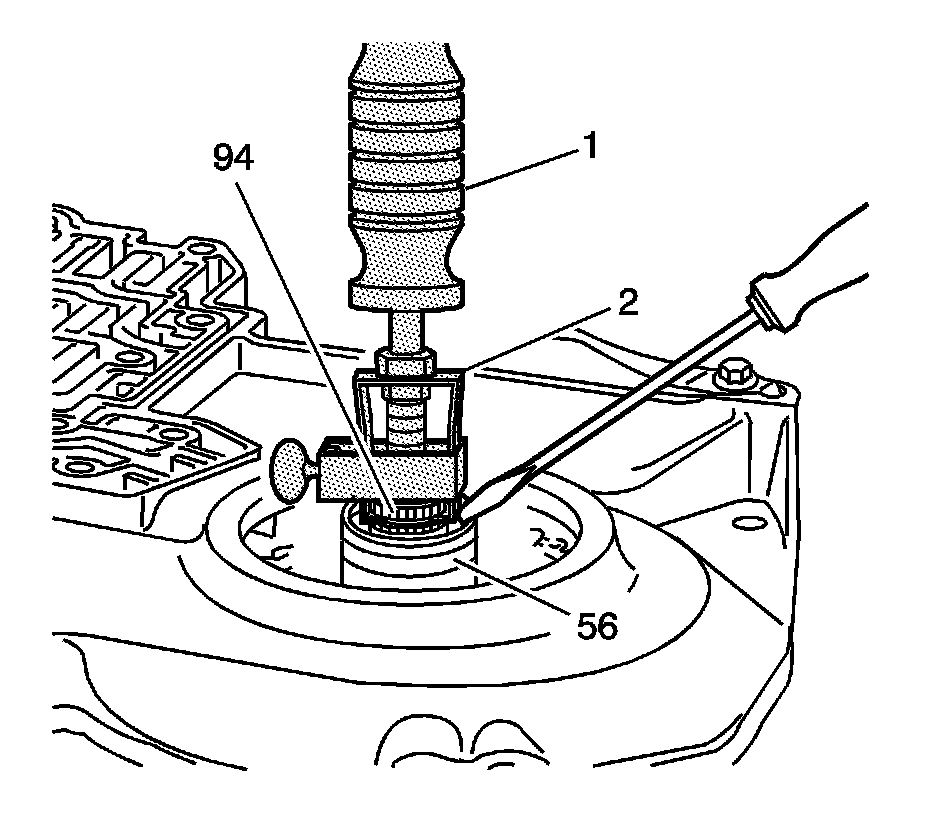

2. Install the J 6125-1B and J 38868 on the output shaft (94).
3. Use a screw driver to pry up on the shaft to take up the slack, then pull up on the slide hammer.
