Direct/Coast Clutch and Reaction Gear Set Removal

Direct/Coast Clutch and Reaction Gear Set Removal

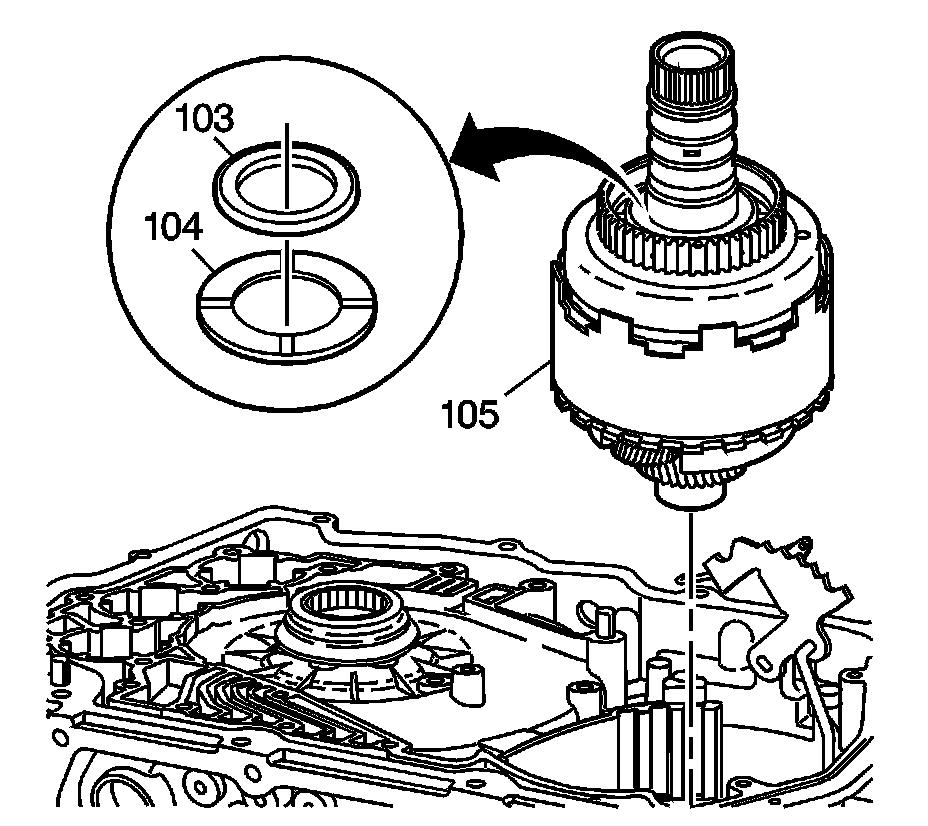

Important: Keep the bearing assembly (103) and the selective thrust washer (104) on top of the direct/coast clutch and reaction carrier assembly (105).



Remove the direct/coast clutch and reaction carrier assembly (105).
