Torque Converter Seal Installation



Torque Converter Seal Installation

Tools Required

J 28540-A Torque Converter Seal Installer





Notice: Install the seal onto the tool before installing into the case to prevent damage to the seal.

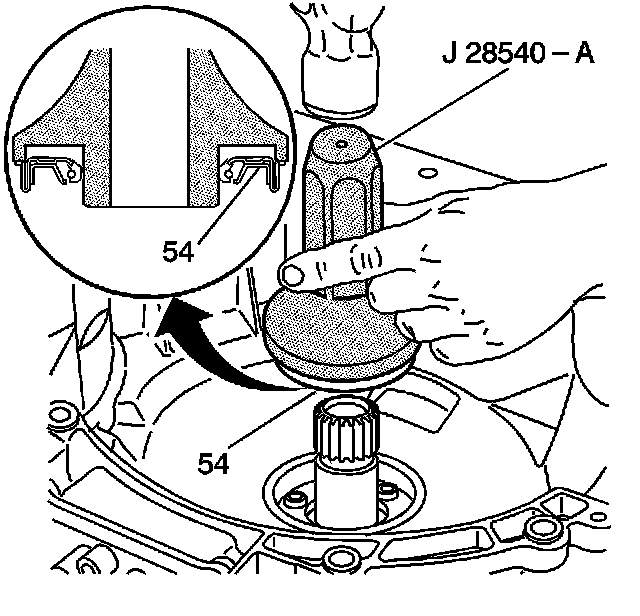

Install a new torque converter seal (54). Use the J 28540-A .
