68. Engine Oil Cooler Installation

Engine Oil Cooler Installation

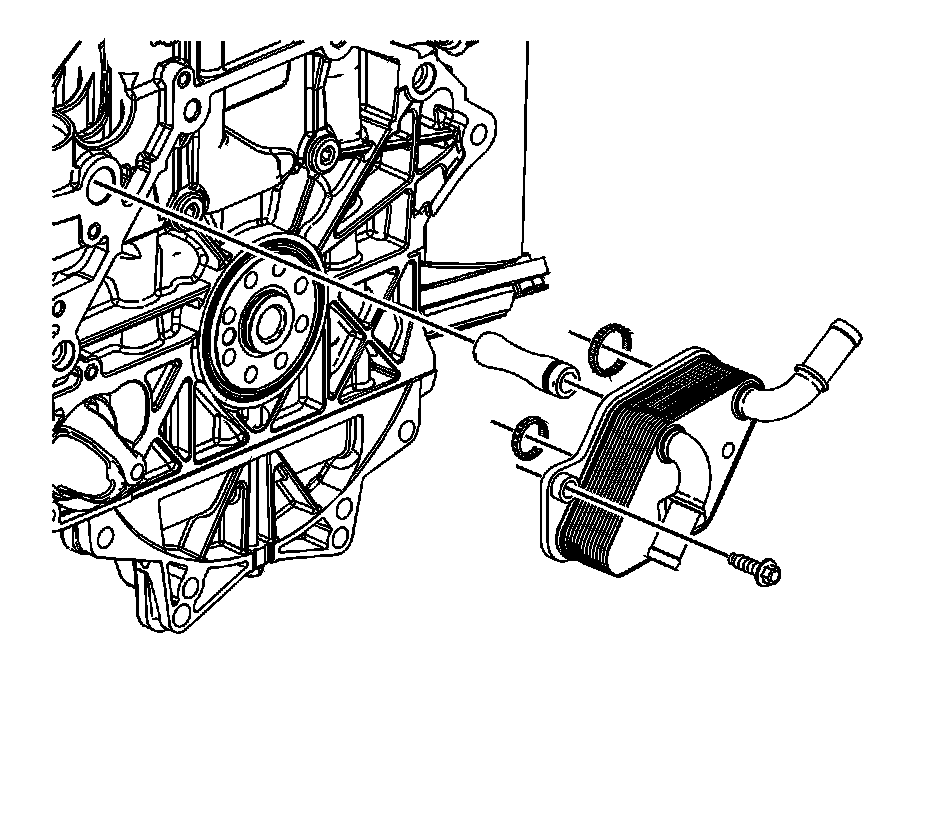

1. Install the oil cooler.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the oil cooler bolts.

Tighten the oil cooler bolts to 22 N.m (16 lb ft).
