Vent Hose Replacement

Vent Hose Replacement

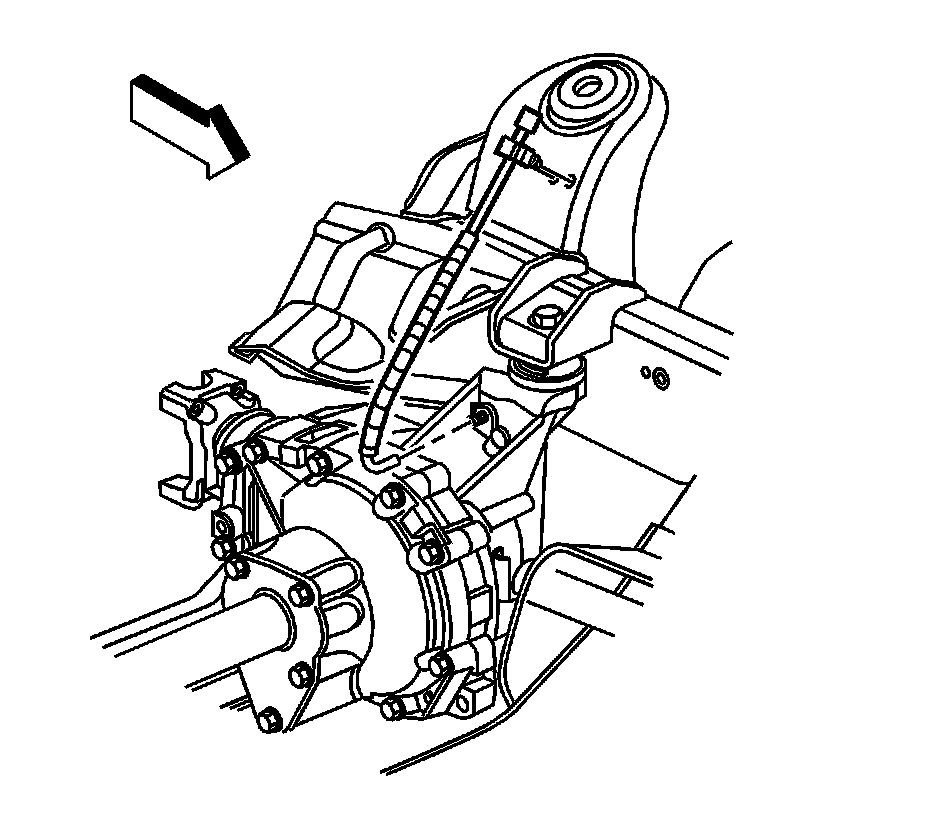

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .




2. Remove the vent hose from the frame.
3. Remove the vent hose from the front axle.



Installation Procedure


Important: When replacing the hose, do the following:


* Route the hose the same way as the original.

* Ensure that the hose is free of kinks.

* Route the hose away from sharp objects.







1. Install the vent hose to the front axle.
2. Install the vent hose to the frame.
3. Lower the vehicle.
