Transmission Holding Fixture Installation



Transmission Holding Fixture Installation

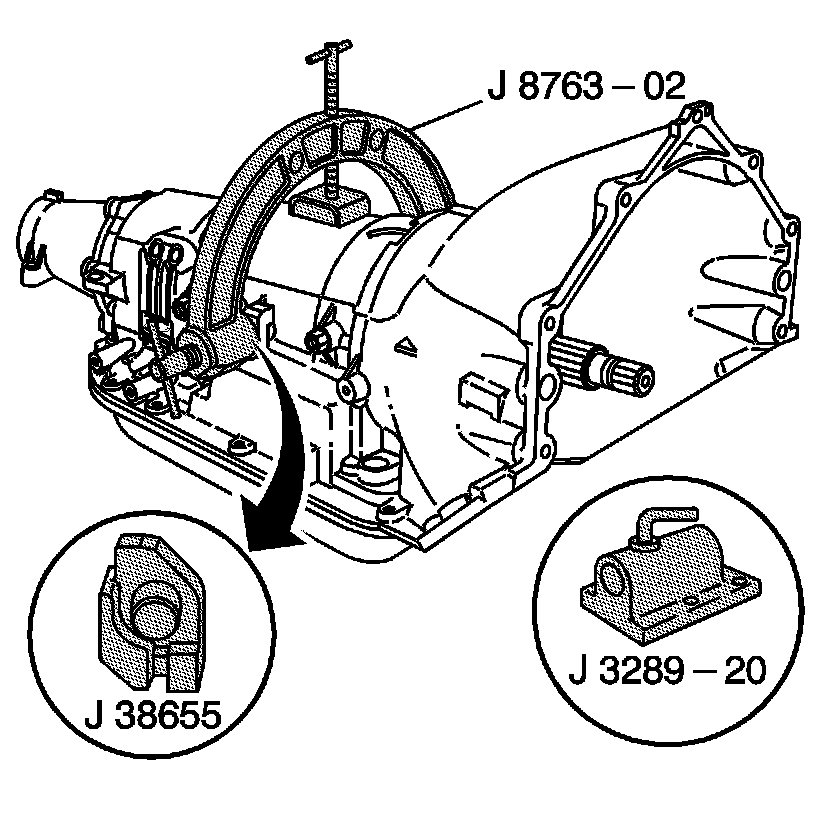

Tools Required
* J 3289-20 Holding Fixture Base Assembly
* J 8763-02 Holding Fixture
* J 38655 Holding Fixture Adapter






1. Install the J 8763-02 and the J 38655 onto the transmission assembly.
2. Install the transmission assembly and the J 8763-02 into the J 3289-20 .
3. Lock the J 8763-02 in place with the locking pin.
