Output Shaft Seal Removal

Output Shaft Seal Removal


Tools Required
* J 6125-1B Slide Hammer
* J 23129 Universal Seal Remover






1. Remove the output shaft seal retainer ring (14).
2. Inspect the output shaft seal retainer ring (14) for damage.

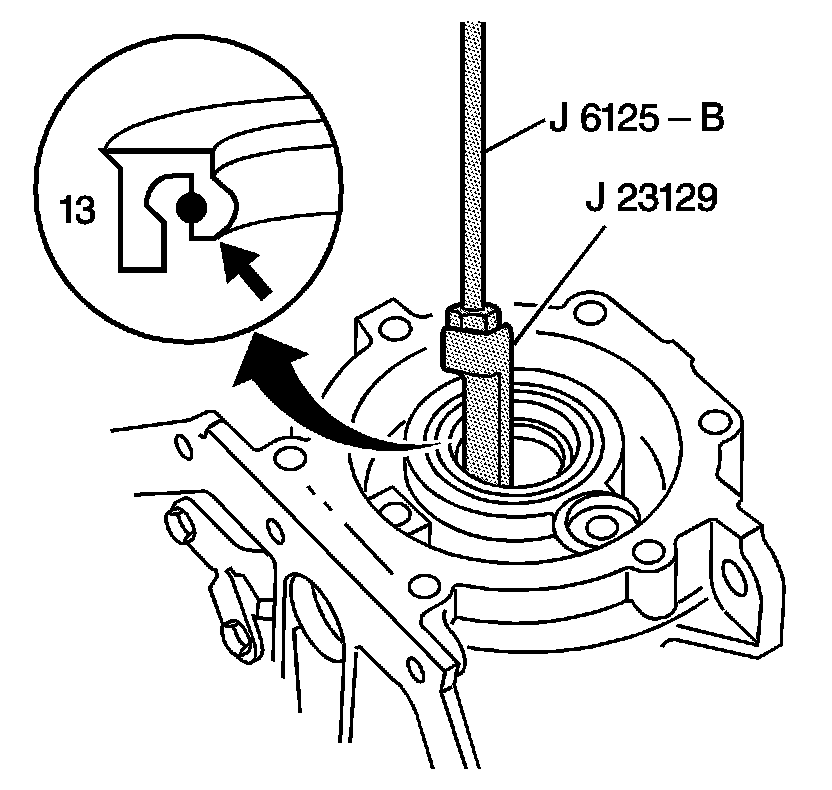

3. Using the J 23129 and the J 6125-1B , remove the output shaft seal (13).
