Wiring Harness Installation



Wiring Harness Installation

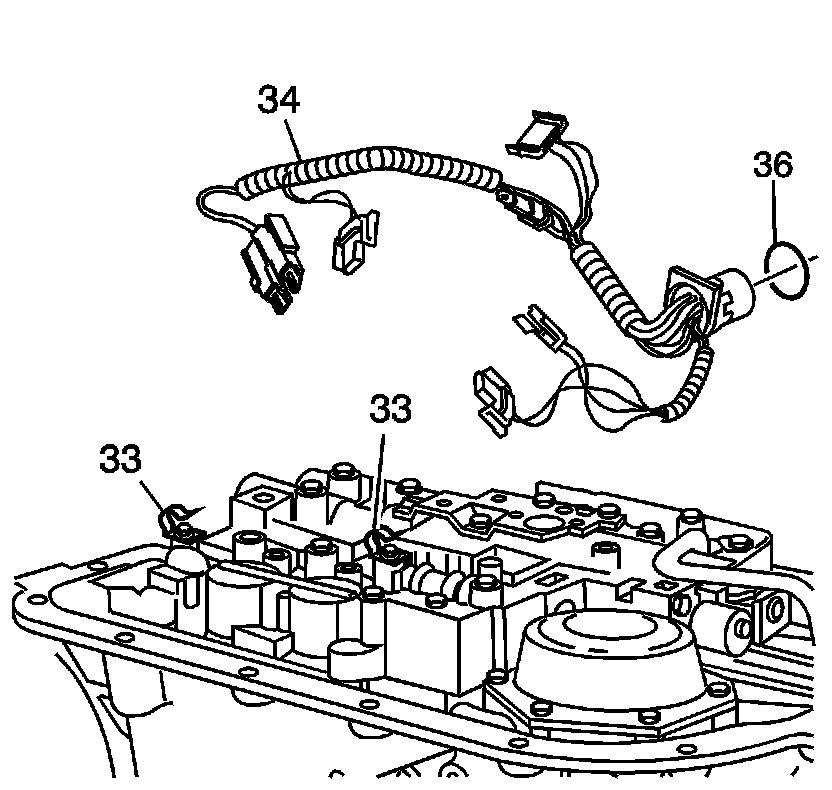

1. Install a NEW pass thru O-ring seal (36).
2. Install the wiring harness assembly (34) into the case.
3. Connect the wiring harness assembly (34) to the electrical components.
4. Place the wiring harness assembly (34) under the wiring harness clamps (33).
