Holding Fixture Removal



Holding Fixture Removal


Tools Required
* J 3289-20 Holding Fixture Base Assembly
* J 8763-02 Transmission Holding Fixture
* J 38655 Holding Fixture Adapter

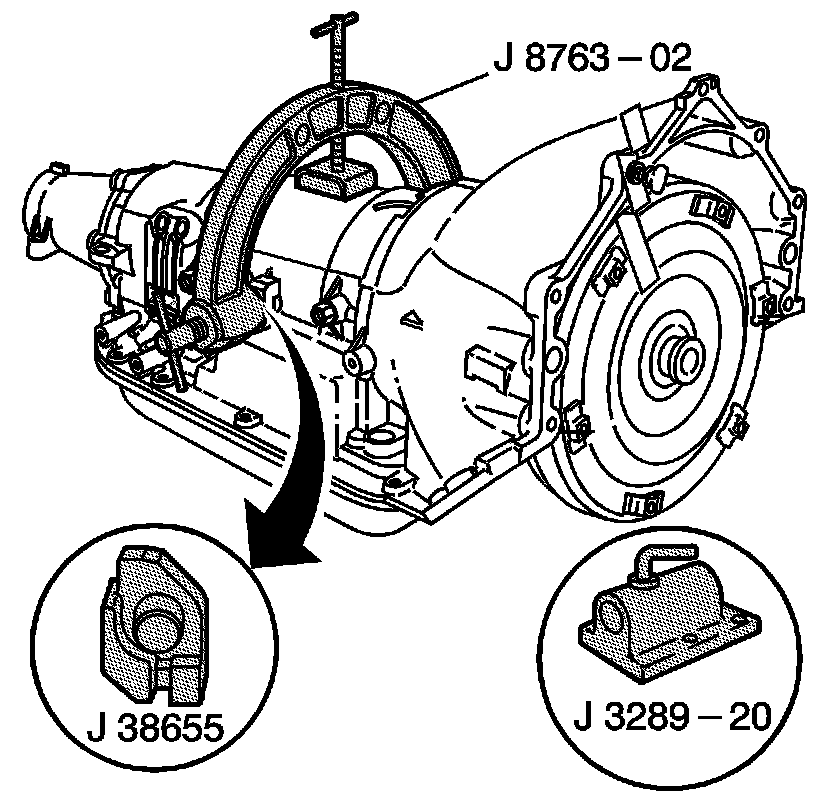

1. Remove the transmission assembly and the J 8763-02 from the J 3289-20 .
2. Remove the J 8763-02 and the J 38655 .
