2-4 Servo Cover and Assembly Removal

2-4 Servo Cover and Assembly Removal

Tools Required

J 29714-A Servo Cover Depressor

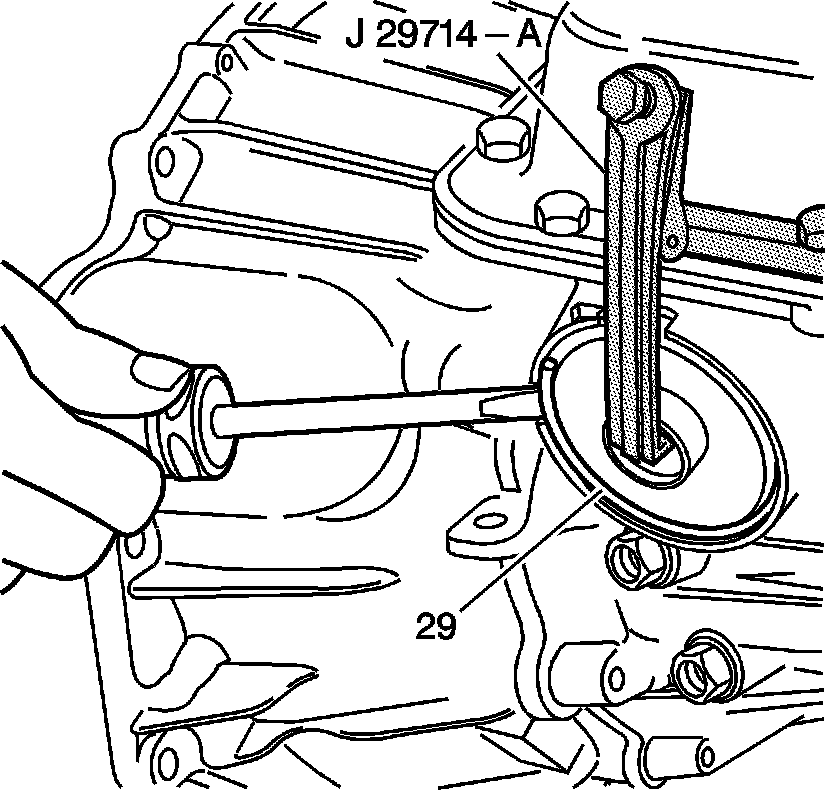

1. Install the J 29714-A .





Important: If cover does not move inwards with tool, use a block of wood or suitable material and lightly tap on cover using a hammer to free up cover in bore.


2. Tighten the J 29714-A bolt to compress the servo cover.




3. Remove the servo cover retaining ring (29) and the J 29714-A .

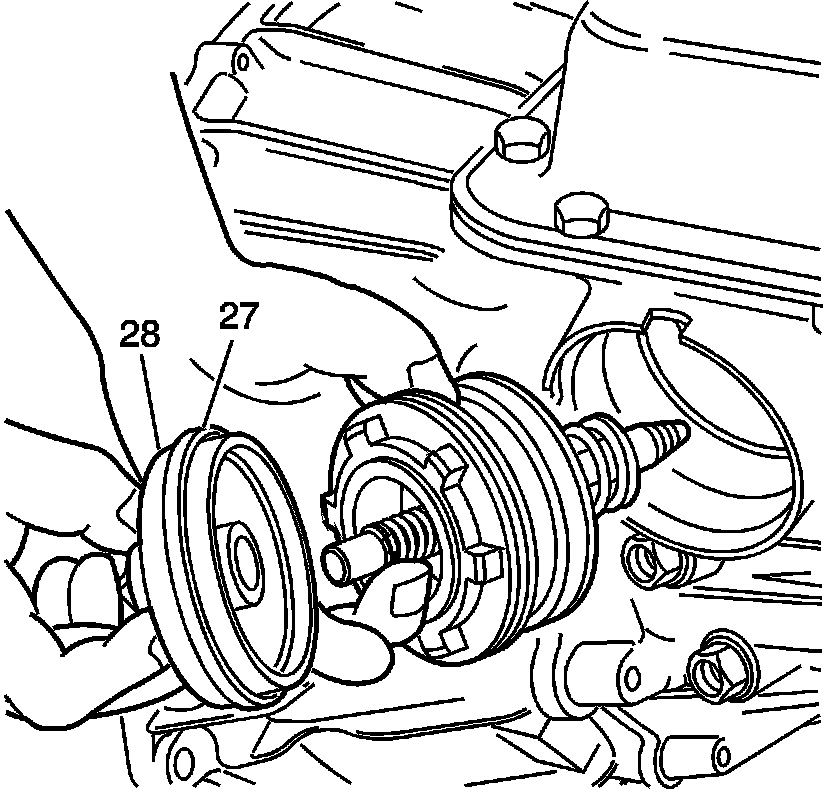

4. Remove the servo cover (28) and O-ring seal (27). If the servo cover seems to be hung up on the seal, cut and remove the O-ring seal before removing the cover.
5. Remove the 2-4 servo assembly.
