1-2 Accumulator Disassemble



1-2 Accumulator Disassemble

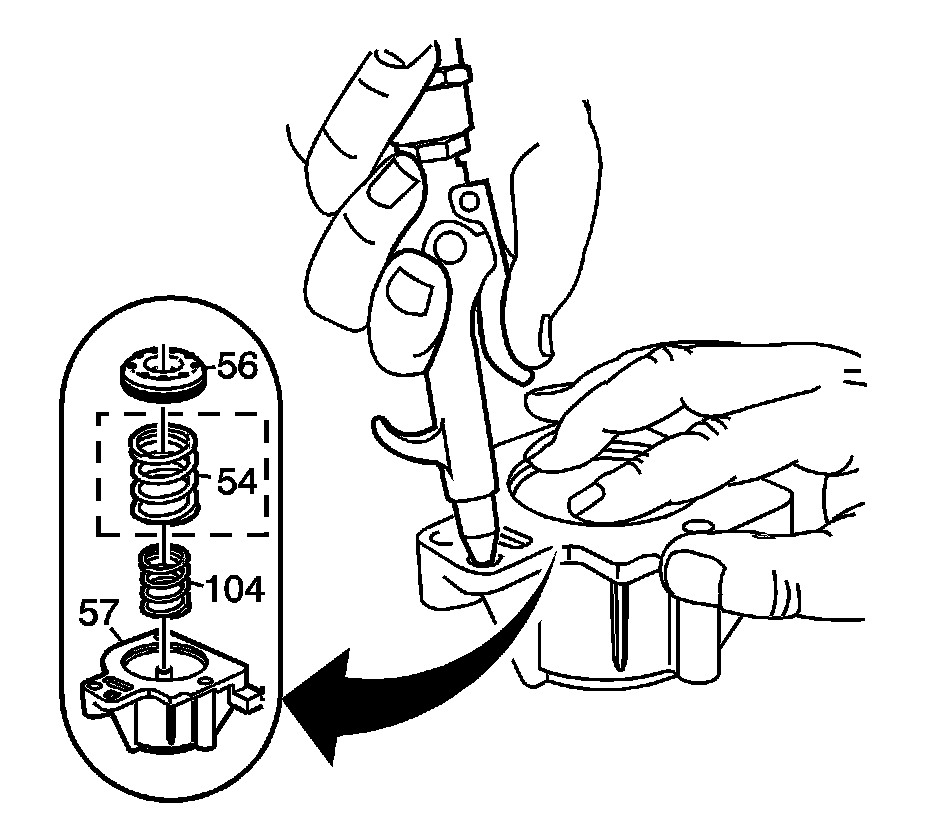

Important: Some models may not use an outer 1-2 accumulator spring (54).


1. Blow air into the 1-2 accumulator housing (57) to remove the 1-2 accumulator piston (56).
2. Remove the 1-2 inner (104) and outer (54) accumulator springs.
