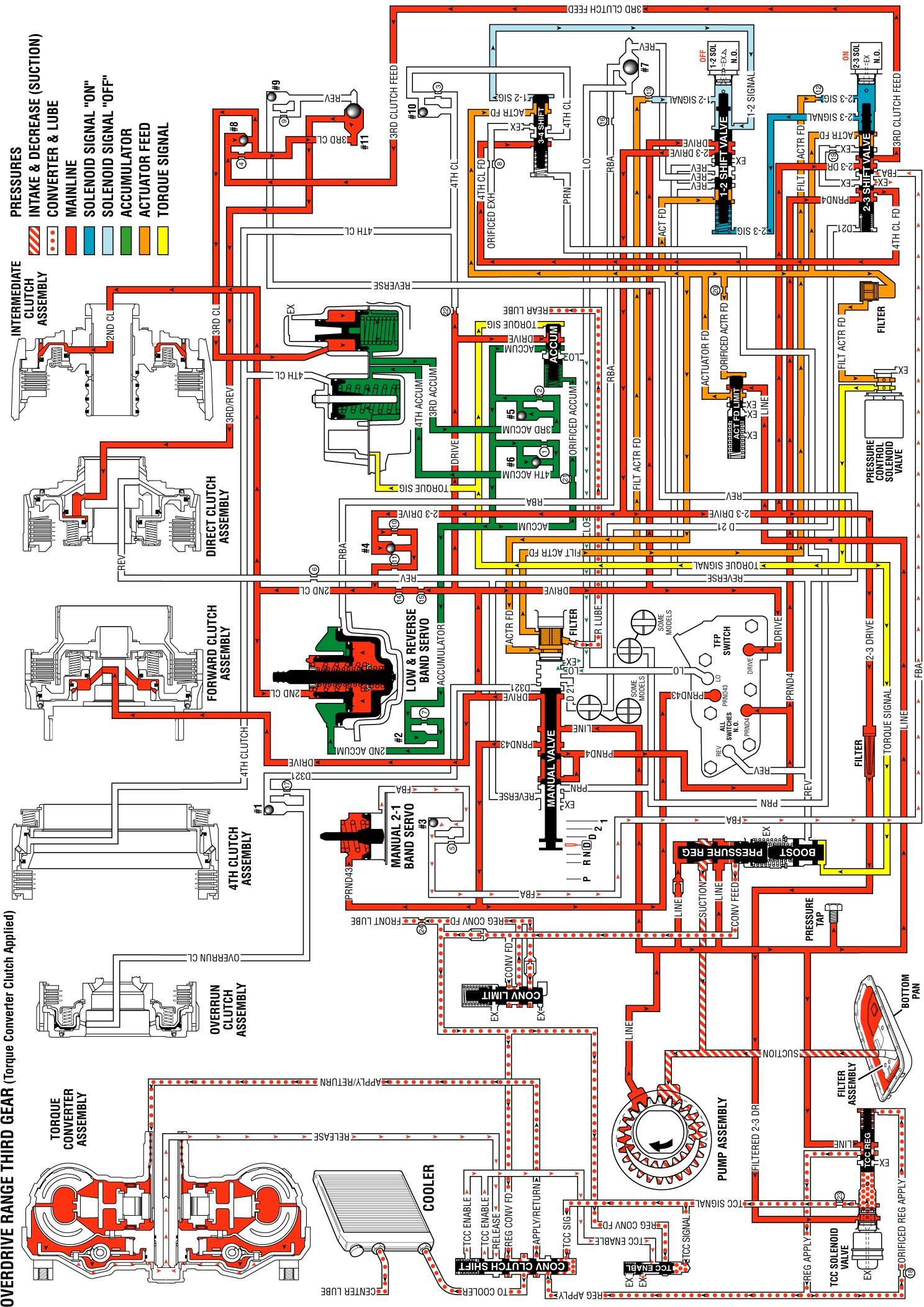

Overdrive Range, Third Gear - Torque Converter Clutch Applied



Overdrive Range, Third Gear - TCC Applied
