Vibration Analysis - Driveline



Vibration Analysis - Driveline

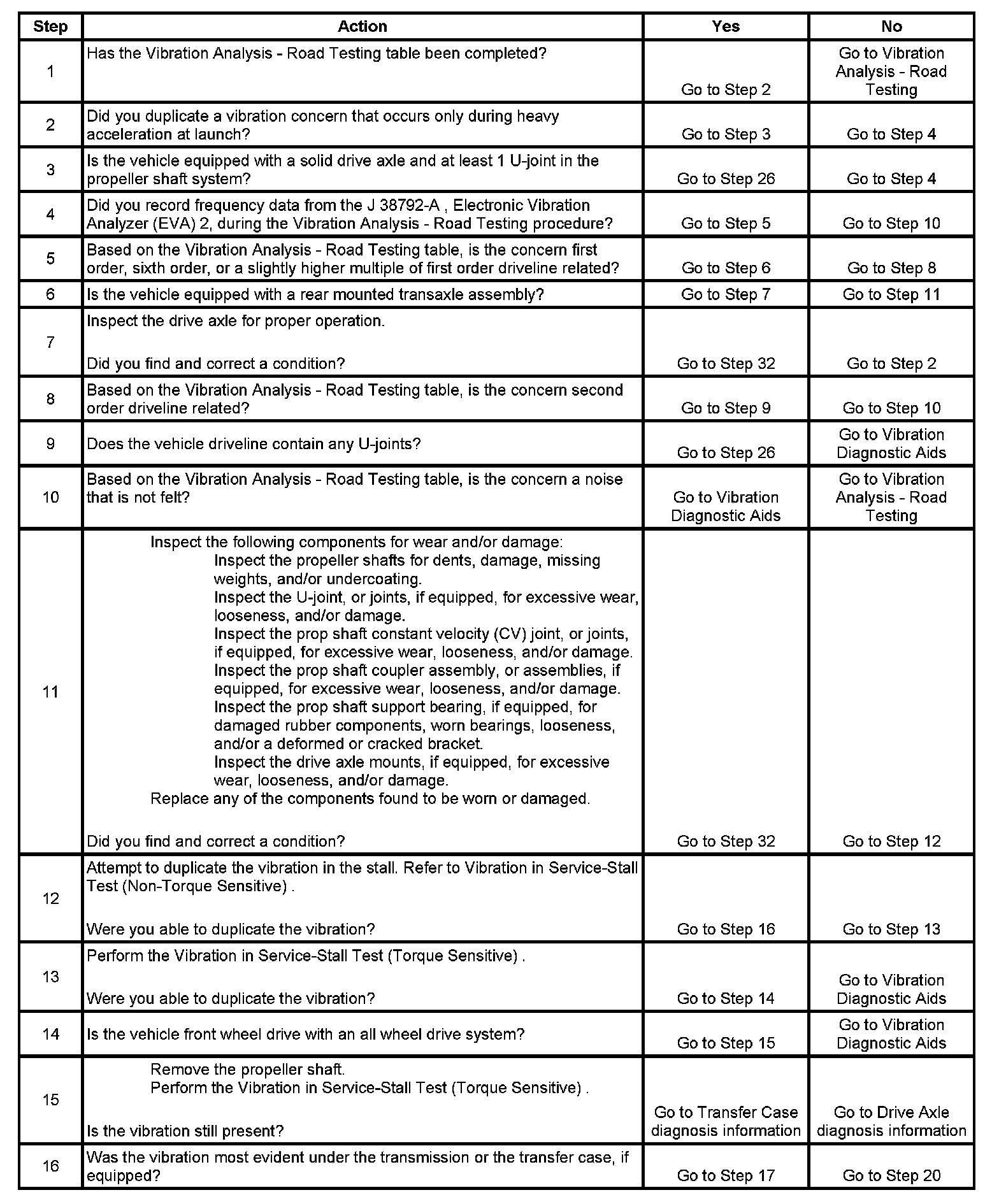

Step 1-16:

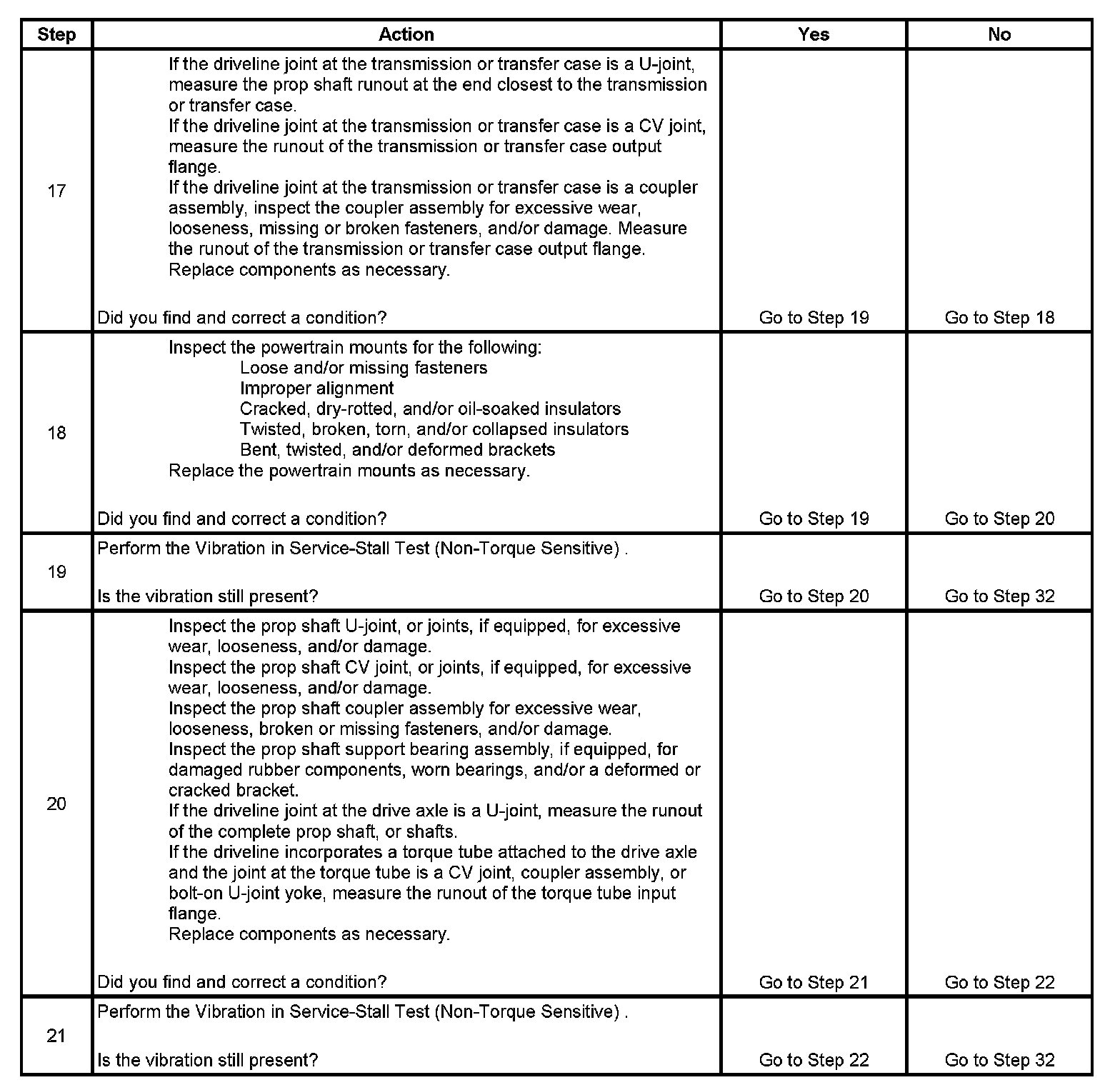

Step 17-21:

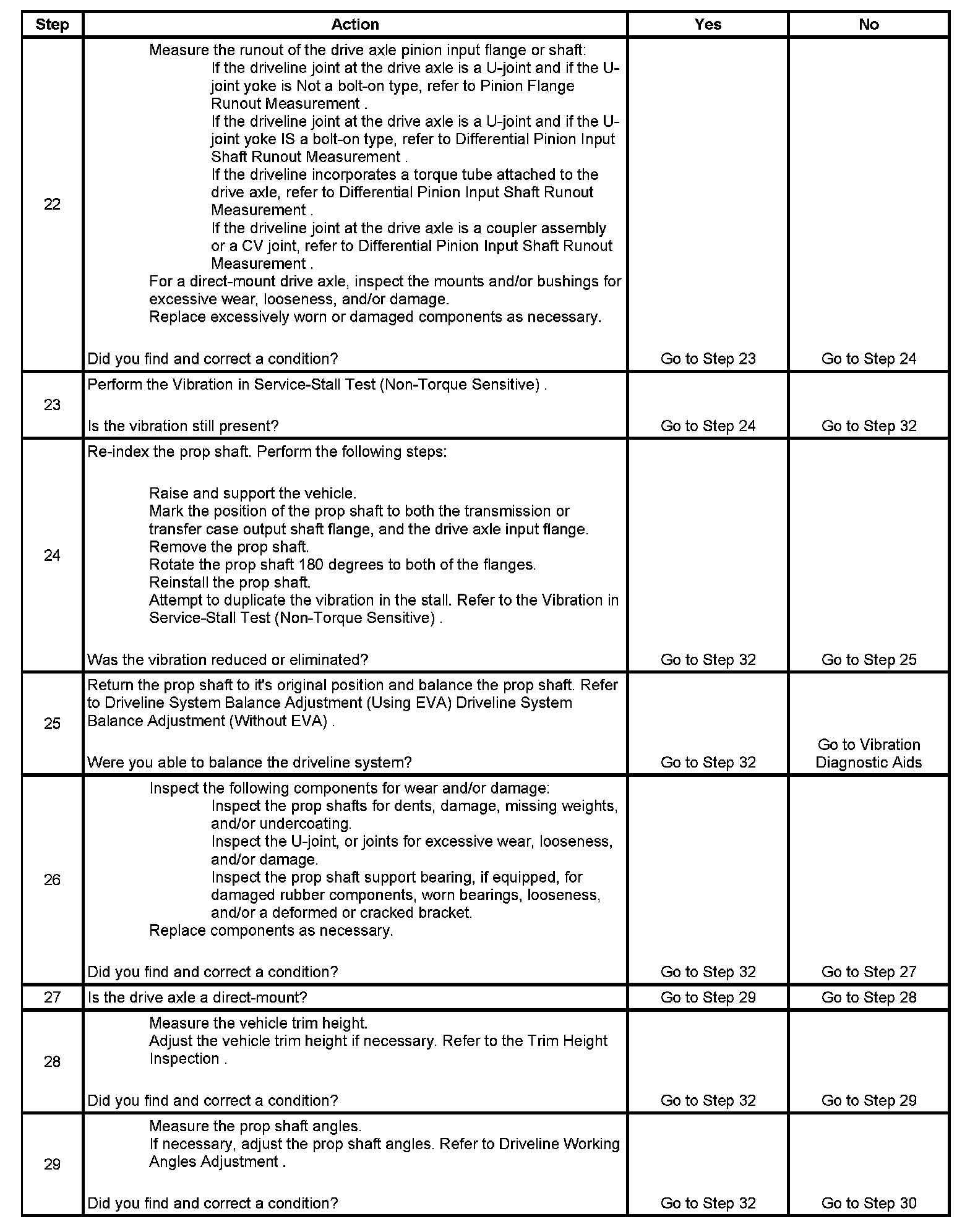

Step 22-29:





Step 30-32:
