Ignition Key Cannot Be Removed From the Ignition Lock Cylinder



Ignition Key Cannot Be Removed from the Ignition Lock Cylinder

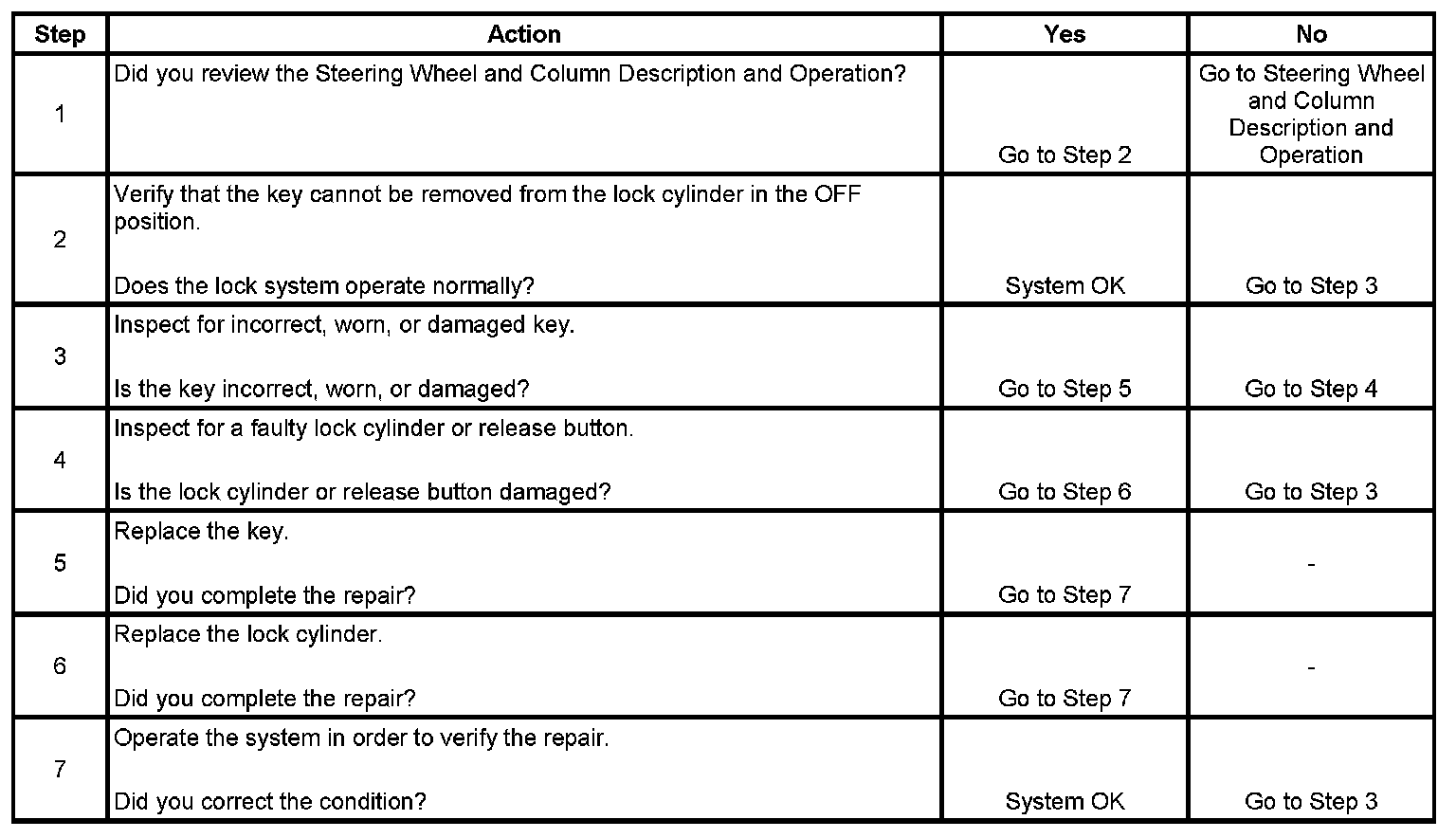

Step 1 - Step 7:
