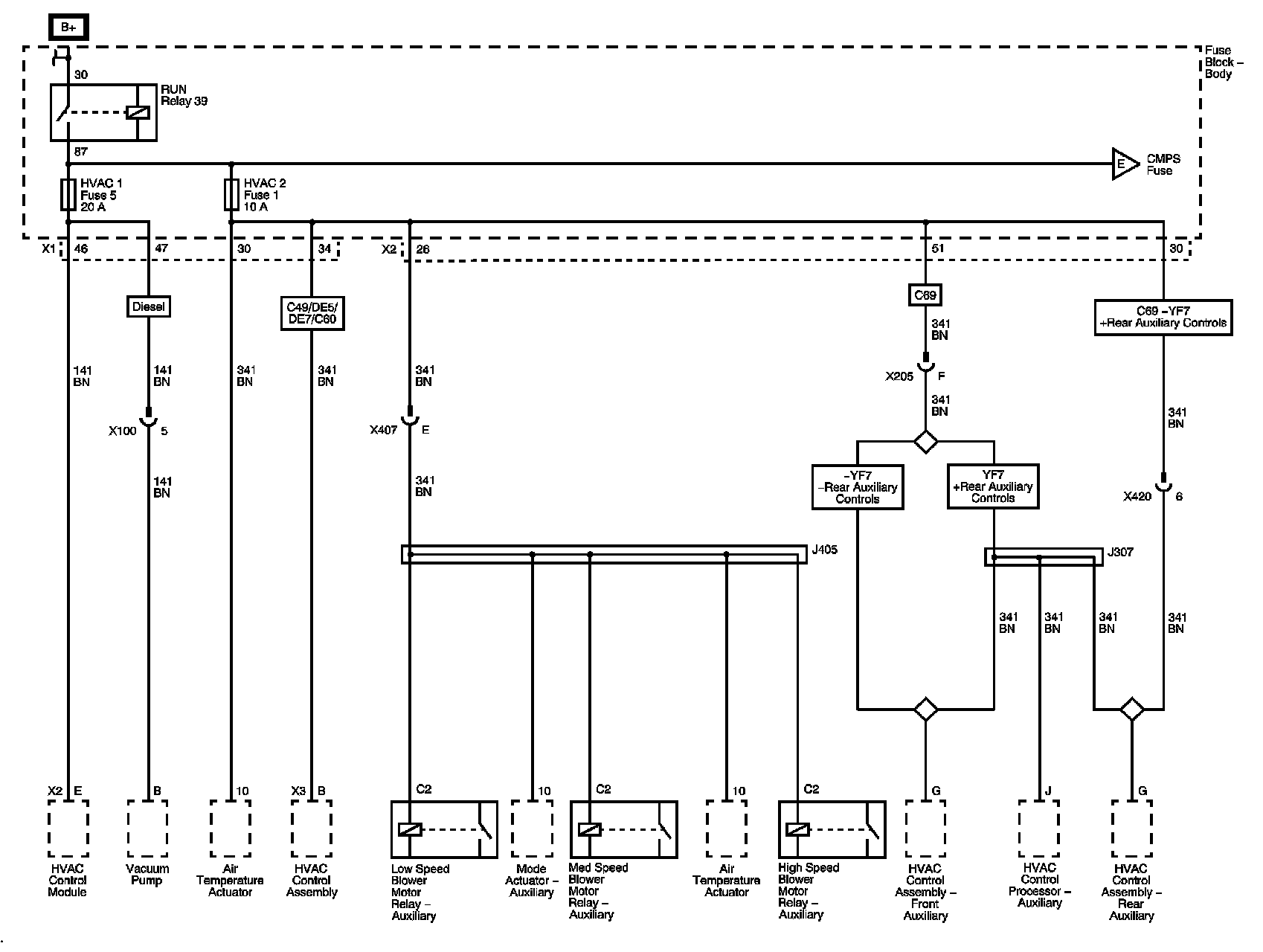

Power Distribution Diagram 18



Power Distribution Schematics

HVAC 1 Fuse

Power Distribution Diagram 18:






Next Diagram: Power Distribution Diagram 19

Previous Diagram: Power Distribution Diagram 17

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
