4L80-E/4L85-E - Automatic Transmission

Fluid Pan

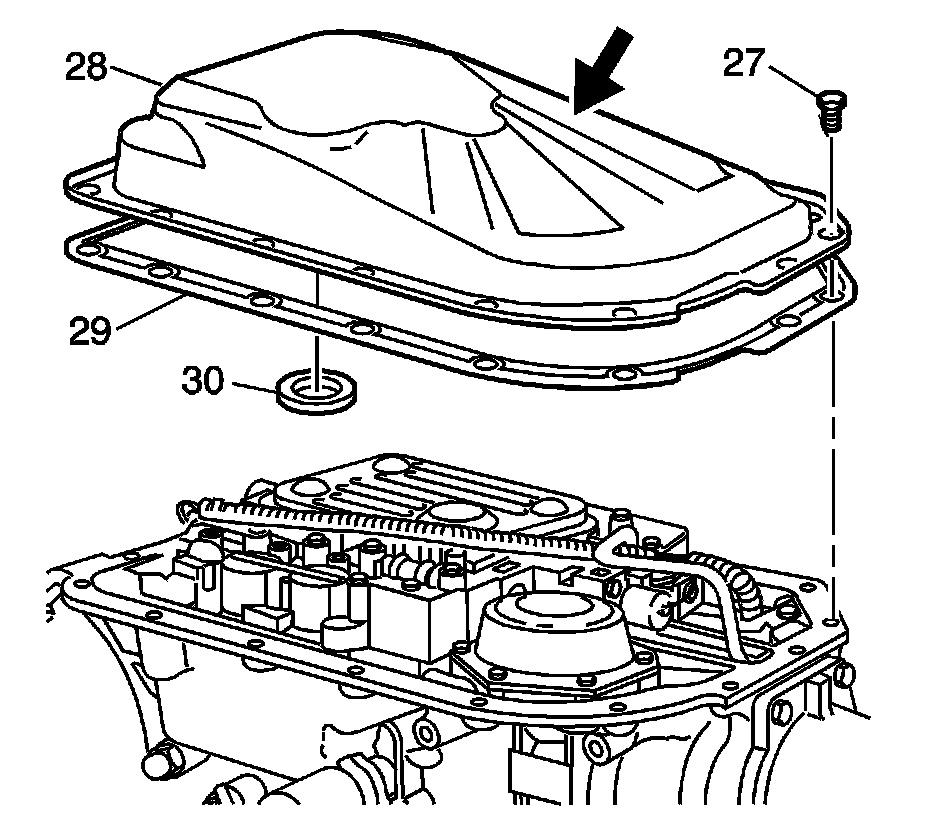

Install the transmission oil pan (28).
Install the transmission oil pan bolts (27).
Tighten the bolts to 24 N.m (18 lb ft).
