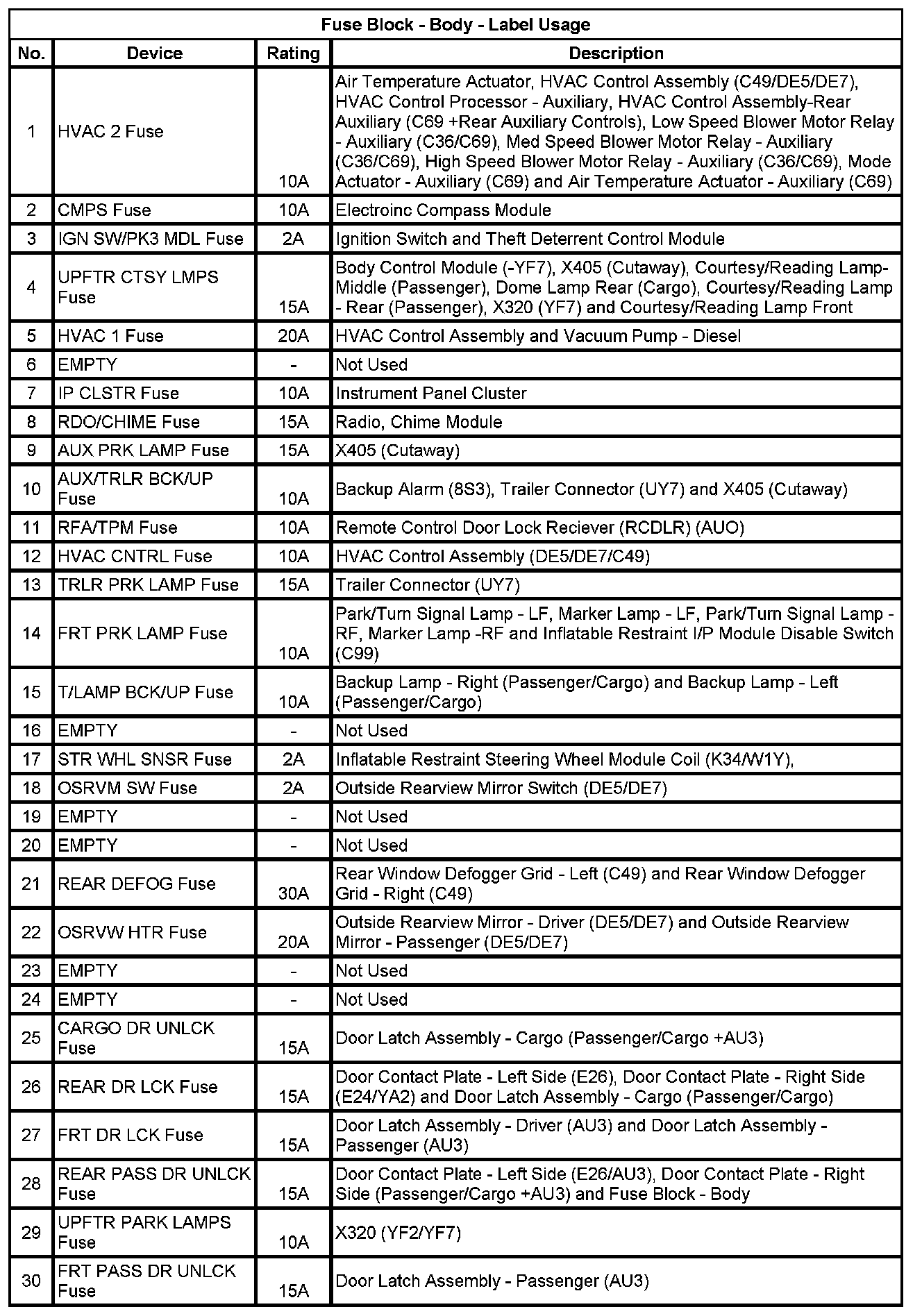

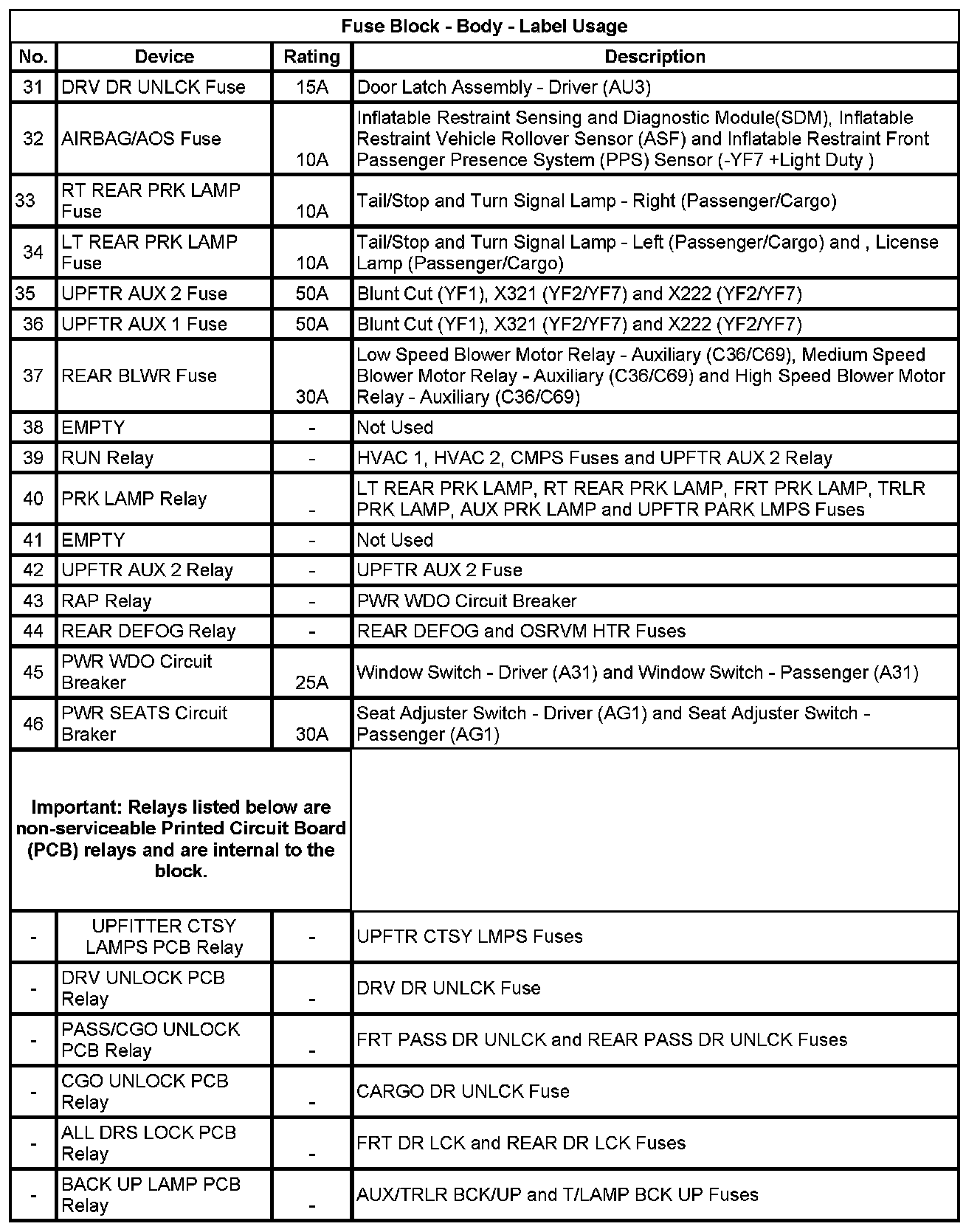

Home >> Chevrolet >> 2008 >> Express 1500 AWD V8-5.3L >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fuse >> Locations >> Electrical Center Identification Views >> Body Fuse Block
