Express 1500 AWD V8-5.3L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List
Master Electrical Component List

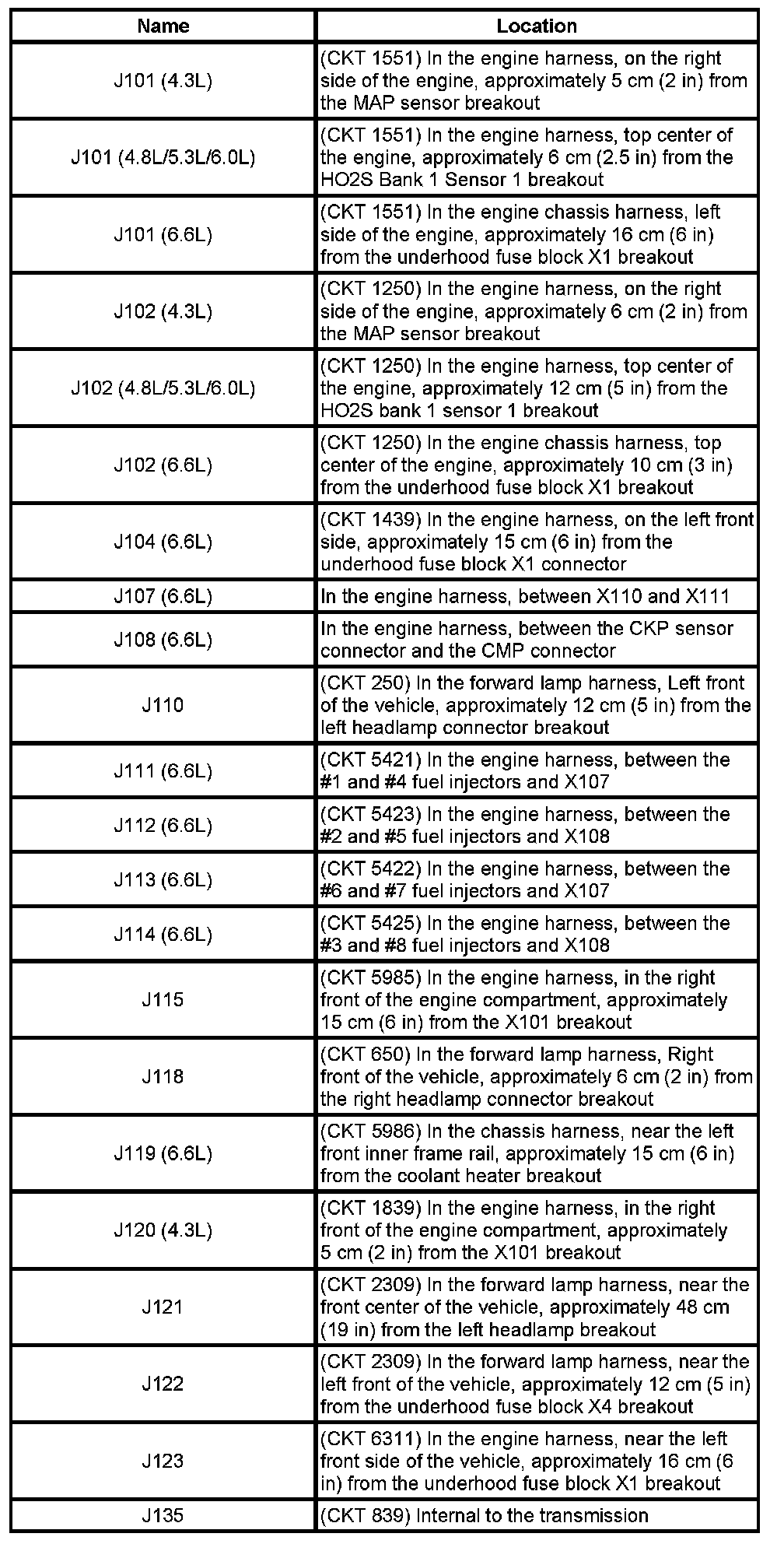

J101 - J135:

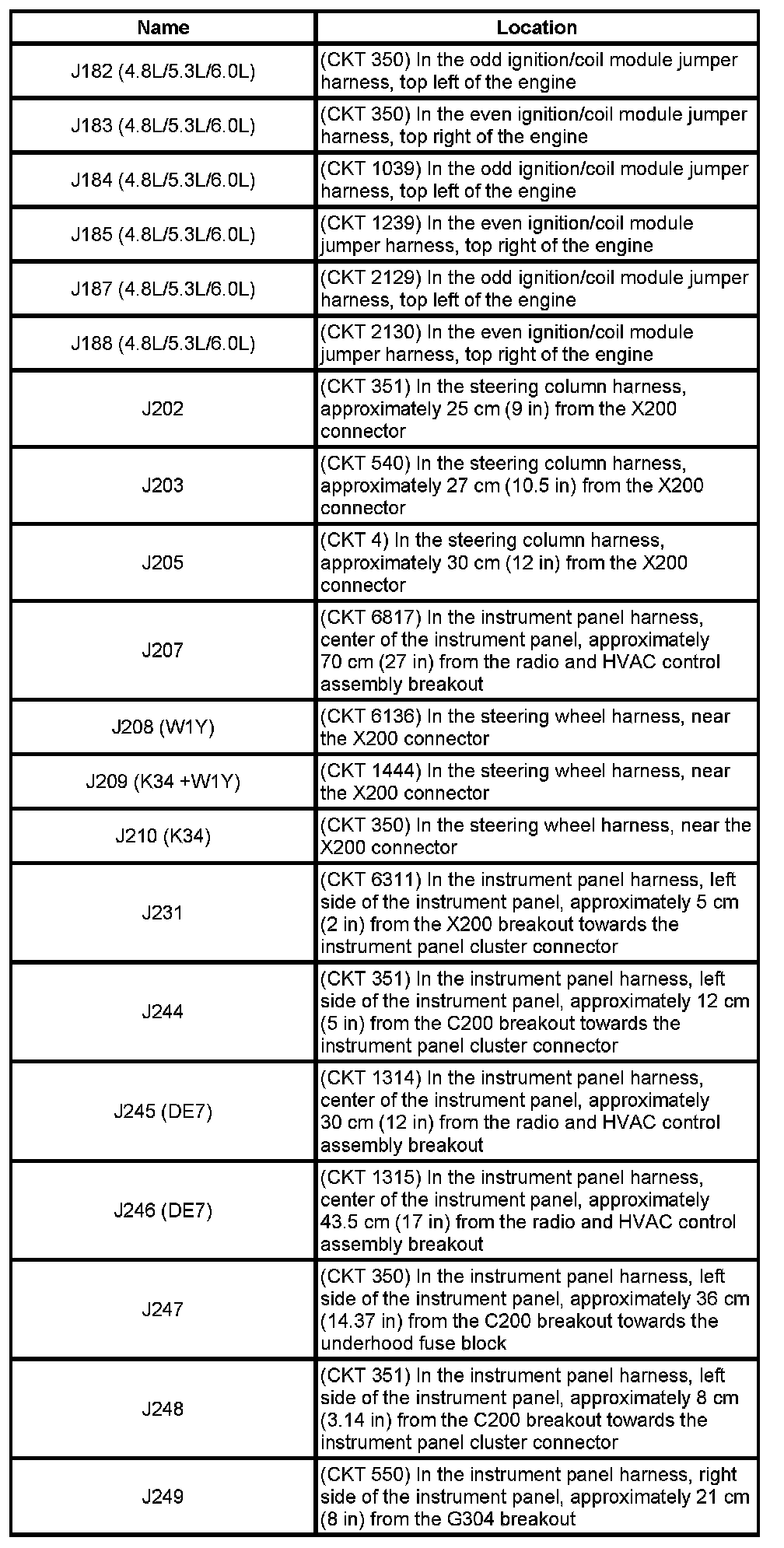

J182 - J249:

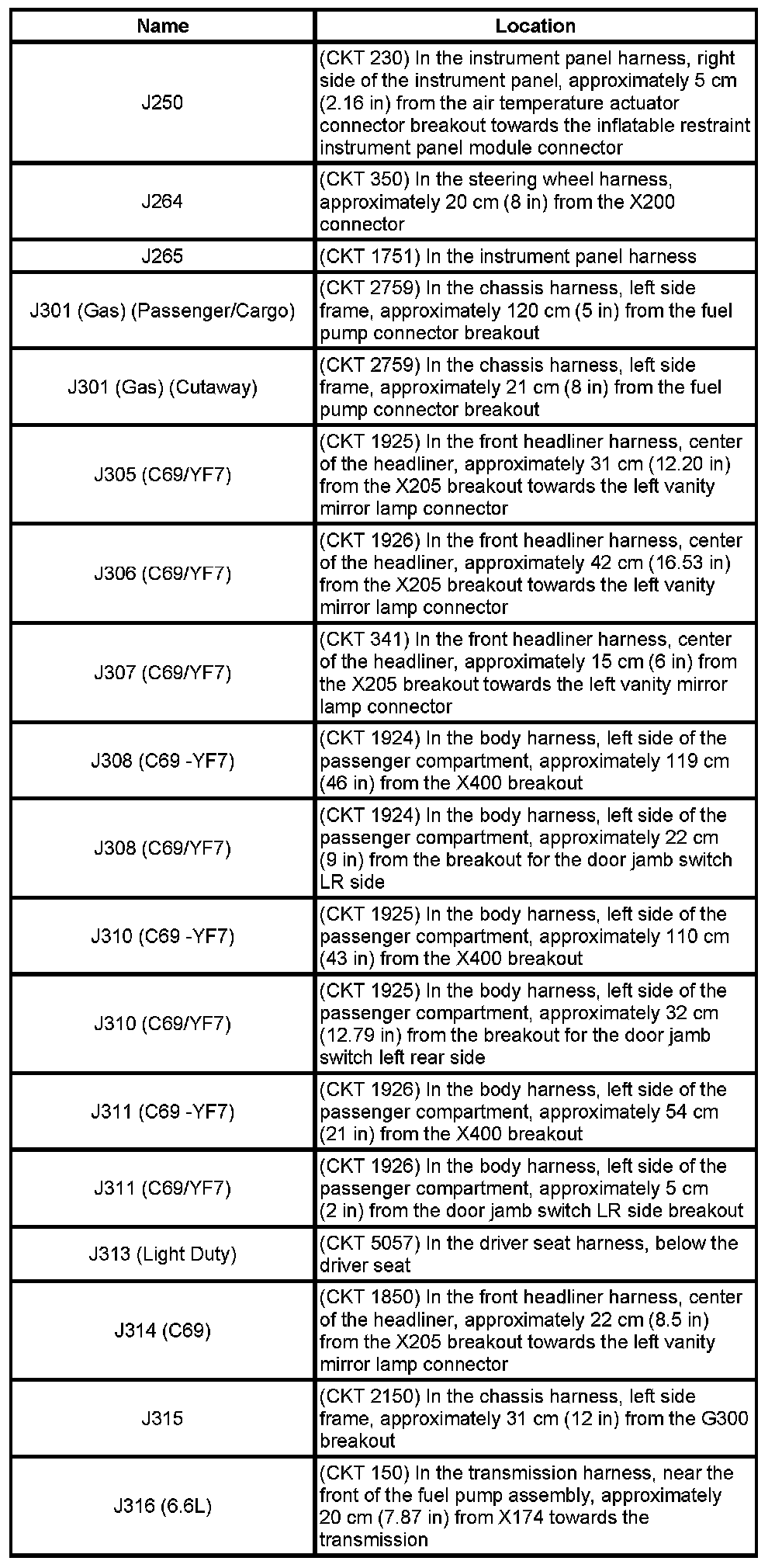

J250 - J316:

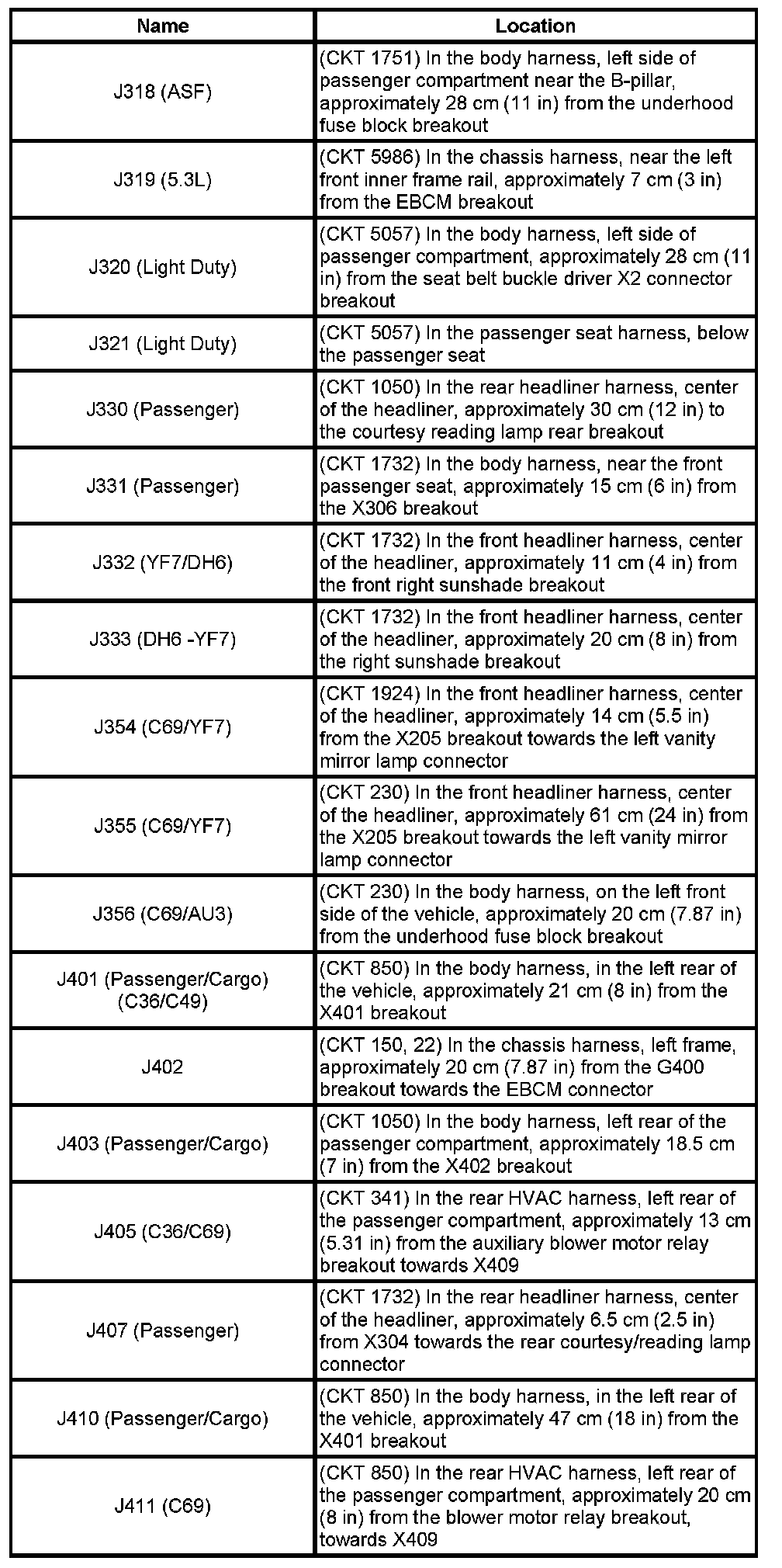

J316 - J411:

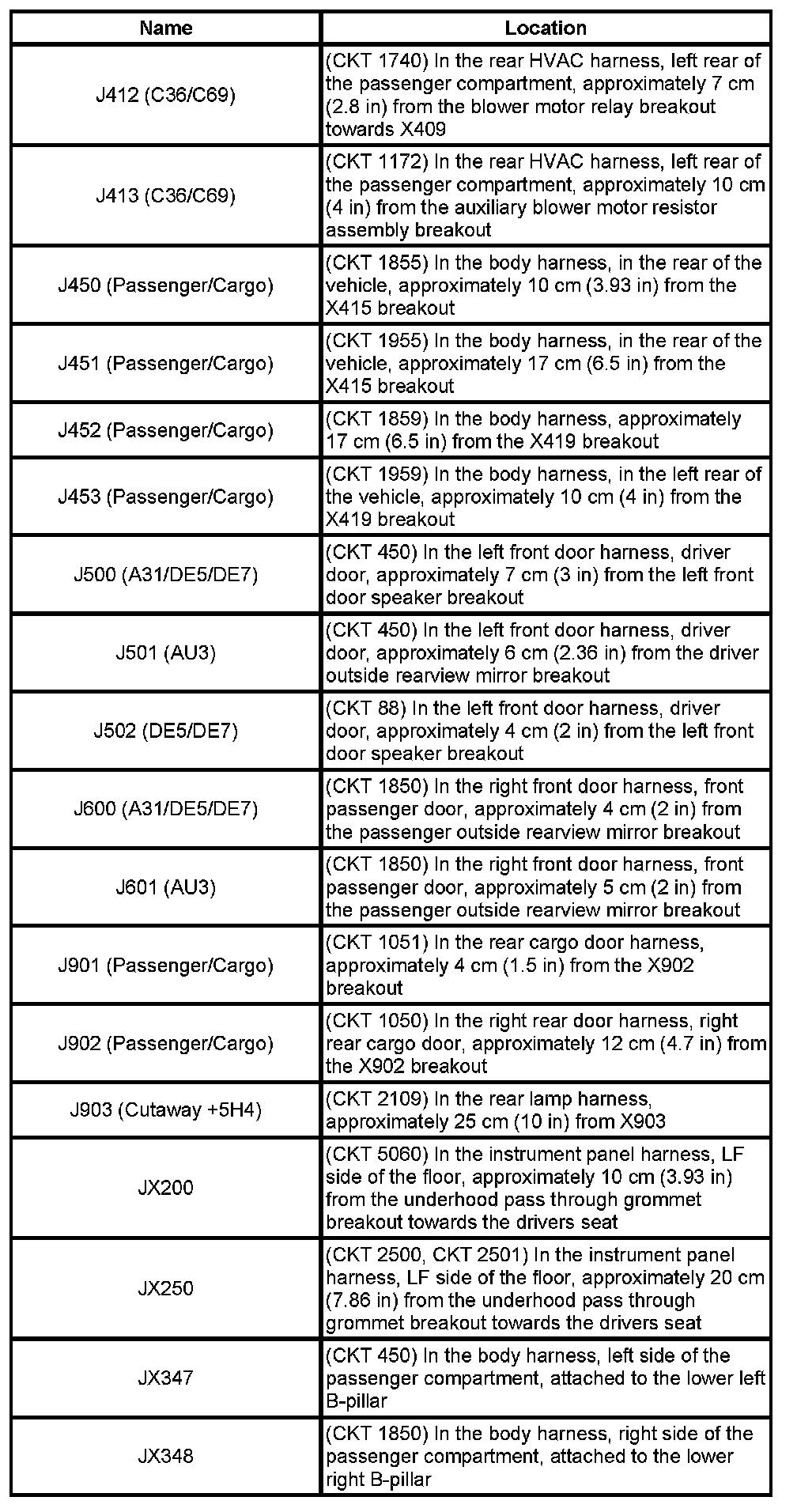

J412 - JX348:
