Instrument Panel Harness - Front Engine Compartment

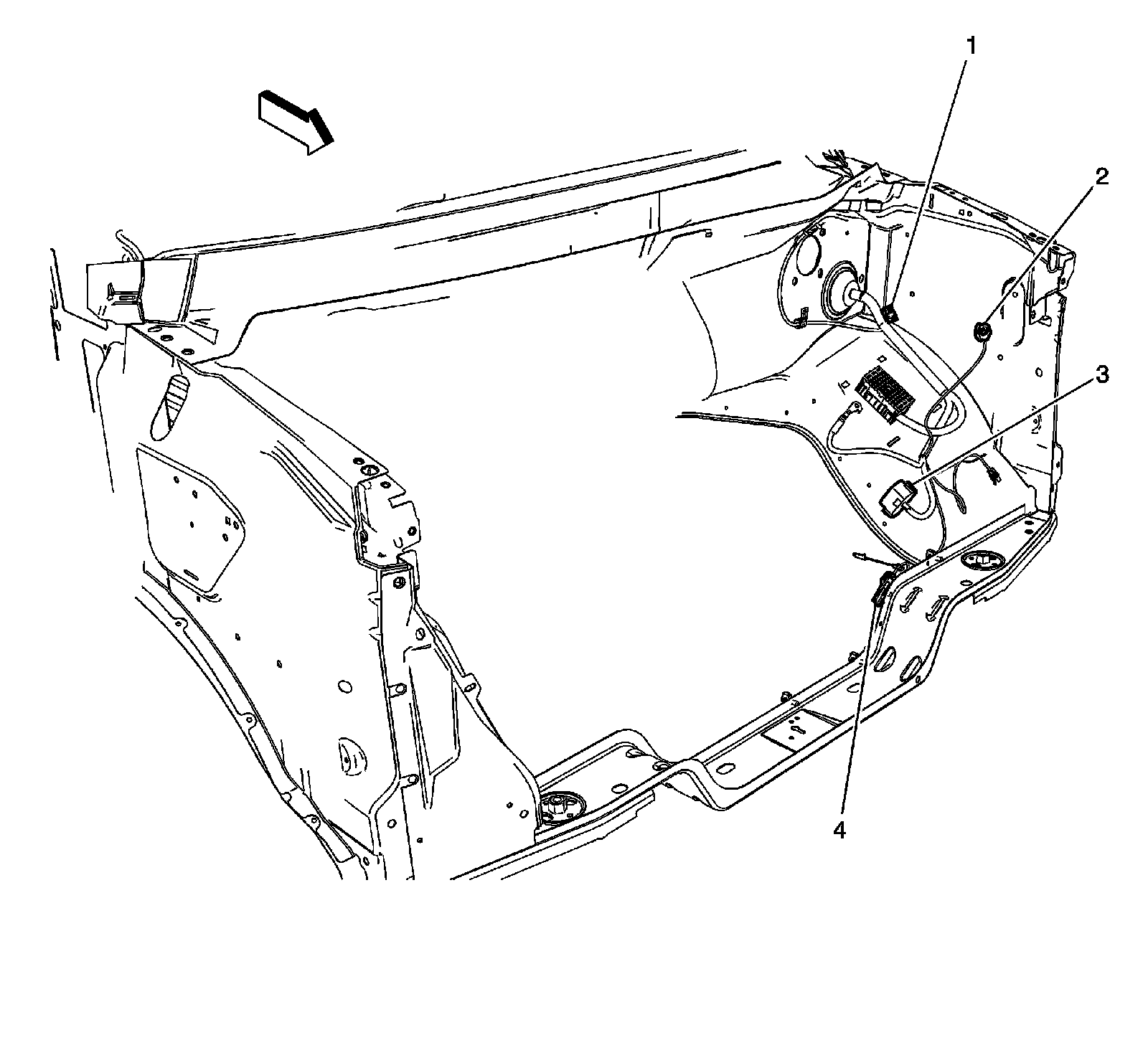

Harness Routing Views

Instrument Panel Harness - Front Engine Compartment




1 - X141
2 - X201 (UFA)
3 - X100
4 - X104
