Headliner Views



Harness Routing Views

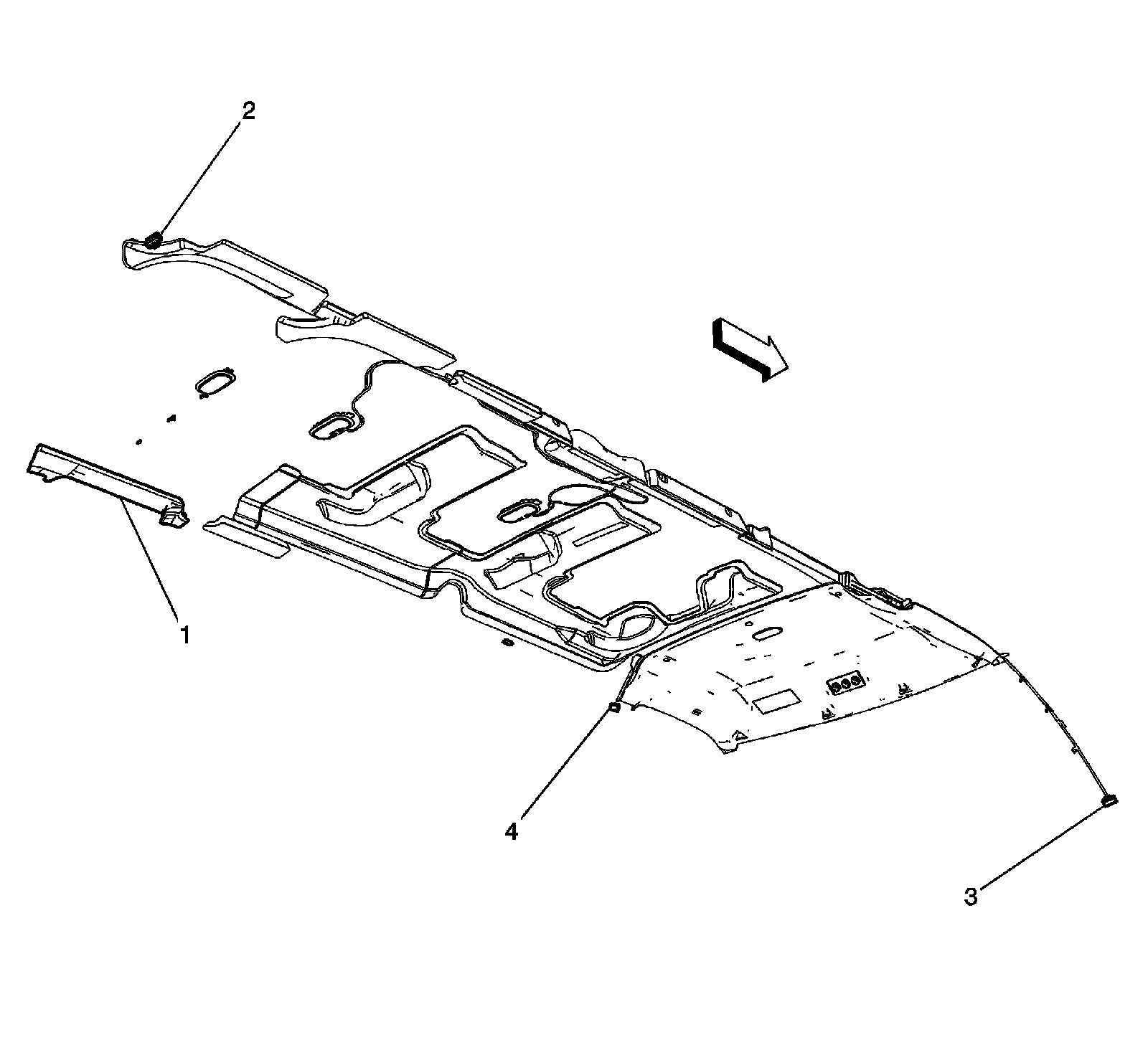

Front/Rear Headliner




1 - X417 (Cargo - YF7)
2 - X420
3 - X205
4 - X304 (C69/Rear Aux Controls - YF7)
