Chevrolet
>>
2008
>>
Express 1500 AWD V8-5.3L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List
Master Electrical Component List

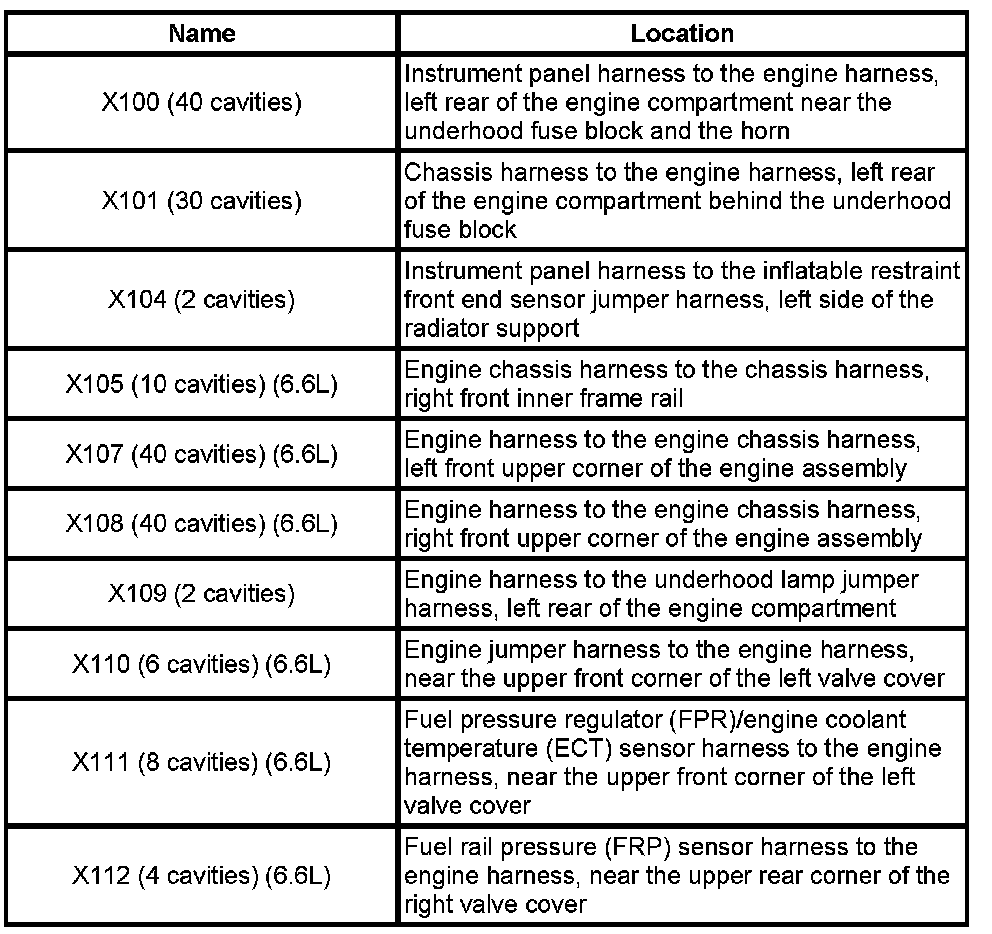

X100 - X112:

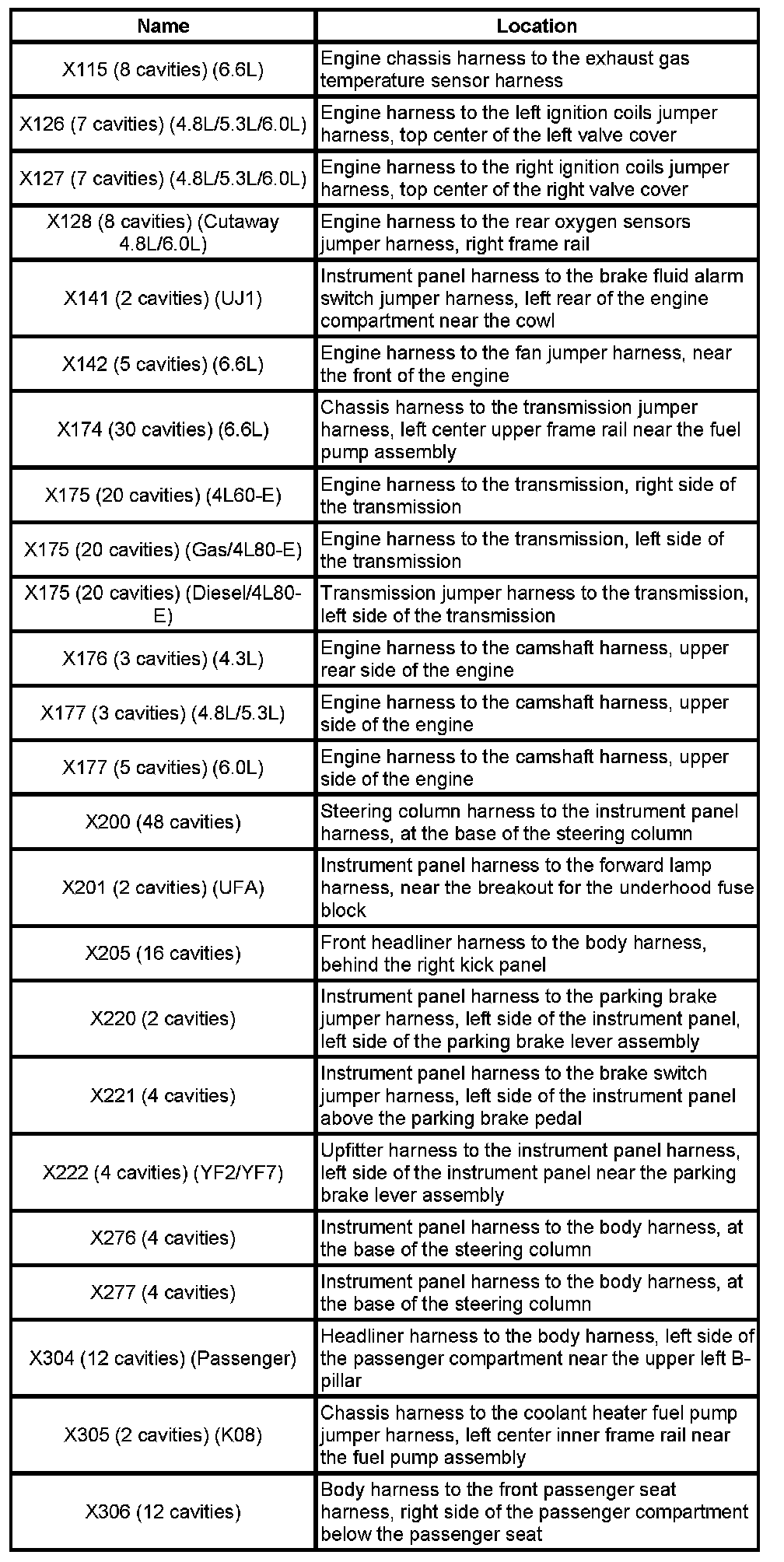

X115 - X306:

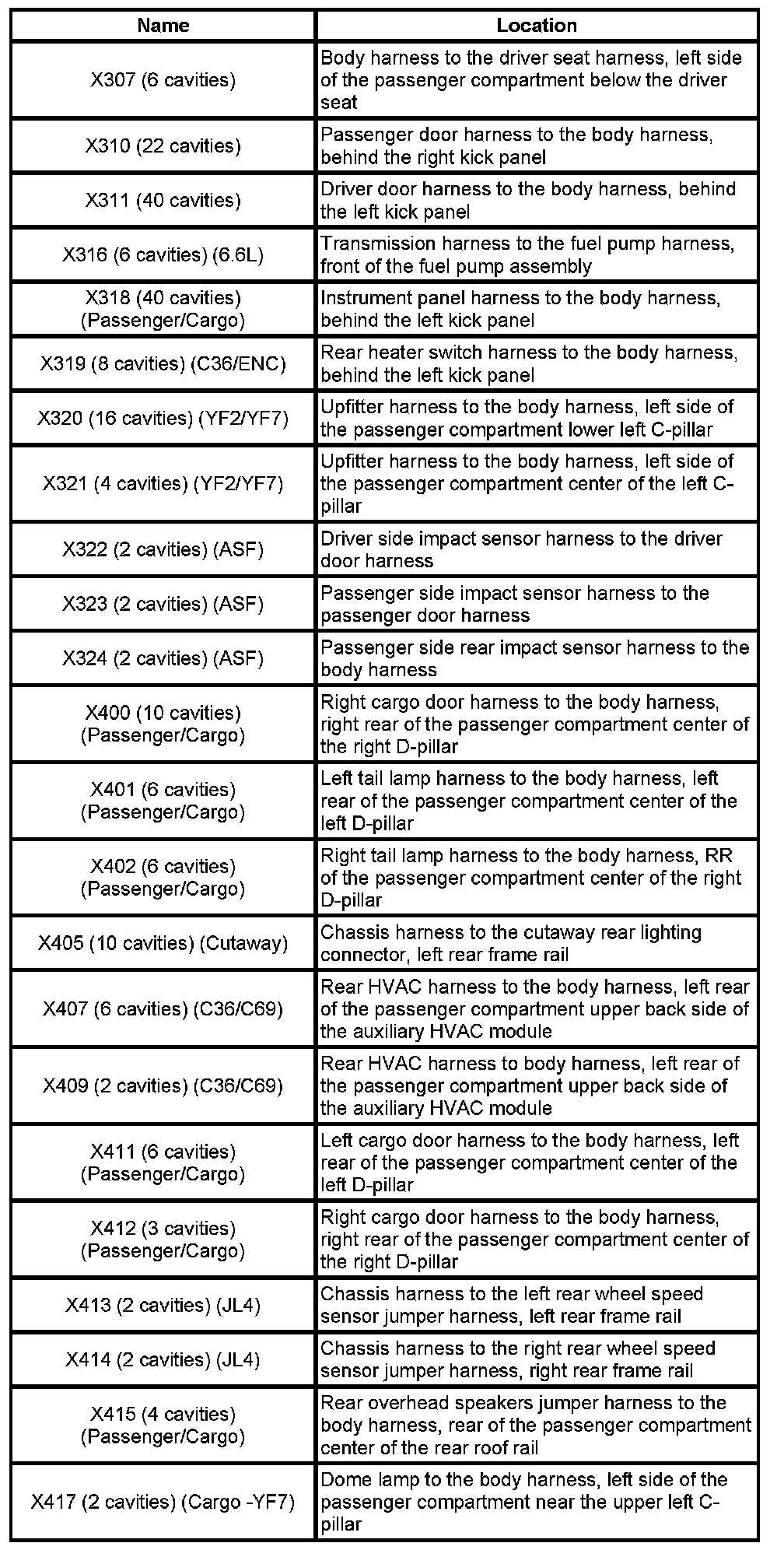

X307 - X417:
X419 - X902:
