Interior Lights Diagram 3

Interior Lights Schematics

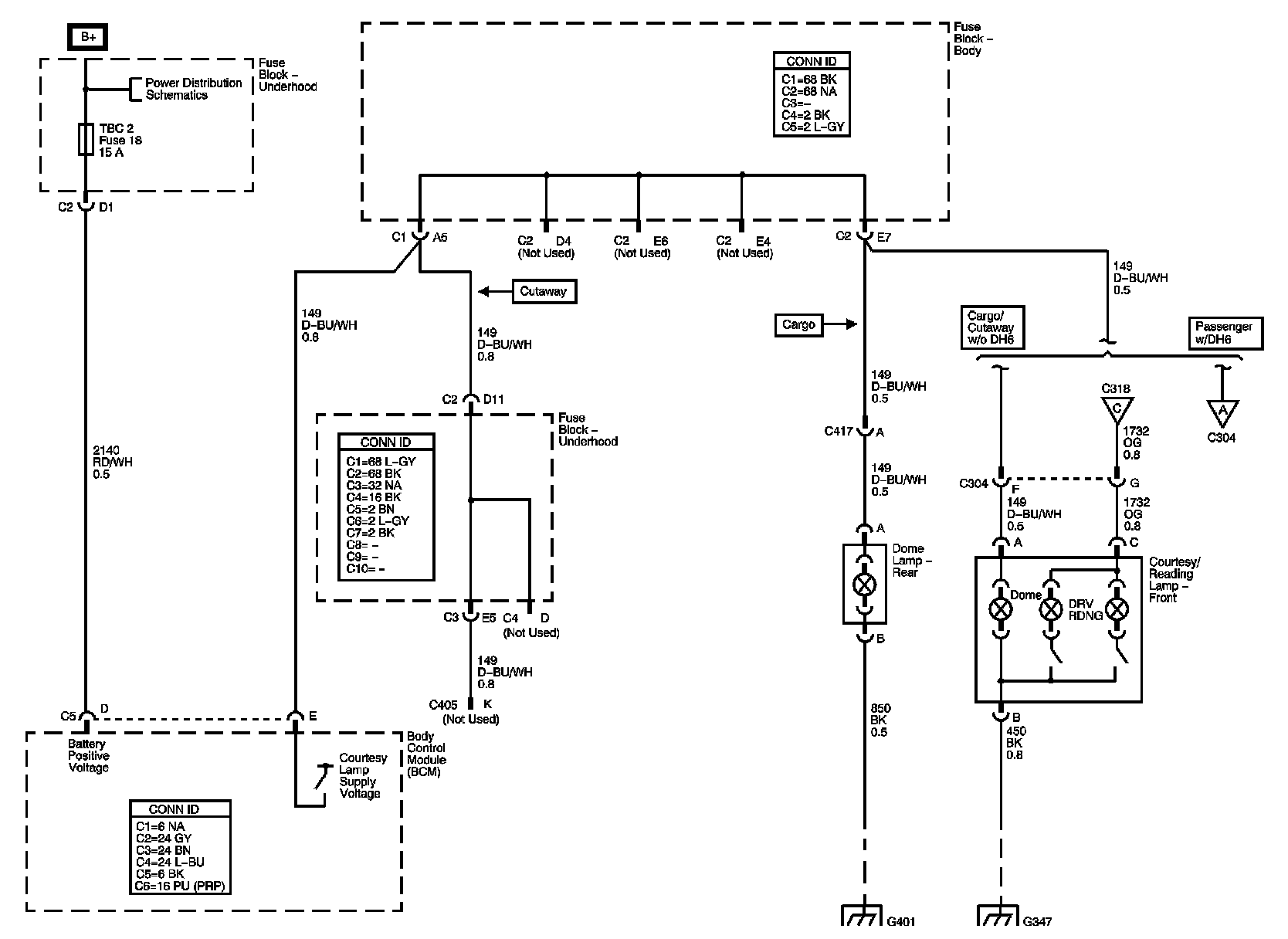

Courtesy Lamps 1 of 2 -YF7

Interior Lights Diagram 3:

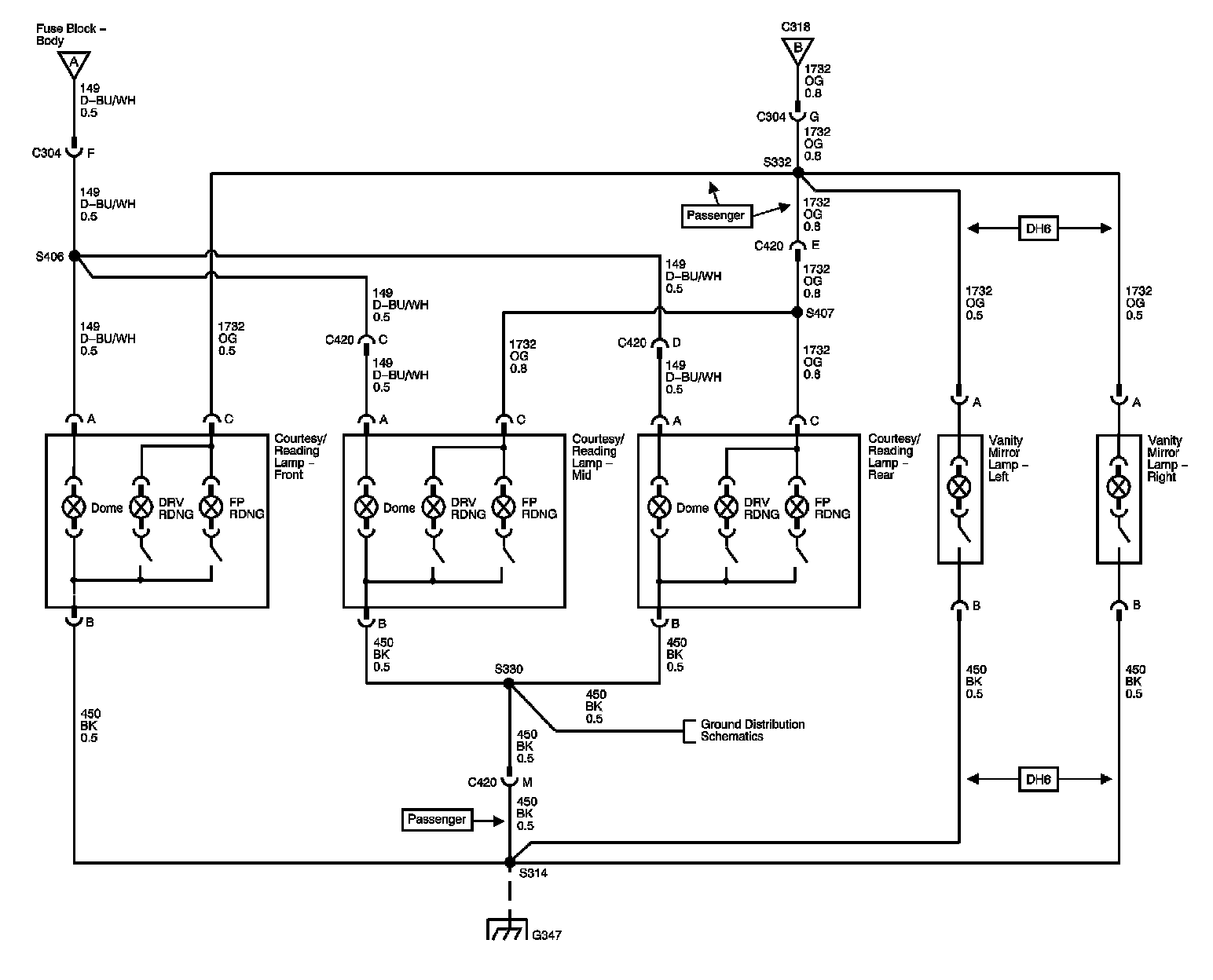

Courtesy Lamps 2 of 2 -YF7






Next Diagram: Interior Lights Diagram 4

Previous Diagram: Interior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
