Radiator Cooling Fan: Service and Repair

Fan Replacement

Removal Procedure

1. If a fan assembly fails, inspect the hub and the drive components. A fan assembly may fail due to an imbalance in the hub. This type of failure may not be the fault of the blades.

Notice: If a fan blade is bent or damaged, do not repair and use the damaged part. Replace a bent or damaged fan assembly with a new fan assembly. Using a fan with a different diameter, pitch, number of blades, or type of blade material may effect the cooling efficiency, performance and engine noise level.

2. Remove the fan clutch assembly. Refer to Fan Clutch Replacement (Service and Repair) .

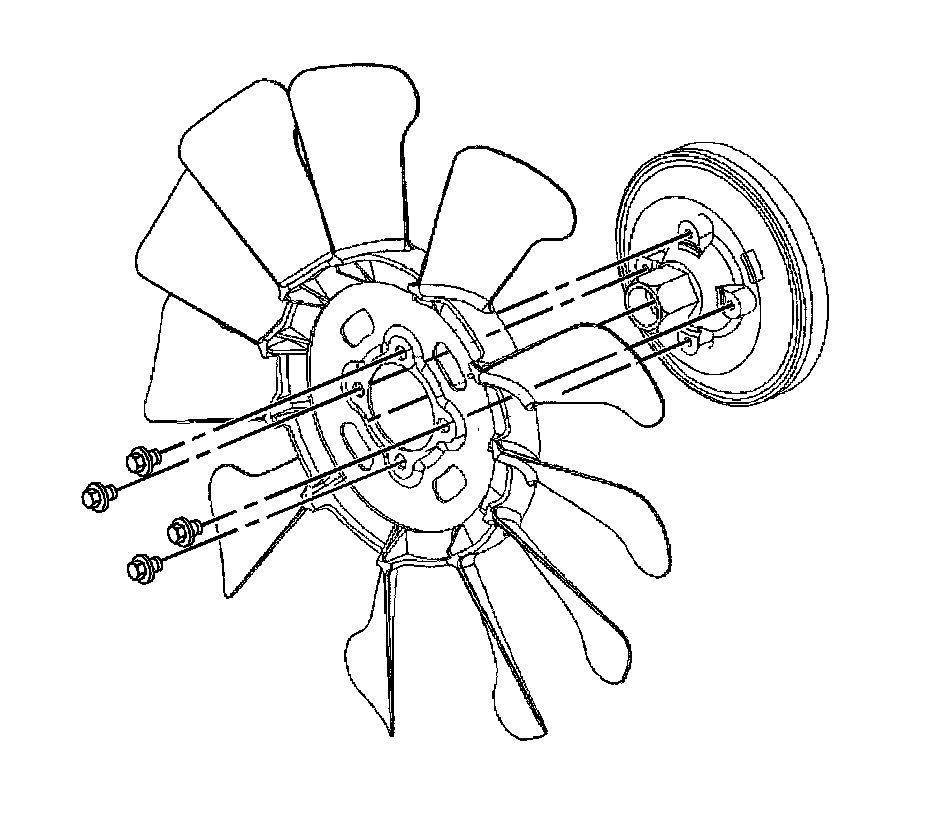

3. Remove the fan to fan clutch retaining bolts.
4. Remove the fan from the fan clutch.



Installation Procedure





1. Install the fan to the fan clutch.

Notice: Refer to Fastener Notice .

2. Install the fan to fan clutch retaining bolts.

Tighten the bolts to 23 N.m (17 lb ft).

3. Install the fan clutch assembly. Refer to Fan Clutch Replacement (Service and Repair) .
