Body Harness - Right Rear Cargo Area



Harness Routing Views

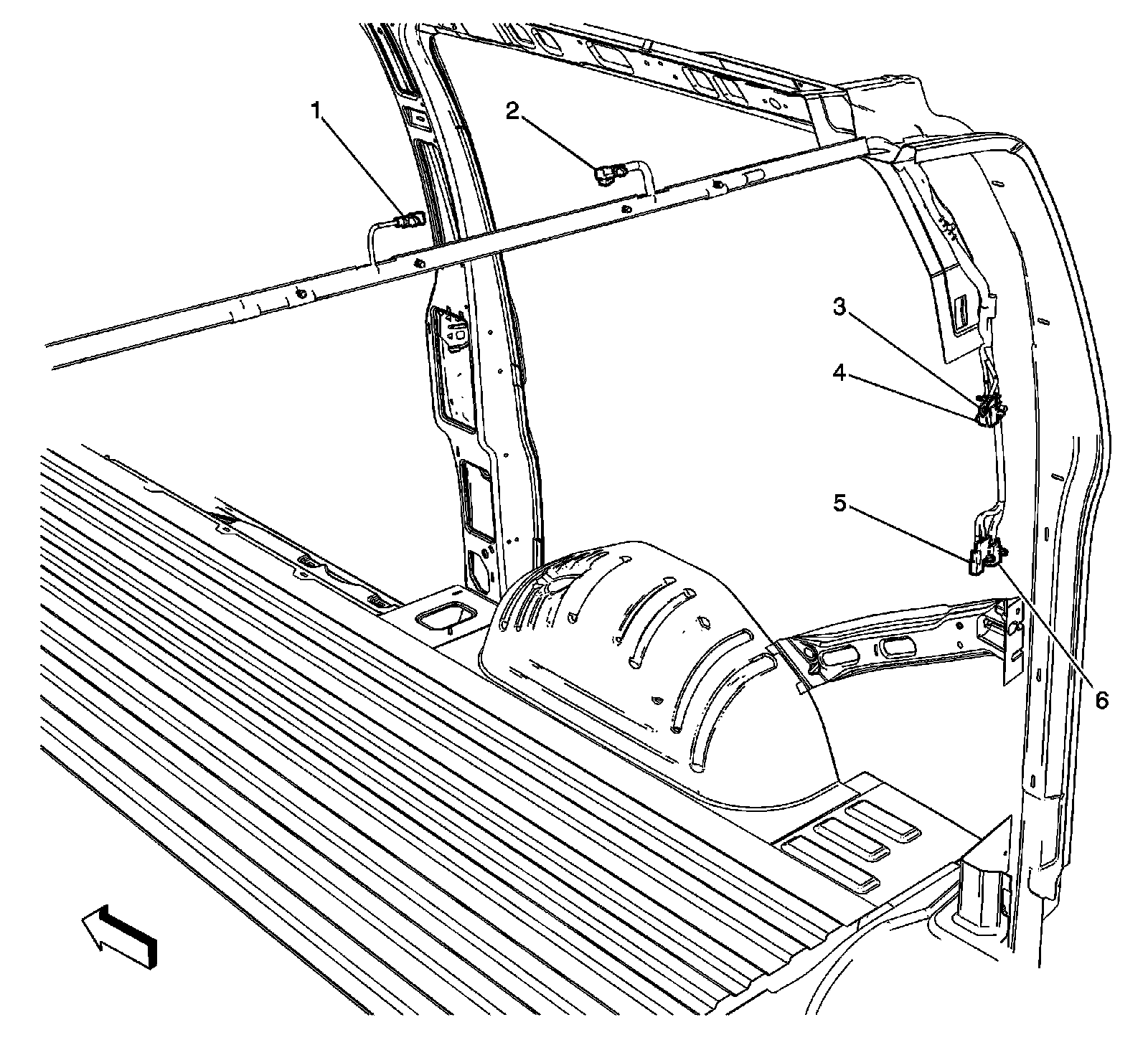

Body Harness - Right Rear Cargo Area




1 - X419
2 - X415
3 - G401
4 - X402
5 - X412
6 - X400
