Information Bus

Data Communication Schematics

Low Speed GMLAN

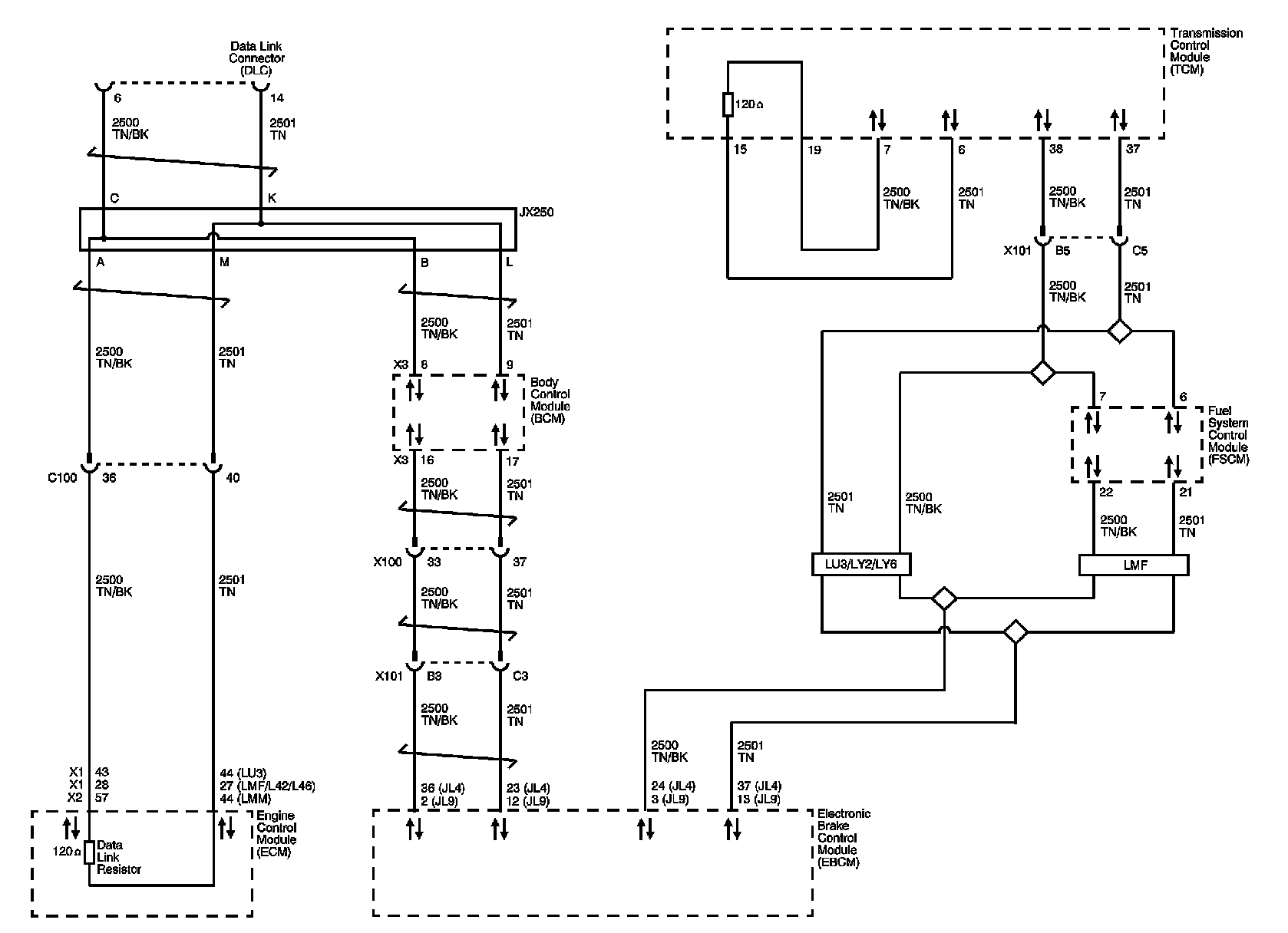

High Speed GMLAN LU3/LMF/LY2/LY6

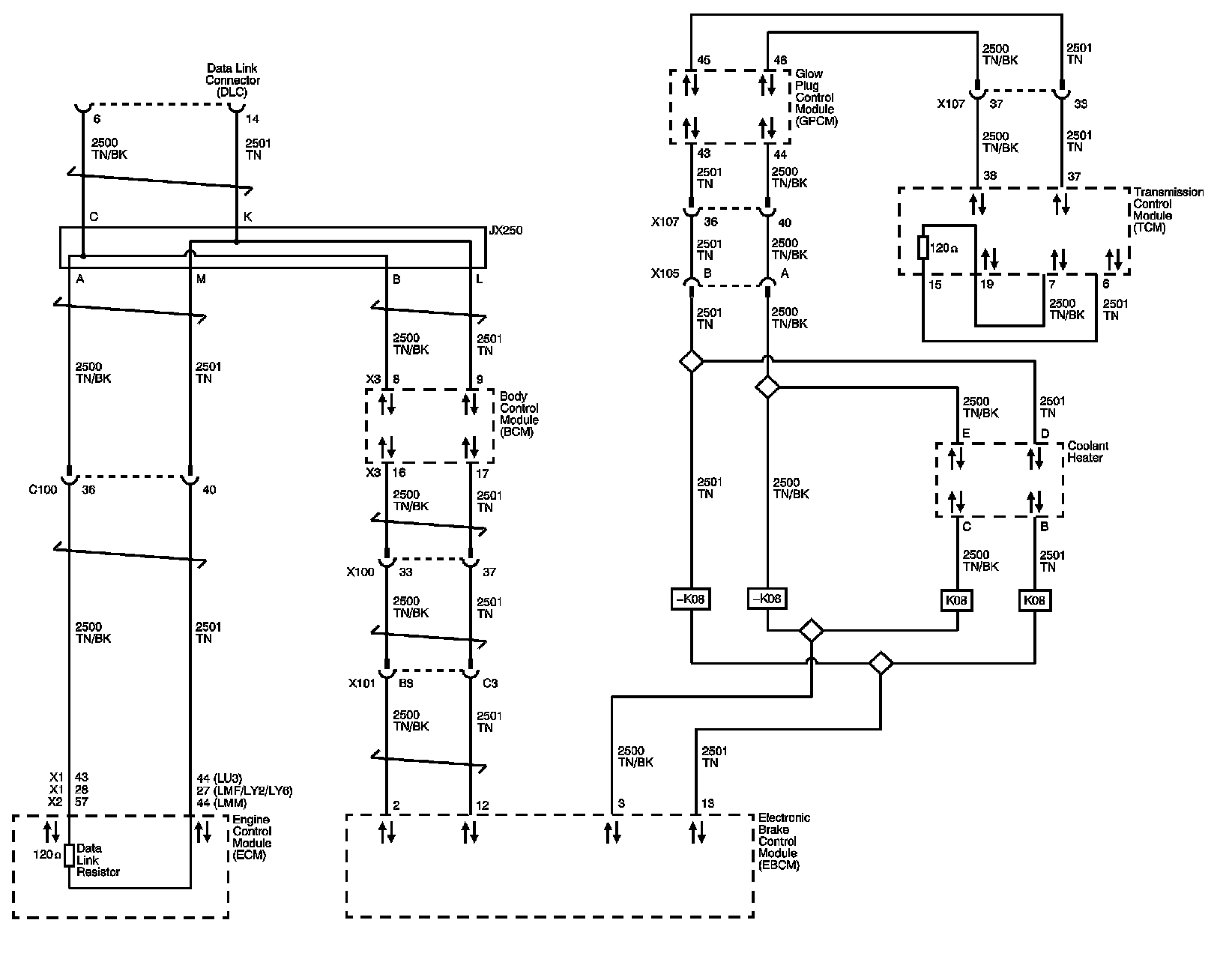

High Speed GMLAN (LMM)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
