Interior Lights Diagram 4

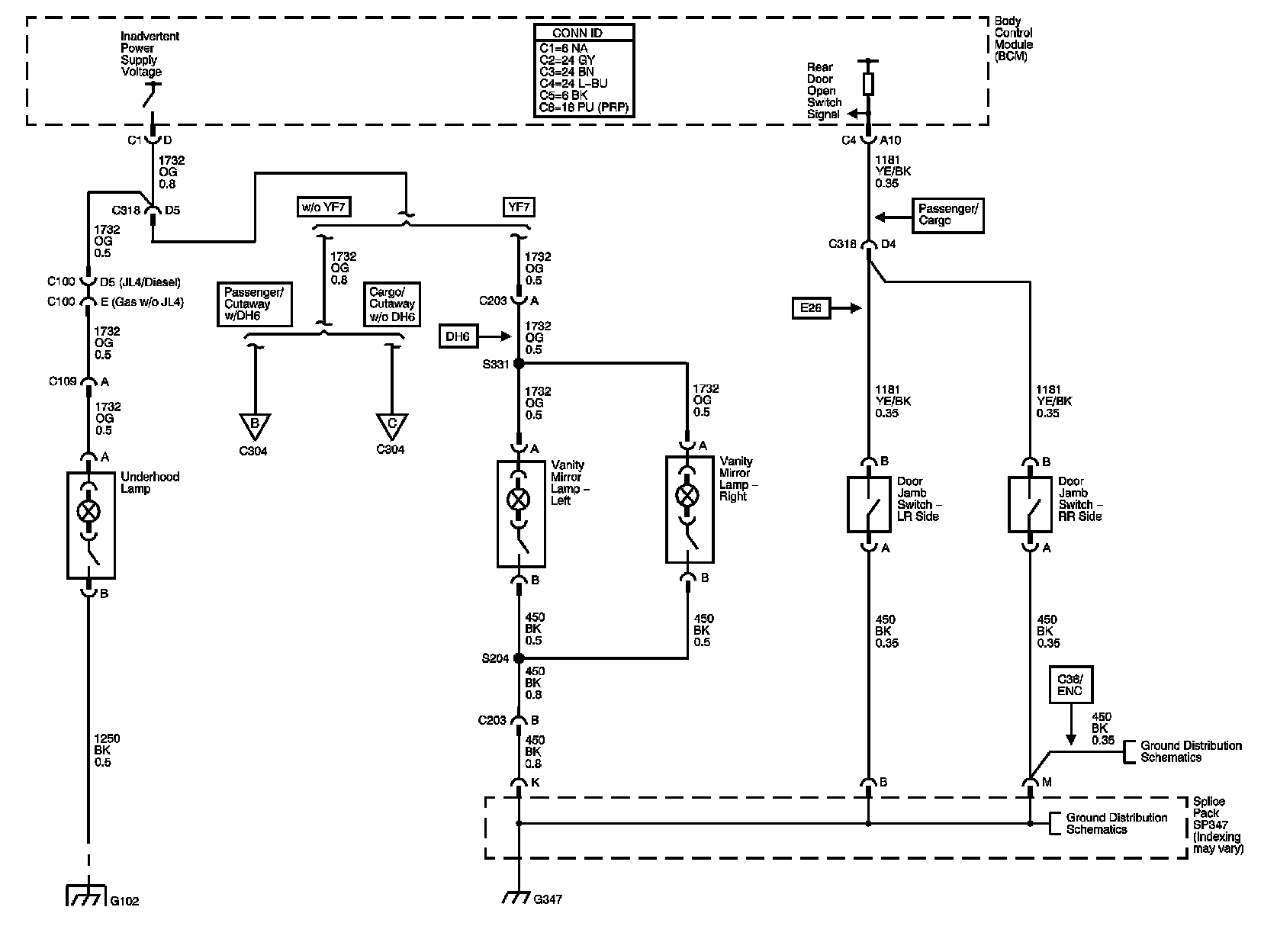

Interior Lights Schematics

Underhood/Vanity Lamps and Door Jamb Switches

Interior Lights Diagram 4:






Next Diagram: Interior Lights Diagram 5

Previous Diagram: Interior Lights Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
