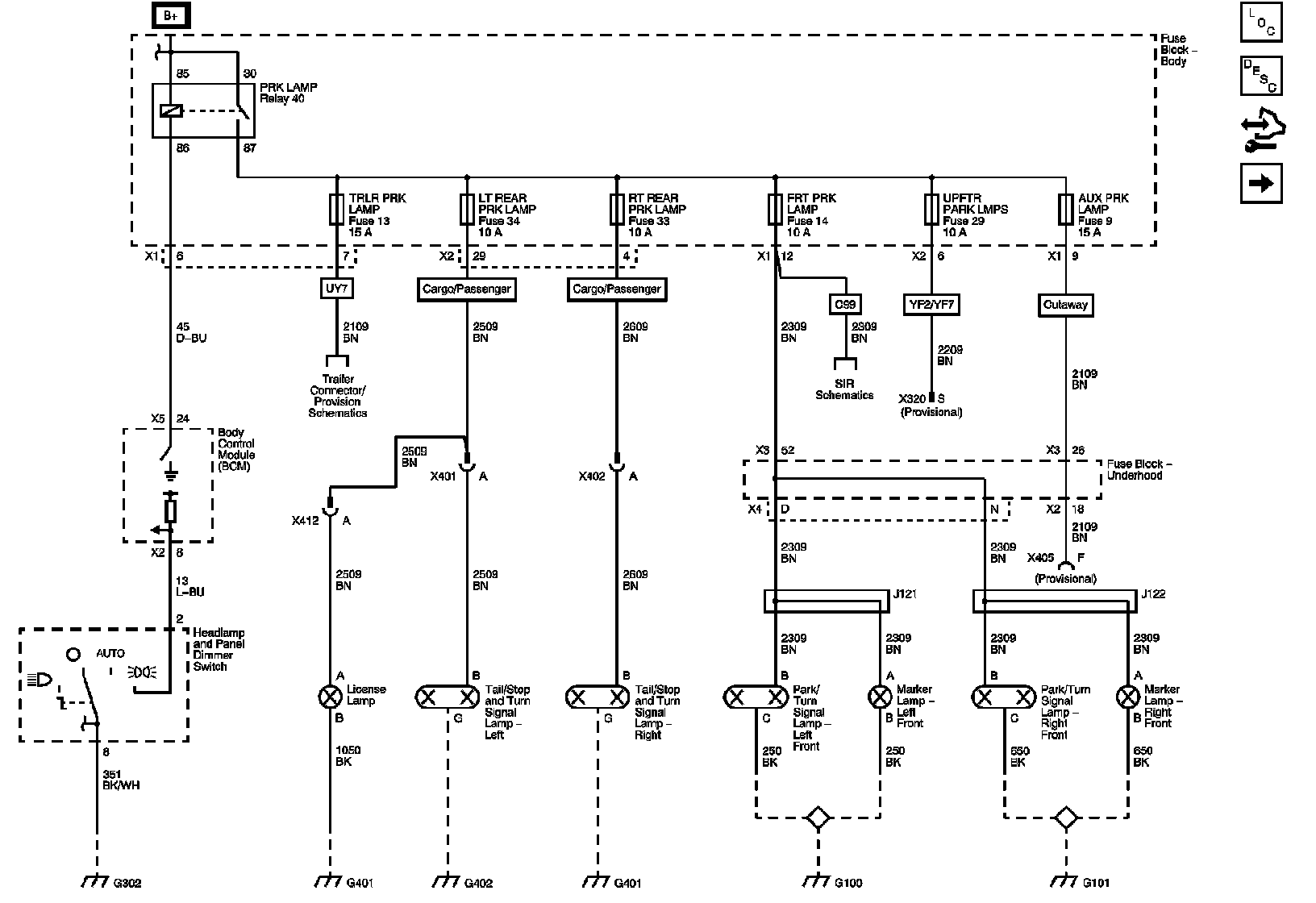

Exterior Lights Diagram 1

Park Lamp Controls and Park Lamps

Next Diagram: Exterior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
