Air Bag Systems

SIR Schematics

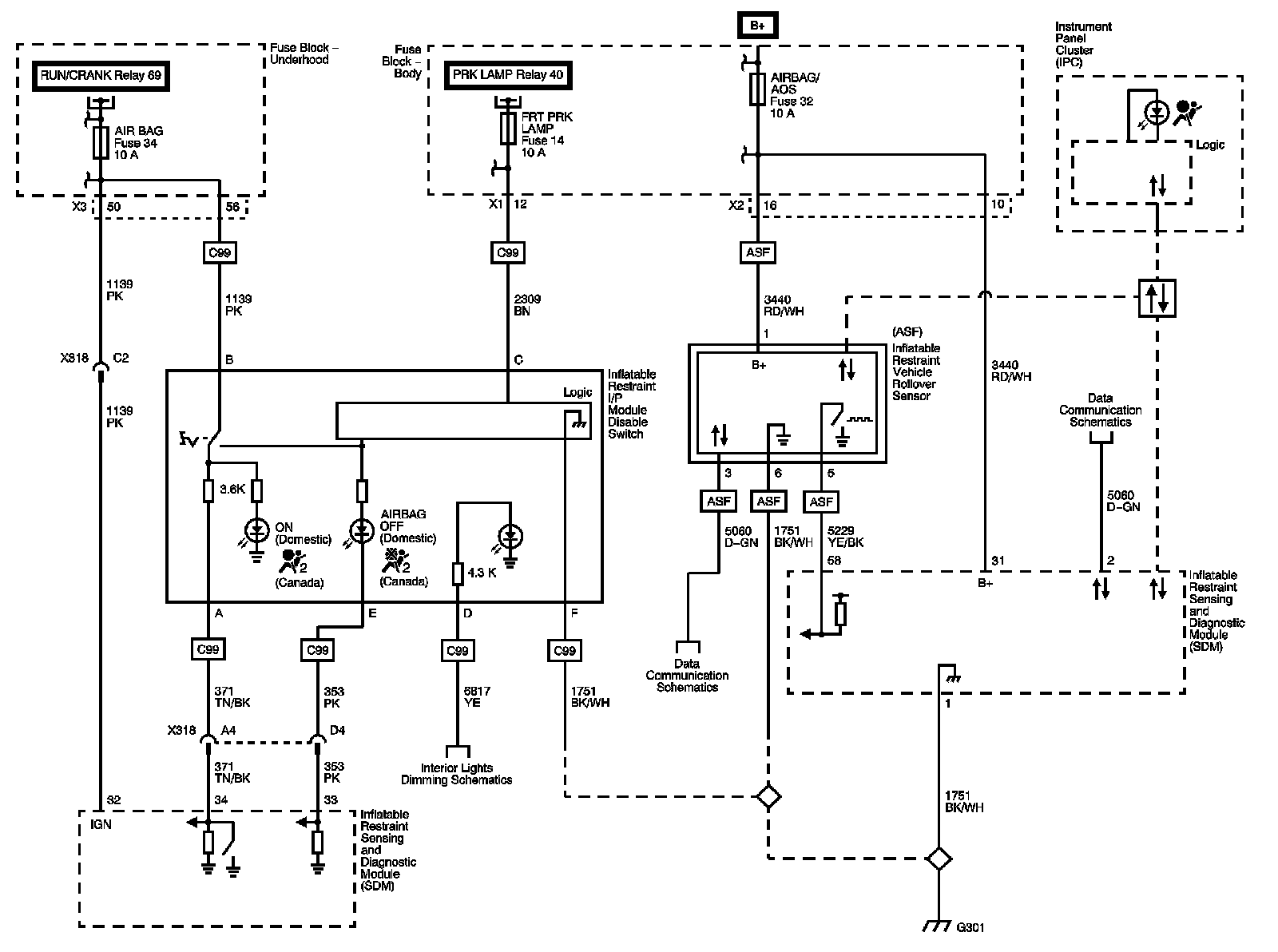

Module Power, Ground, Serial Data, Vehicle Rollover Sensor (ASF) and Disable Switch




Passenger Presence System Light Duty (without RPO C99 without RPO YF7)

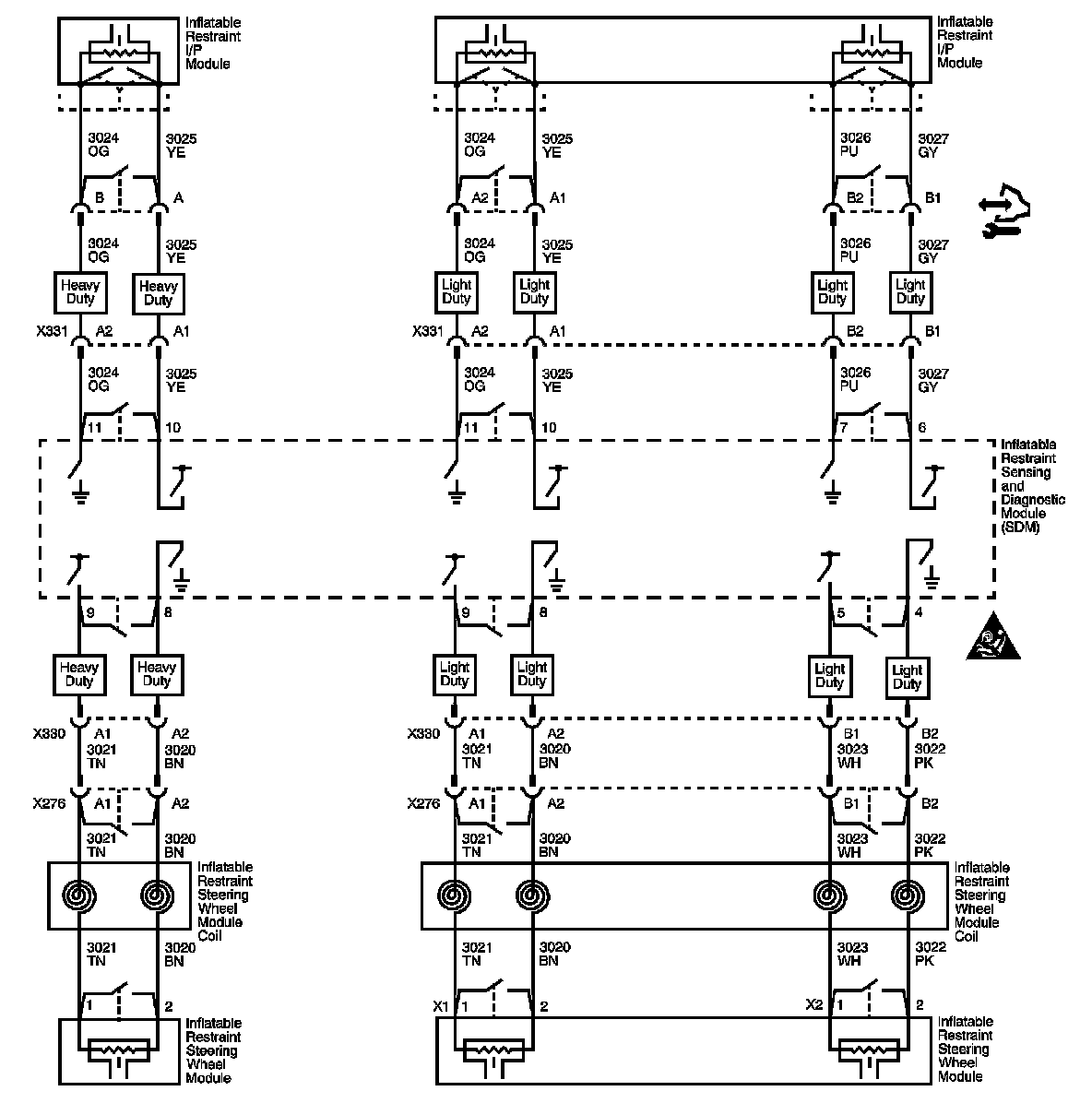

Driver and Passenger AIR BAG Modules

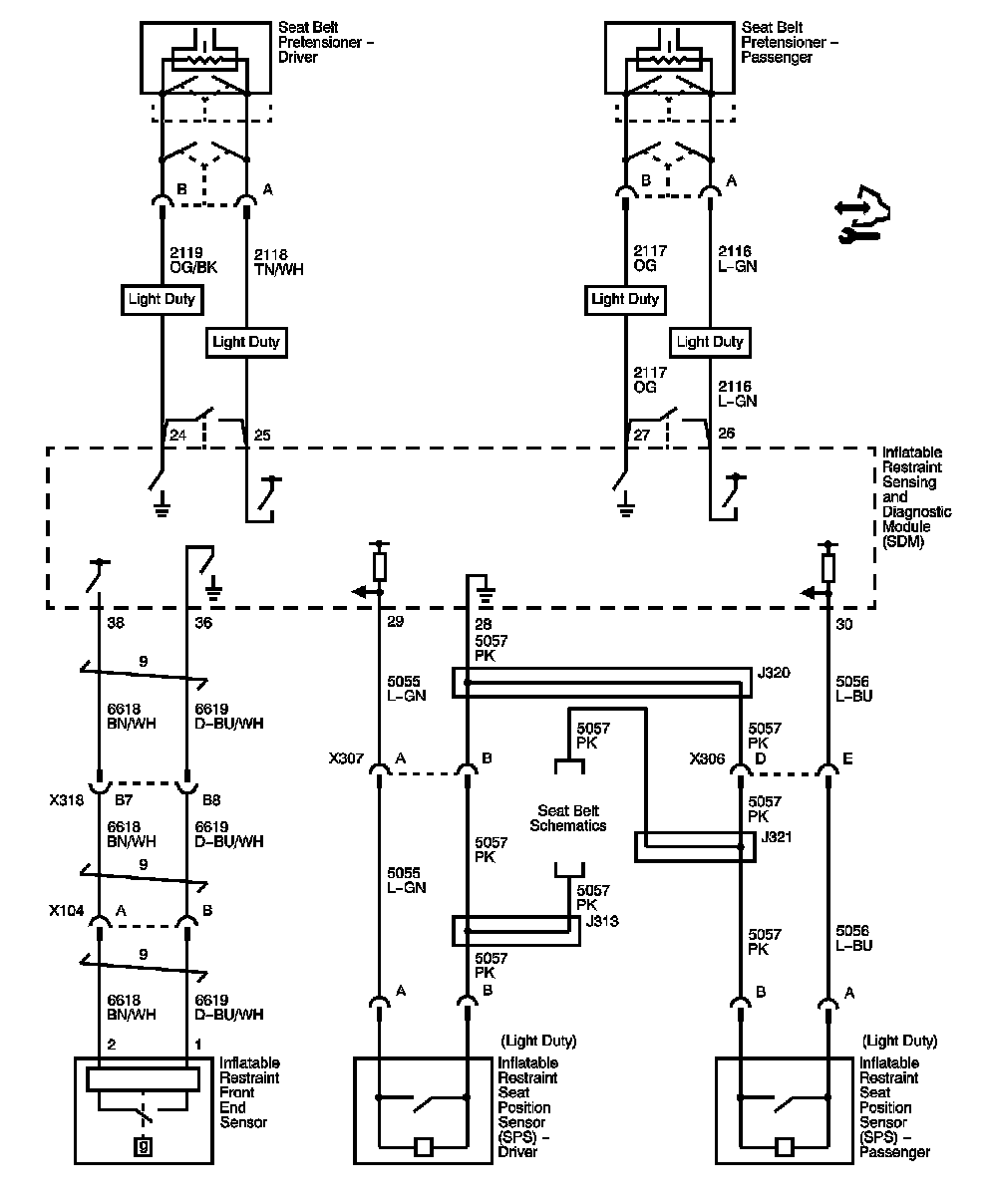

Inflatable Restraint Sensors

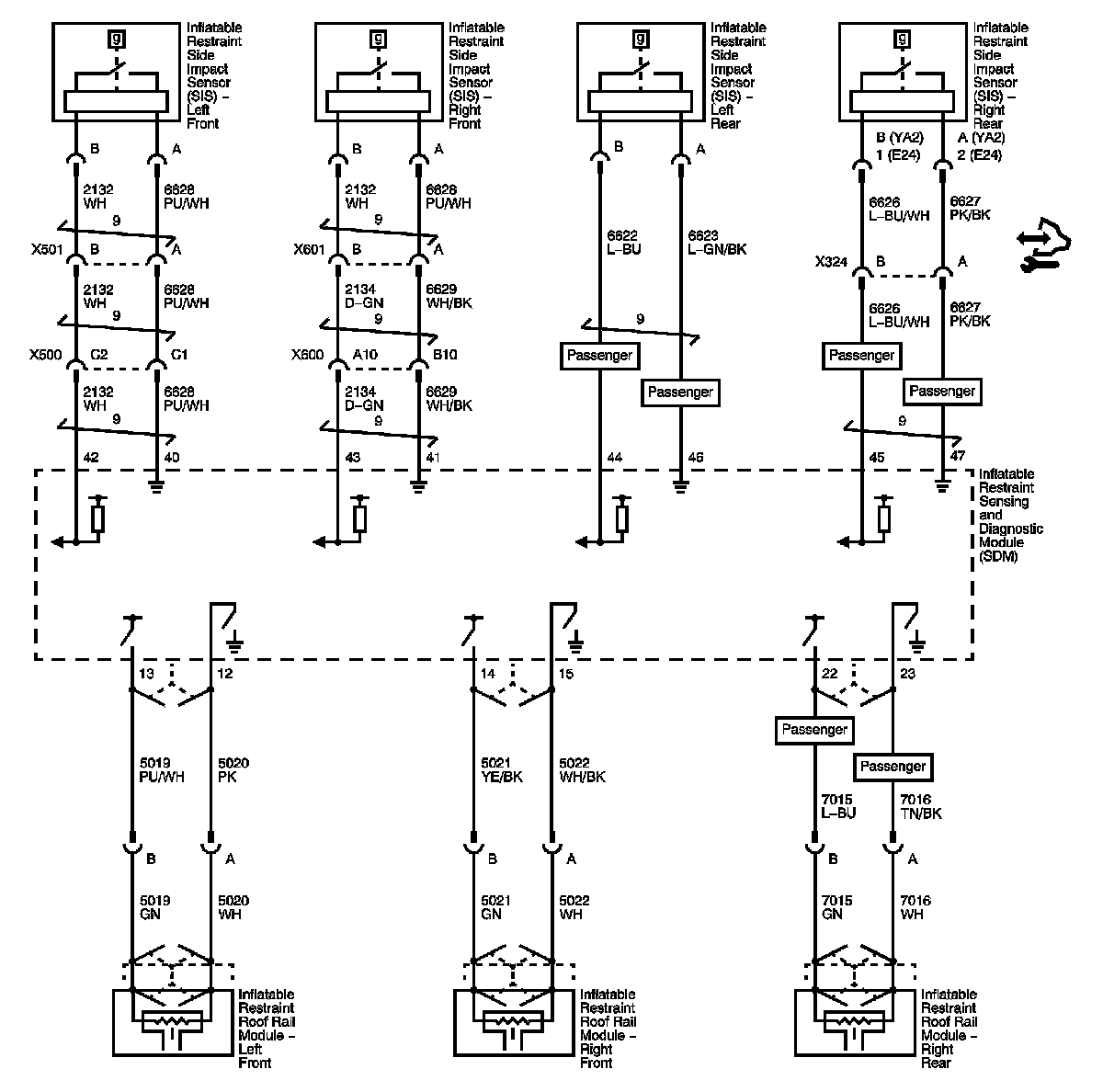

Inflatable Restraint Side Impact Sensors and Modules (ASF)

RPO C99 - Switch Inflatable Restraint, I/P Module Manual Suppression
RPO YF7 - Sales Package Recreational Vehicle, Upfitter

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
