Express 1500 AWD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400 - X499
>>
X407
X407
Inline Harness Connector End Views
X407 Rear HVAC Harness to Body Harness (C36/C69)

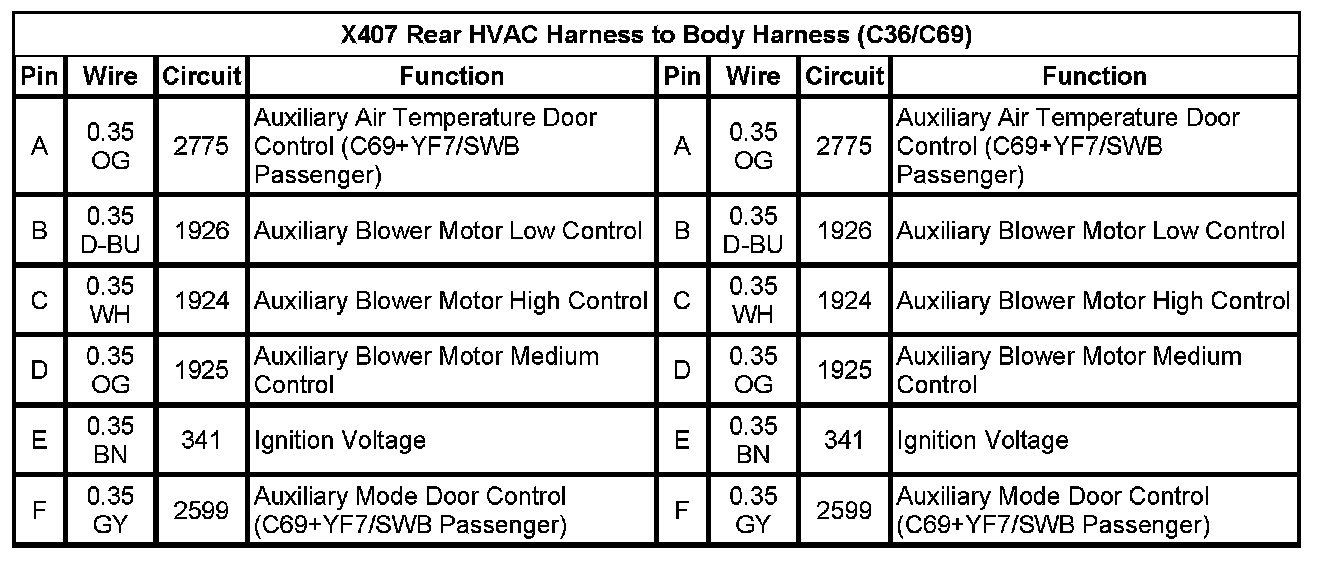

X407 Rear HVAC Harness To Body Harness (C36/C69) Pin A To F:
