X400



Inline Harness Connector End Views

X400 Right Rear Cargo Door to Body Harness (Passenger/Cargo)

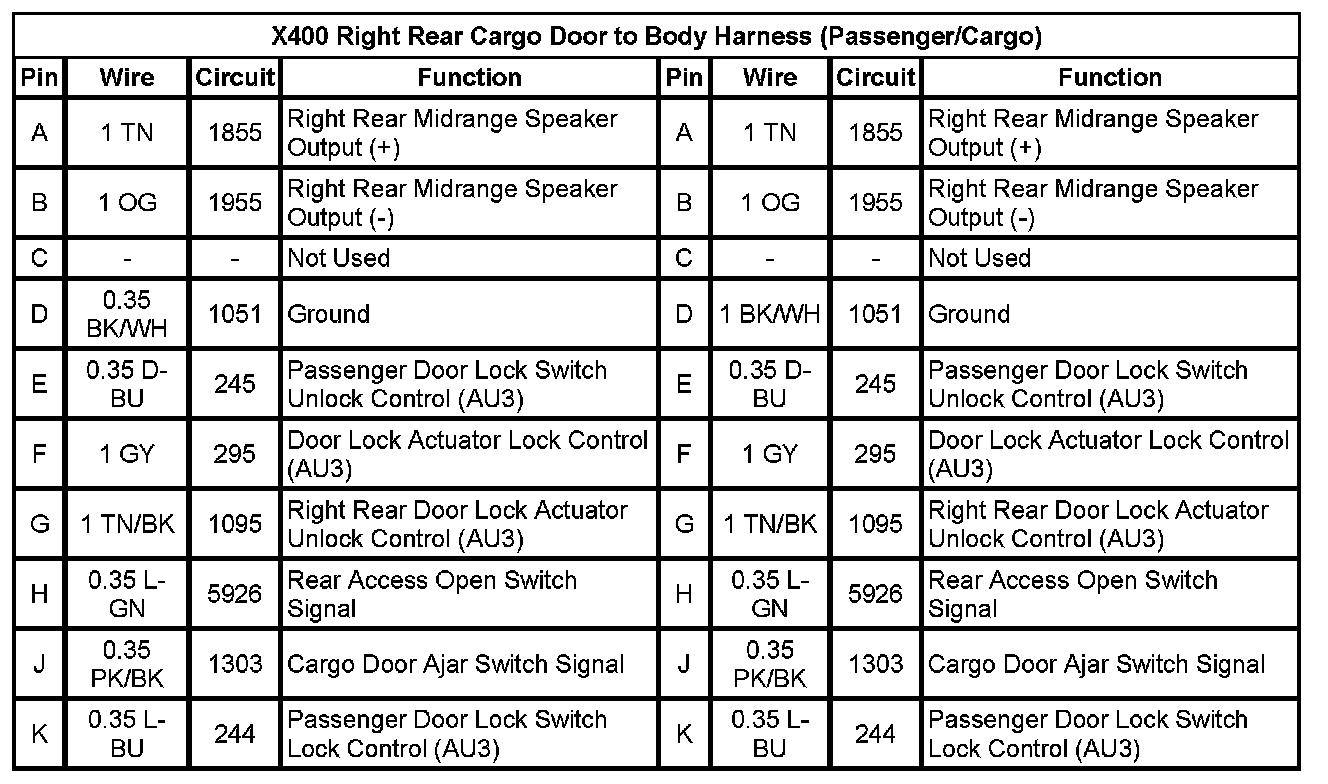

X400 Right Rear Cargo Door To Body Harness (Passenger/Cargo) Pin A To K:
