X311



Inline Harness Connector End Views

X311 Driver Door Harness to Body Harness

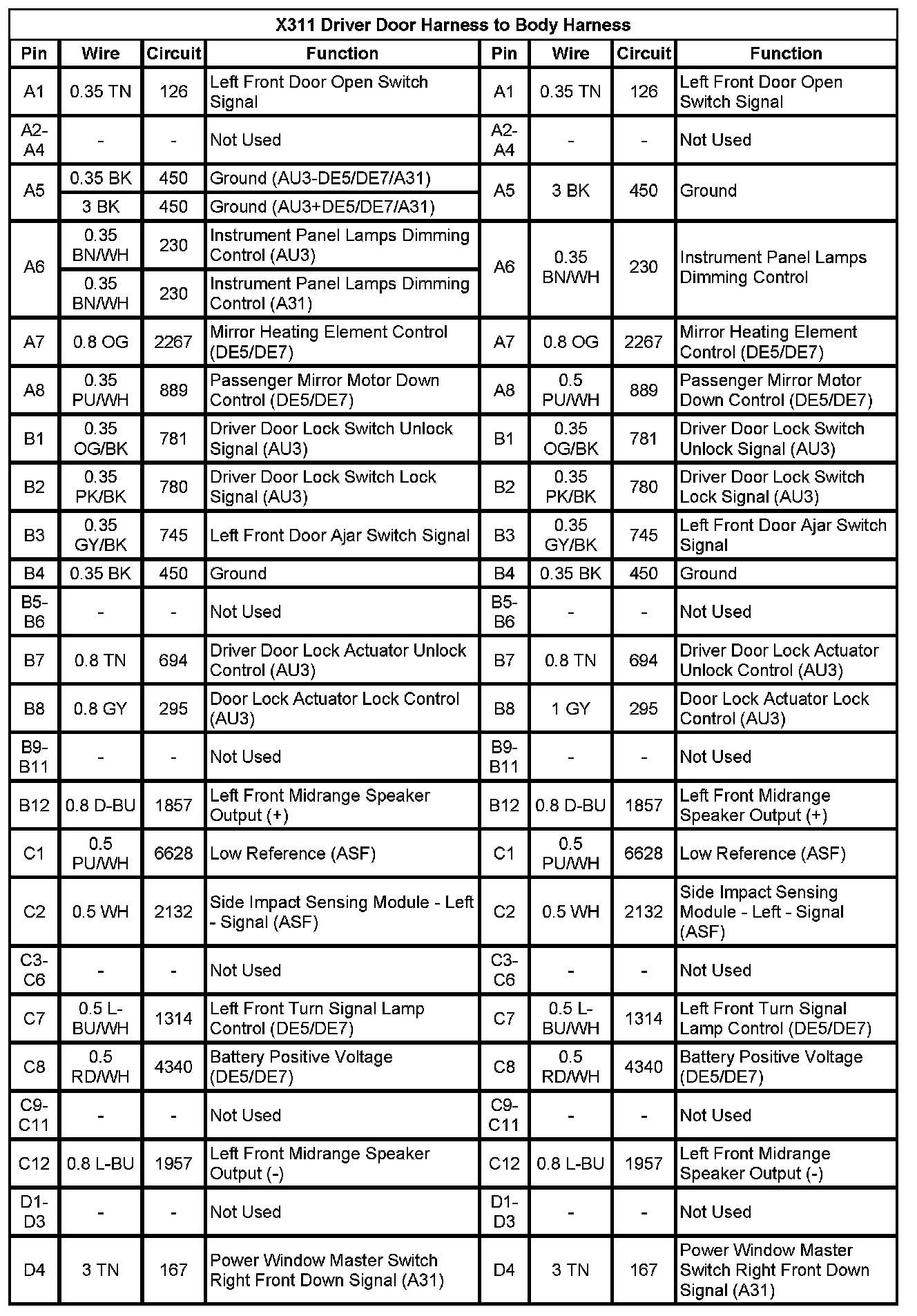

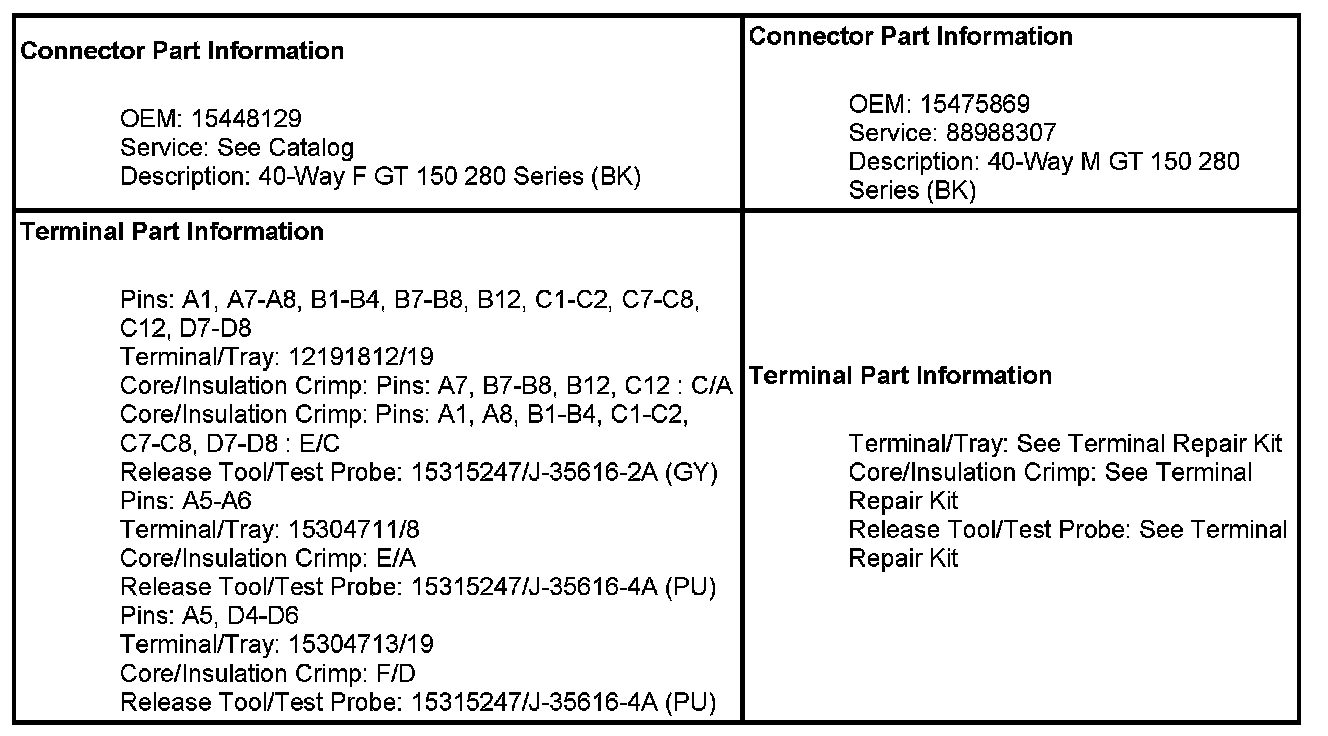

X311 Driver Door Harness To Body Harness (Pin A1 To D4):





X311 Driver Door Harness To Body Harness (Pin D5 To D8):
