X101
X101
Inline Harness Connector End Views

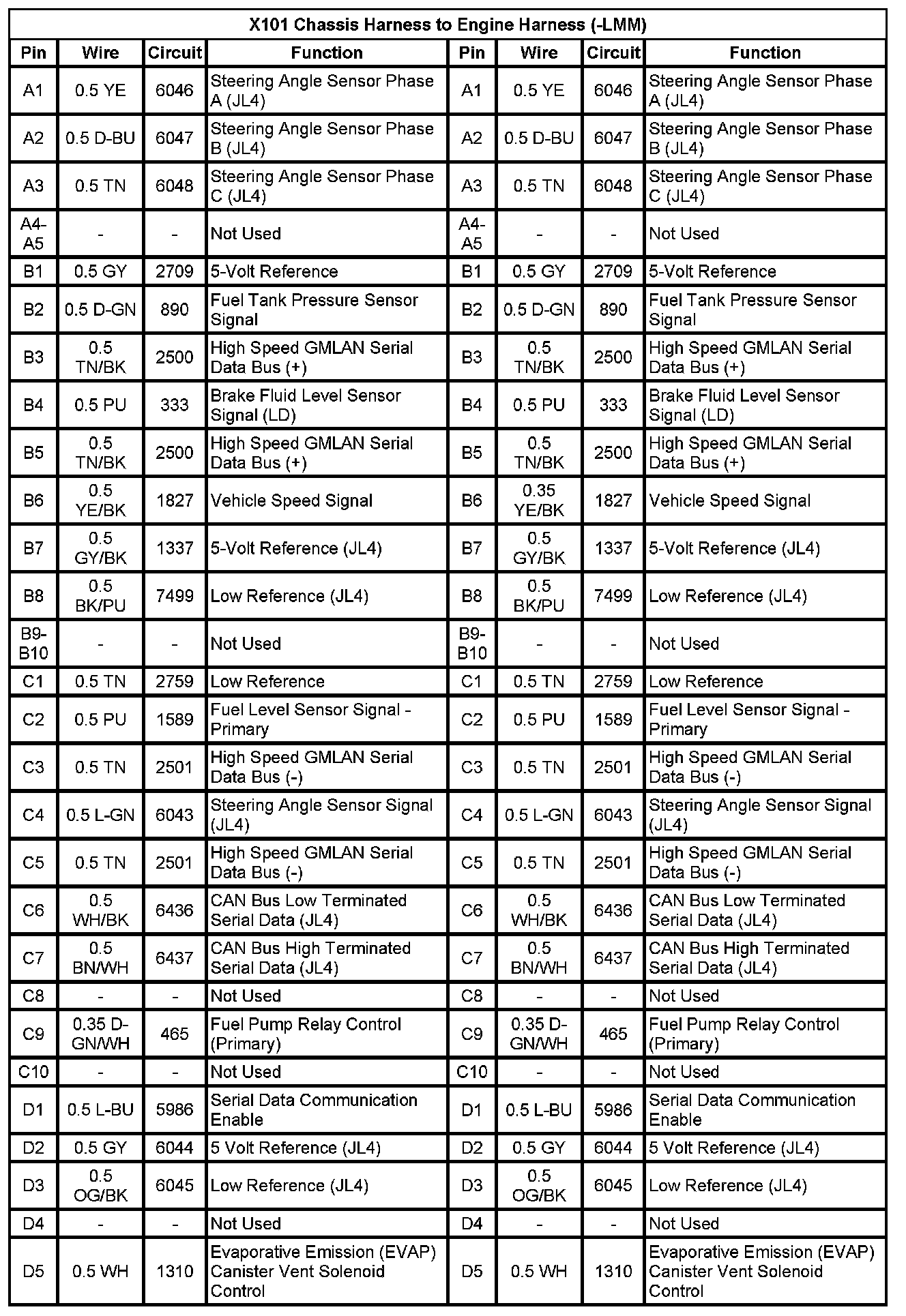

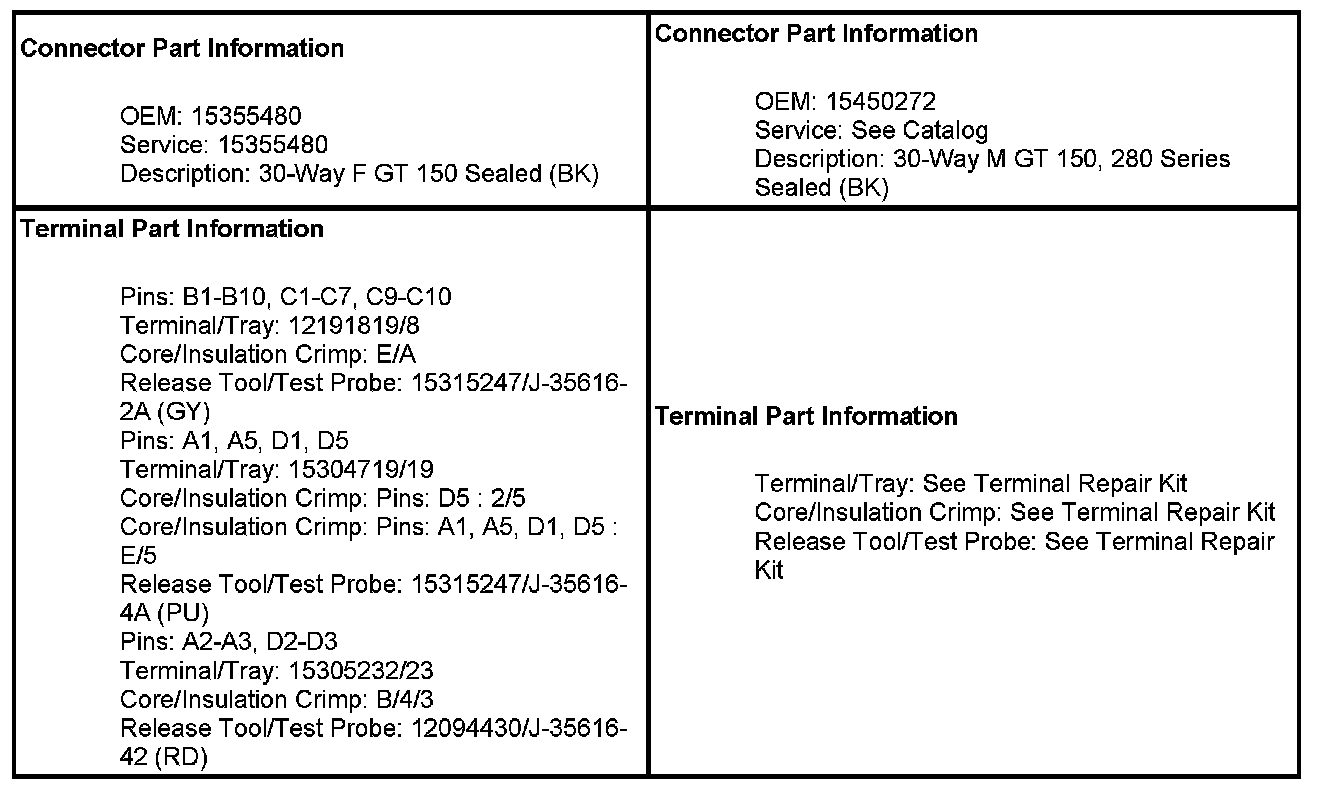

X101 Chassis Harness to Engine Harness (-LMM)
X101 Chassis Harness To Engine Harness (-LMM):
