X320
Inline Harness Connector End Views

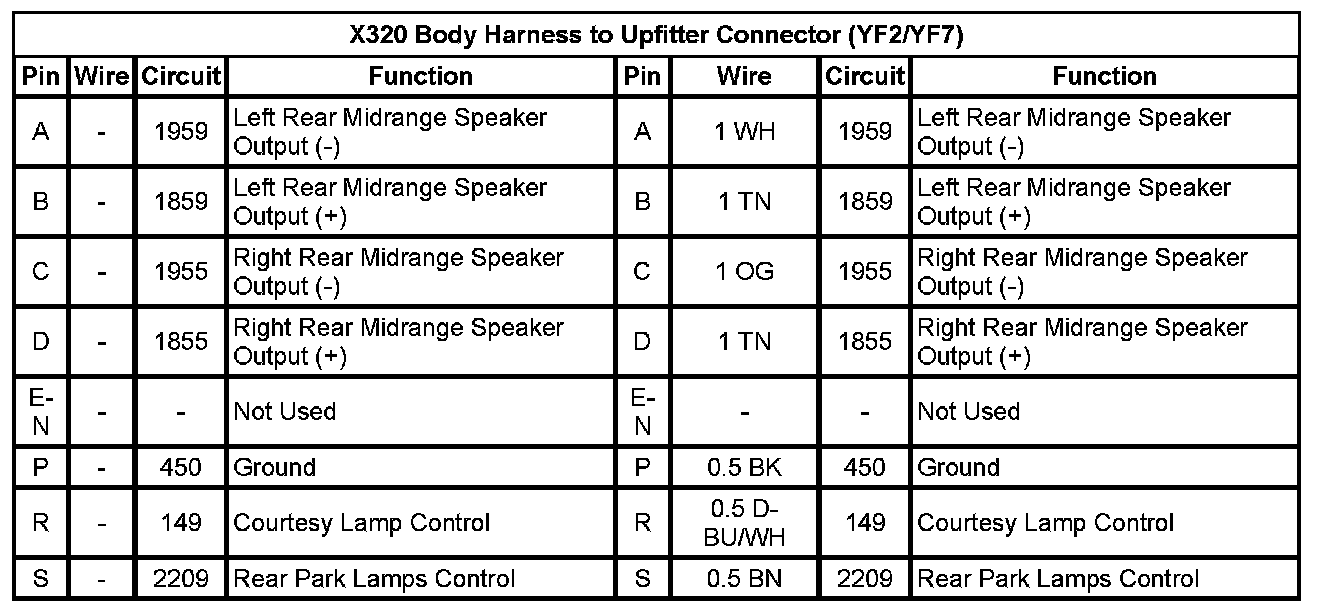

X320 Body Harness to Upfitter Connector (YF2/YF7)
X320 Body Harness To Upfitter Connector (YF2/YF7) Pin A To S:
