X304



Inline Harness Connector End Views

X304 Rear Headliner Harness to Body Harness (Passenger)

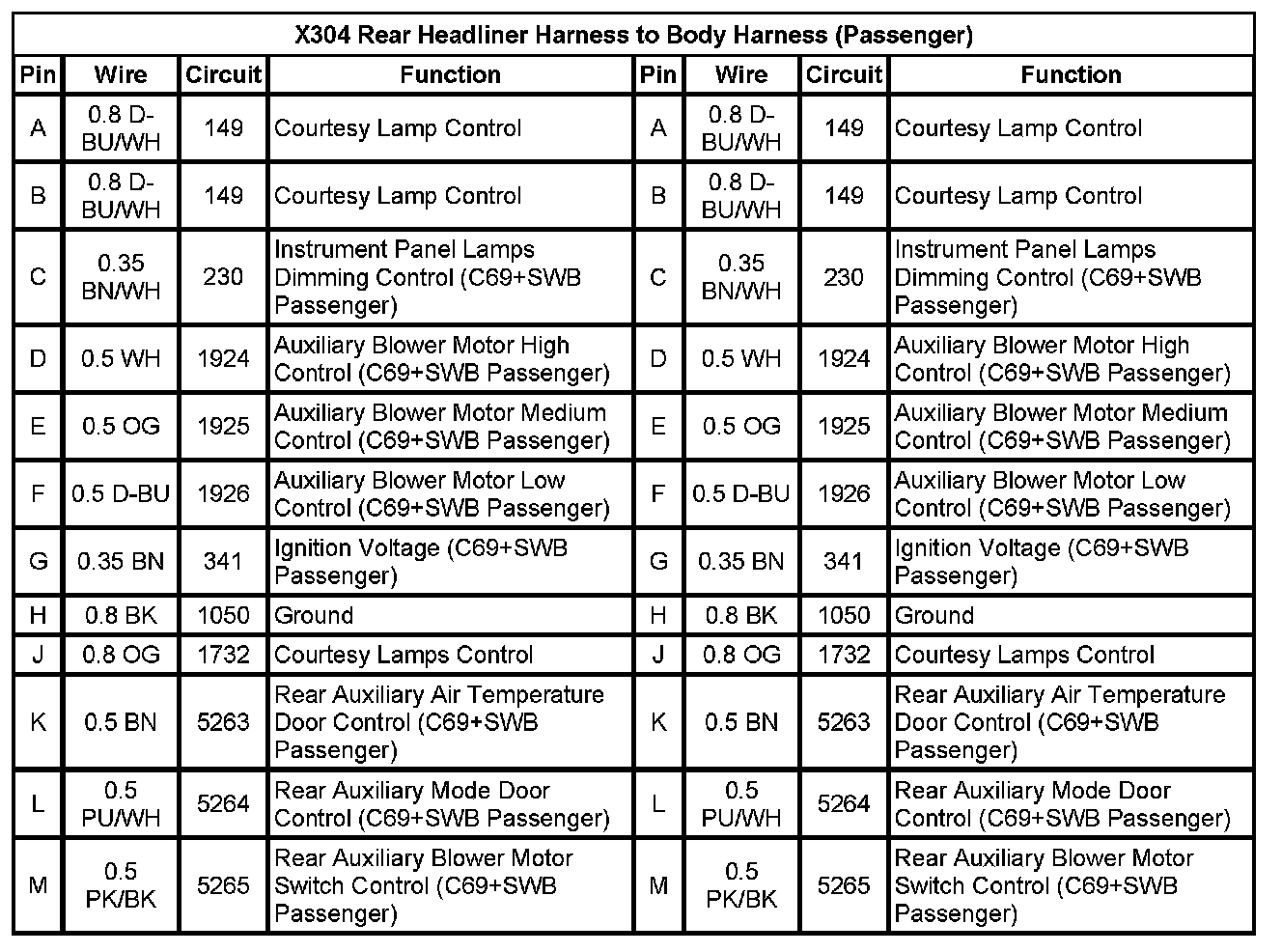

X304 Rear Headliner Harness To Body Harness (Passenger) Pin A To M:
