X205
X205
Inline Harness Connector End Views
X205 Front Headliner Harness to Body Harness

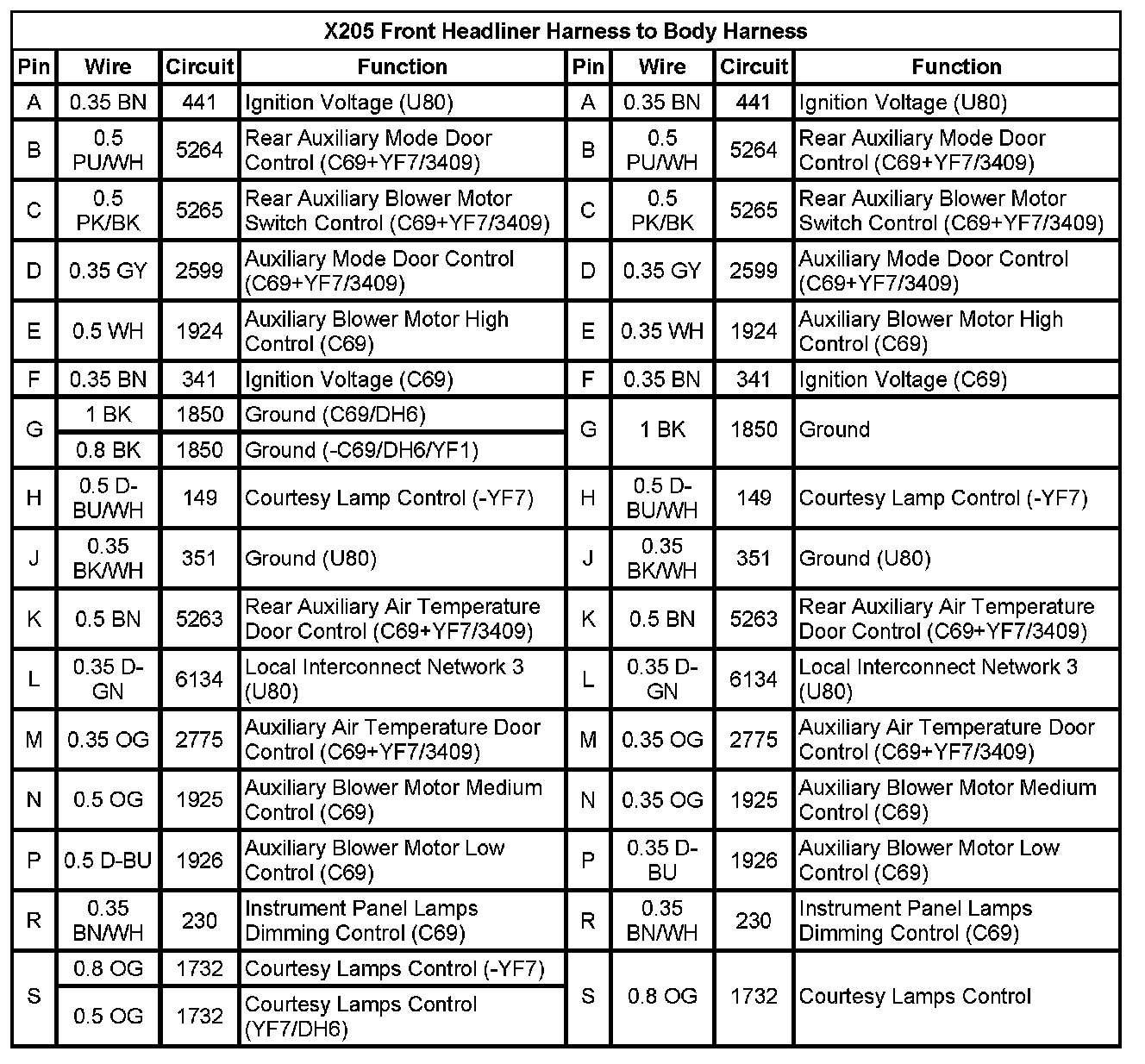

X205 Front Headliner Harness To Body Harness Pin A To S:
