X175



Inline Harness Connector End Views

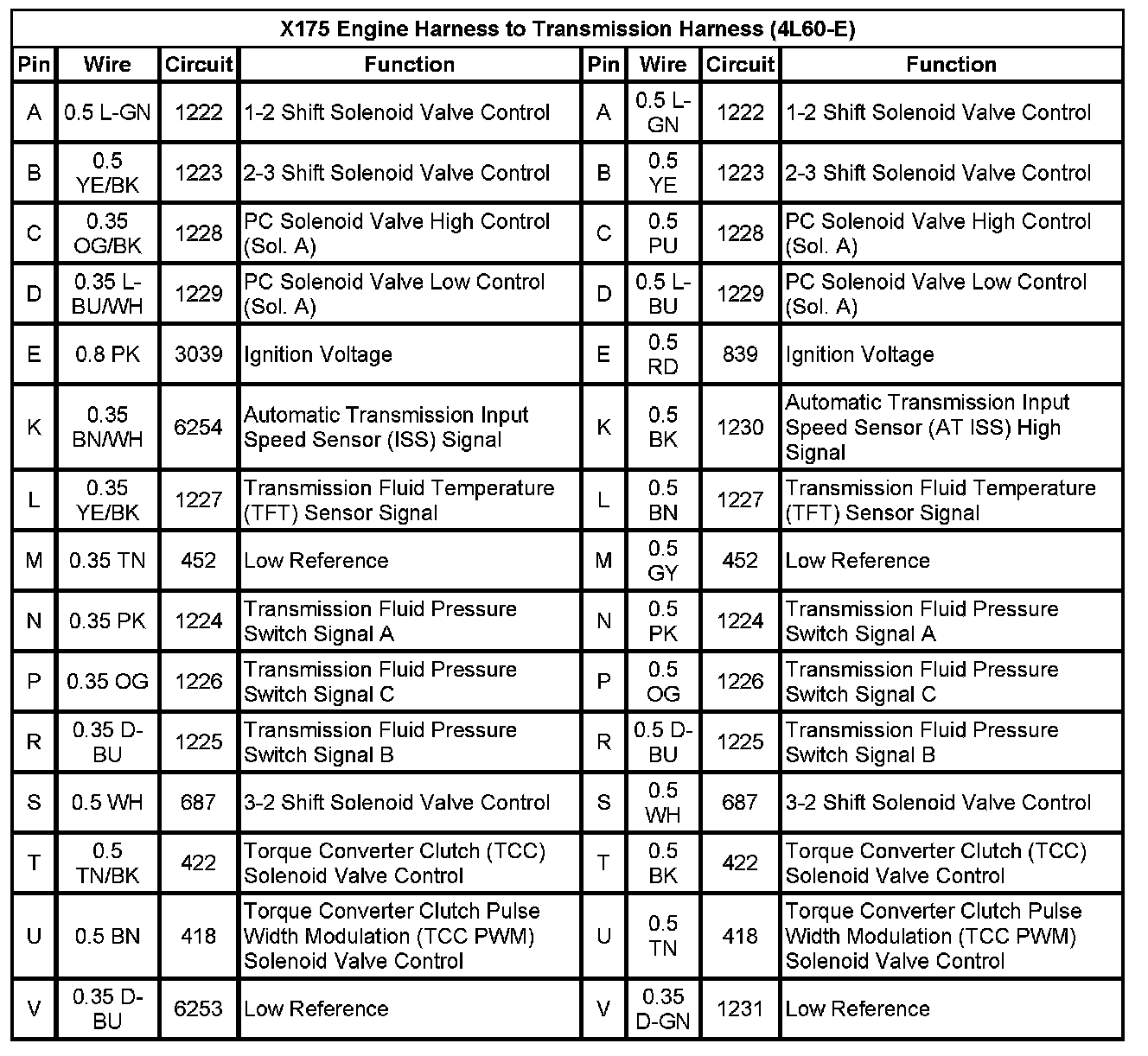

X175 Engine Harness to Transmission Harness (4L60-E)









X175 Engine Harness To Transmission Harness (4L60-E) Pin A To V:

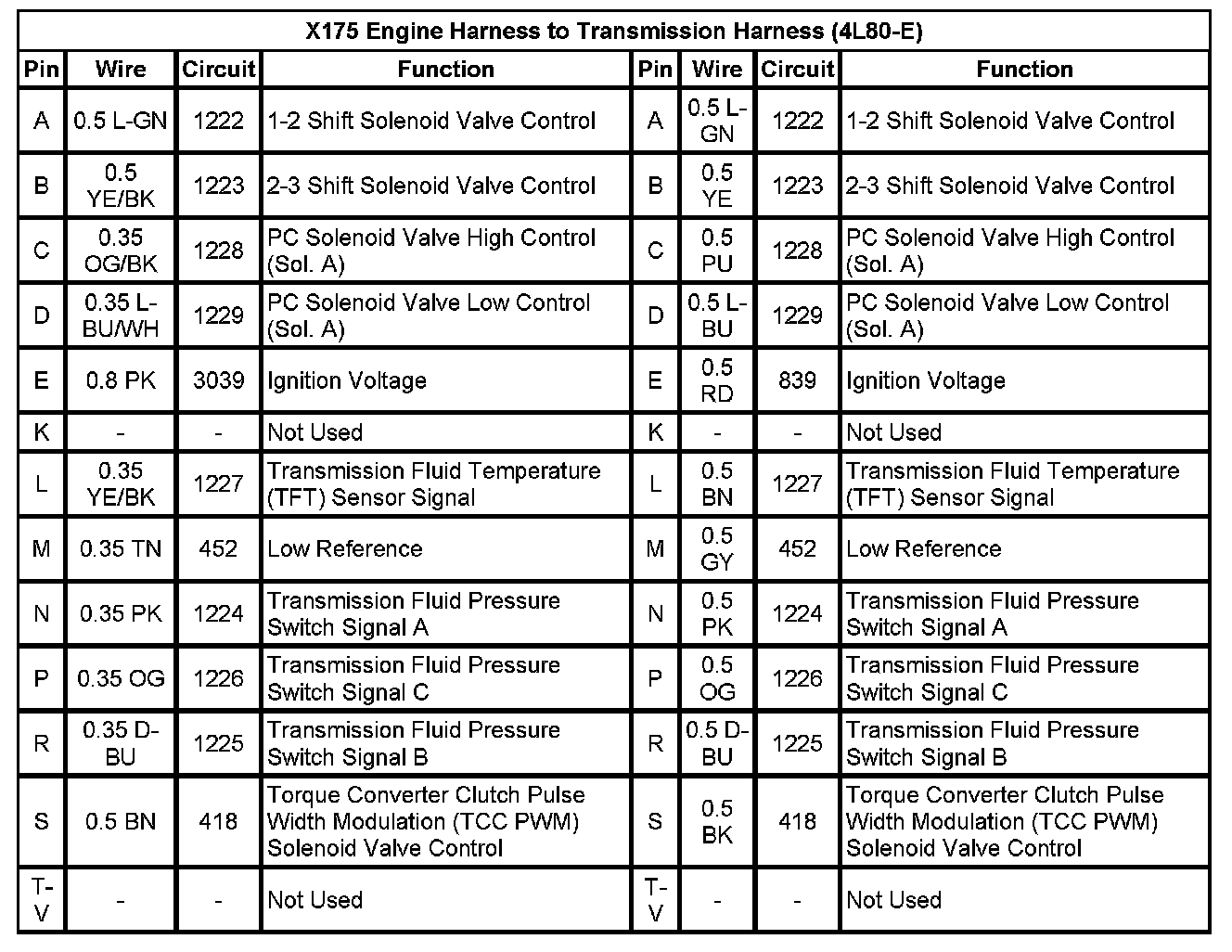

X175 Engine Harness to Transmission Harness (4L80-E)









X175 Engine Harness To Transmission Harness (4L80-E) Pin A To V:
