Electrical Diagrams



Antilock Brake System Schematics

Power, Ground, Serial Data, Indicator, and Stop Lamp Switch - w/o JL4





Wheel Speed Sensors and VSS - w/o JL4





Power, Ground, Serial Data, Indicator, and Stop Lamp Switch JL4





Wheel Speed Sensors and VSS JL4

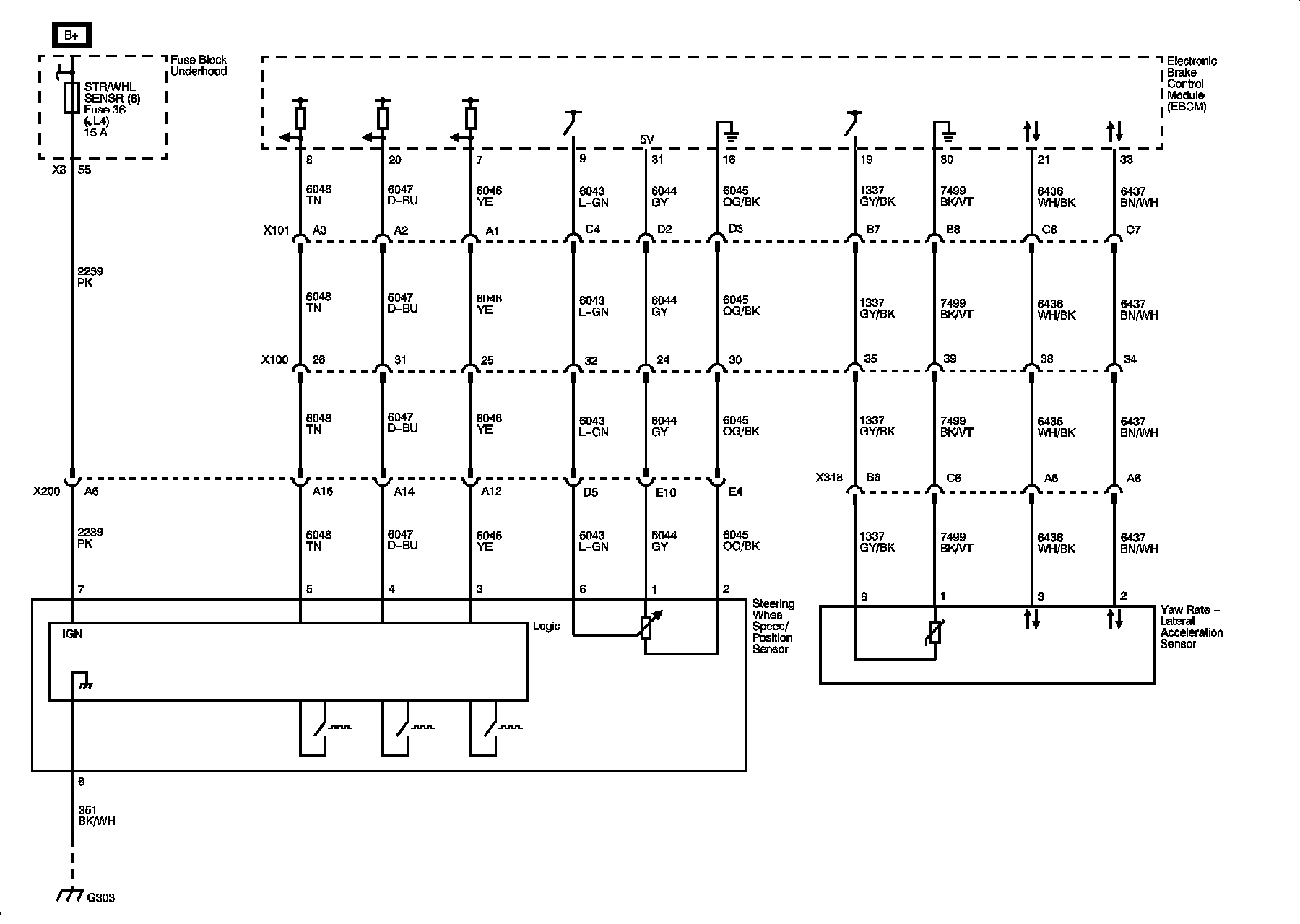

Yaw and Lateral Acceleration Sensor Inputs JL4

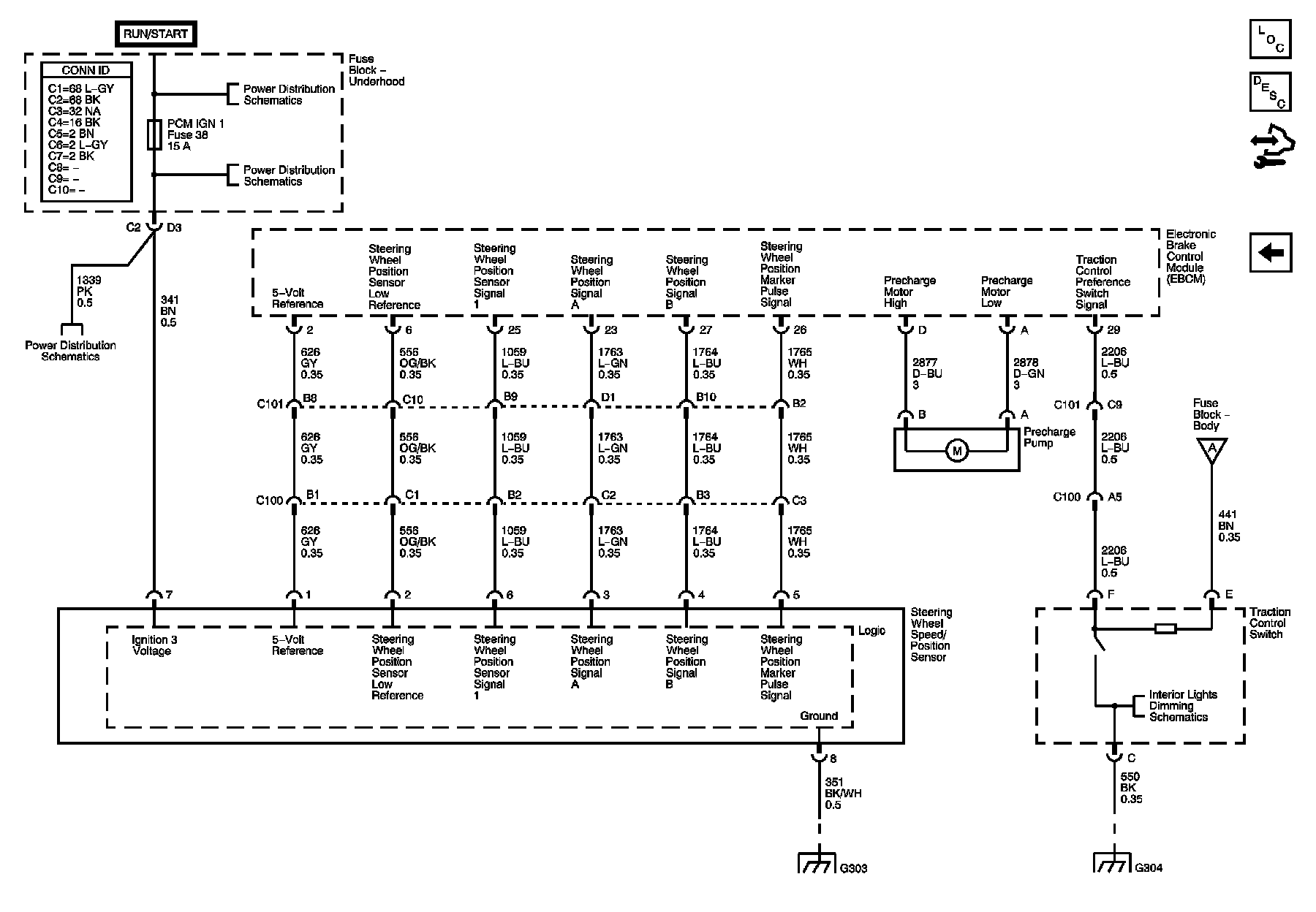

Steering Wheel/Speed Position Inputs, Traction Control Switch, and Precharge Pump JL4
