Door Lock/Indicator Schematics

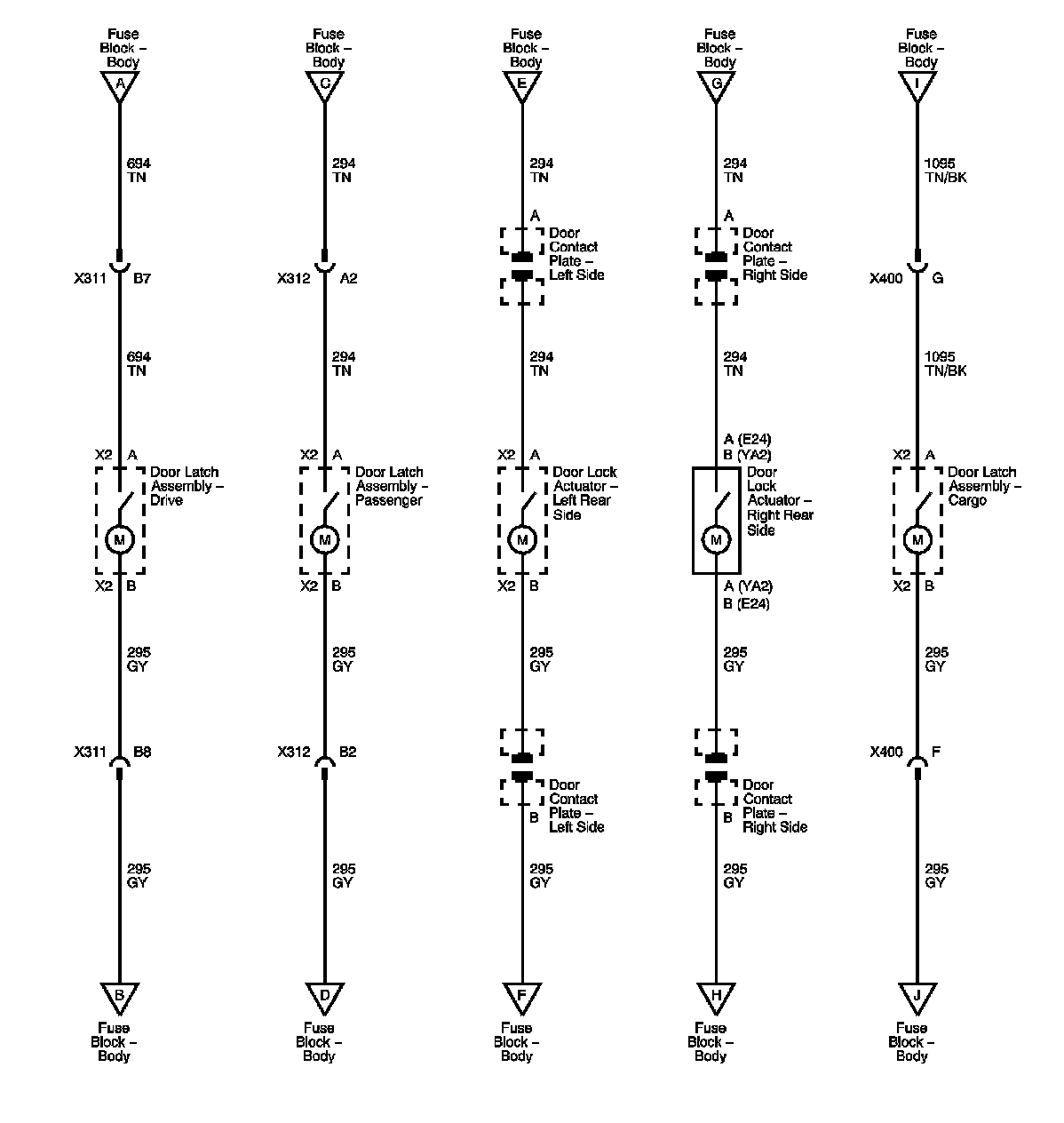

Door Lock/Indicator Schematics

Lock and Unlock Control






Door Latches and Actuators






Switches






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
