Radio/Navigation System Schematics

Radio/Navigation System Schematics

Power, Ground, Serial Data, Antenna, and Front Speaker Outputs

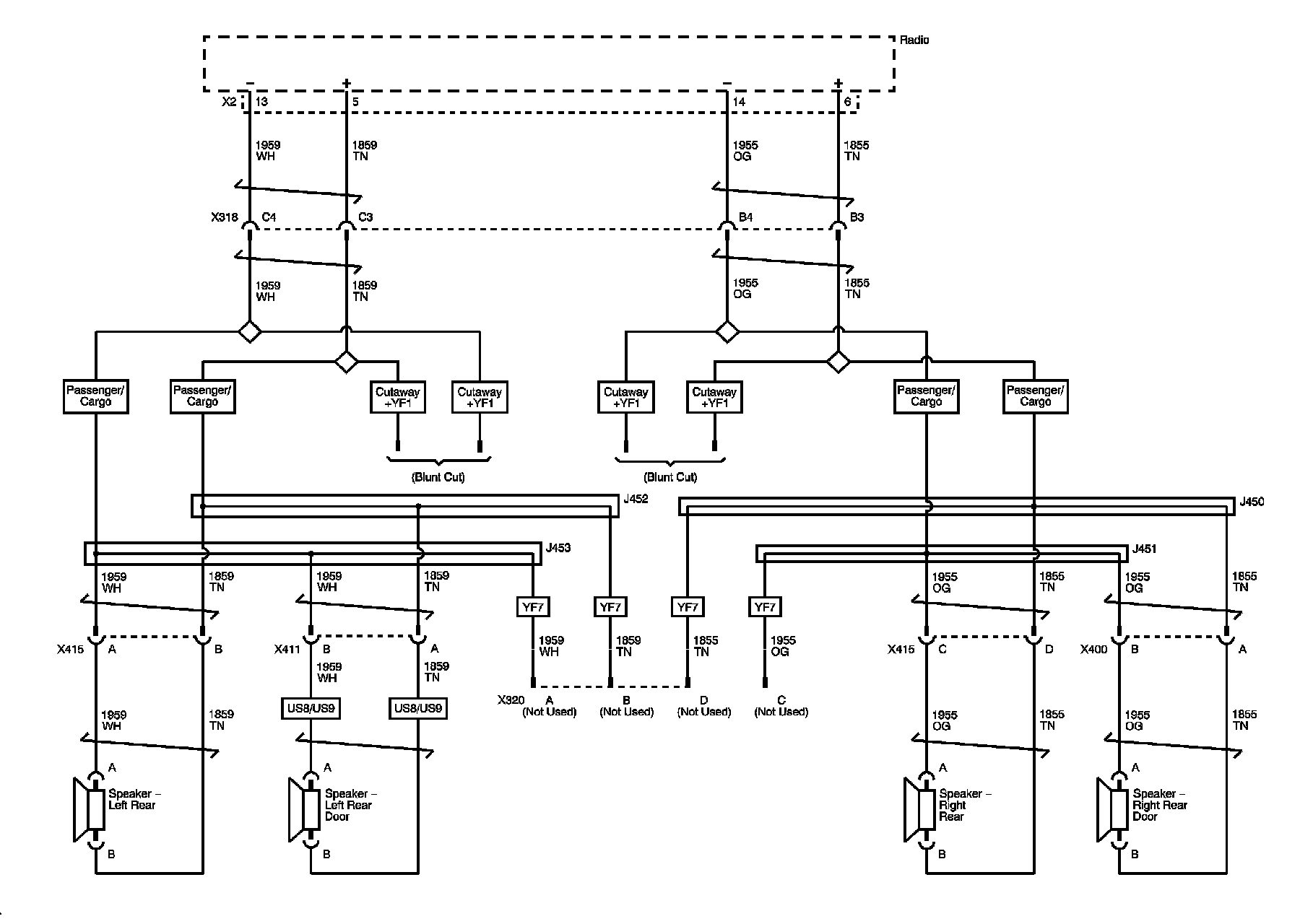

Rear Speaker Outputs






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
