Electronic Suspension Control Schematics

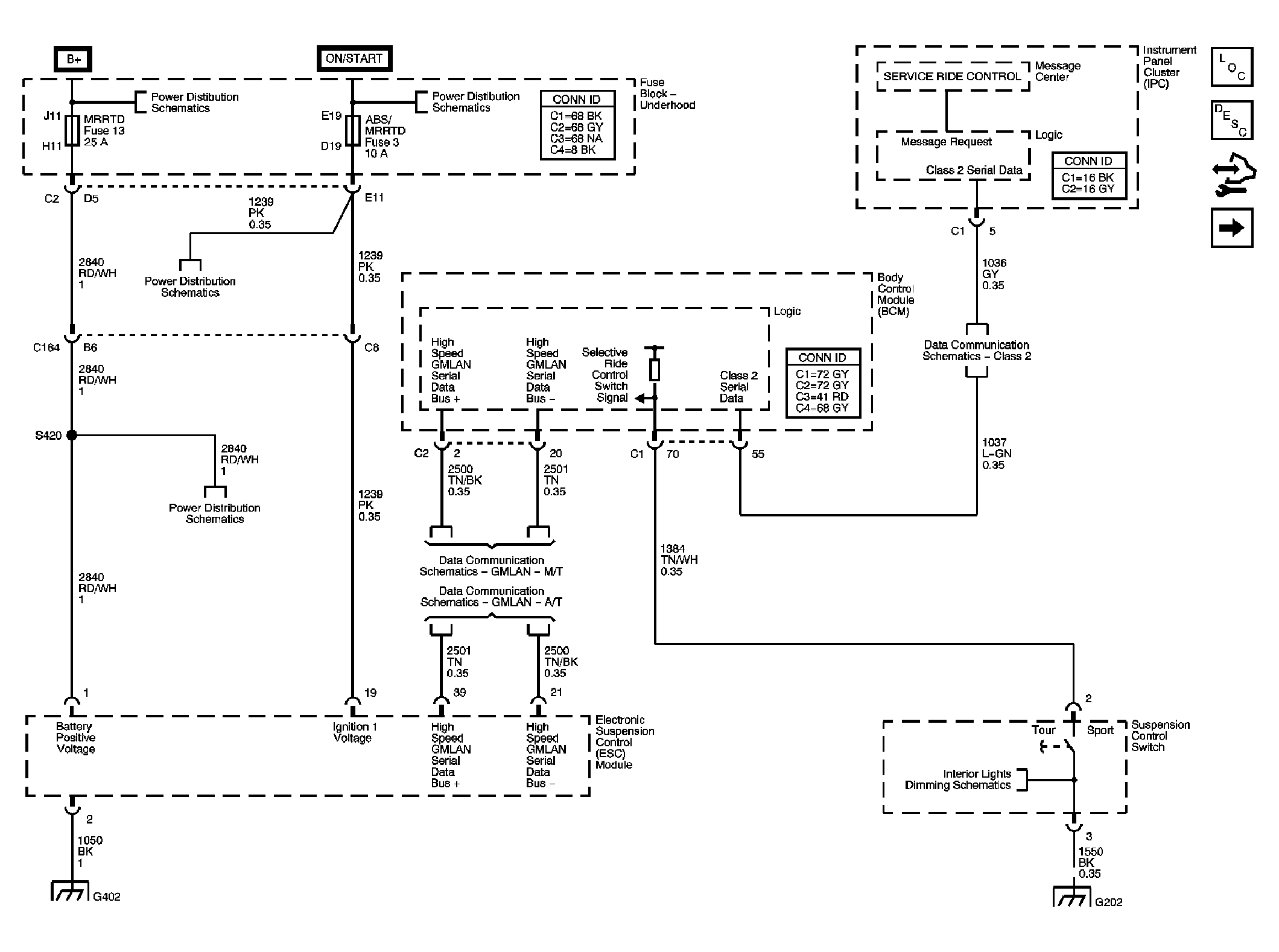

Fig 1: Power, Ground, Suspension Control Switch, and Serial Data Schematic
GM1892779Courtesy of GENERAL MOTORS CORP.

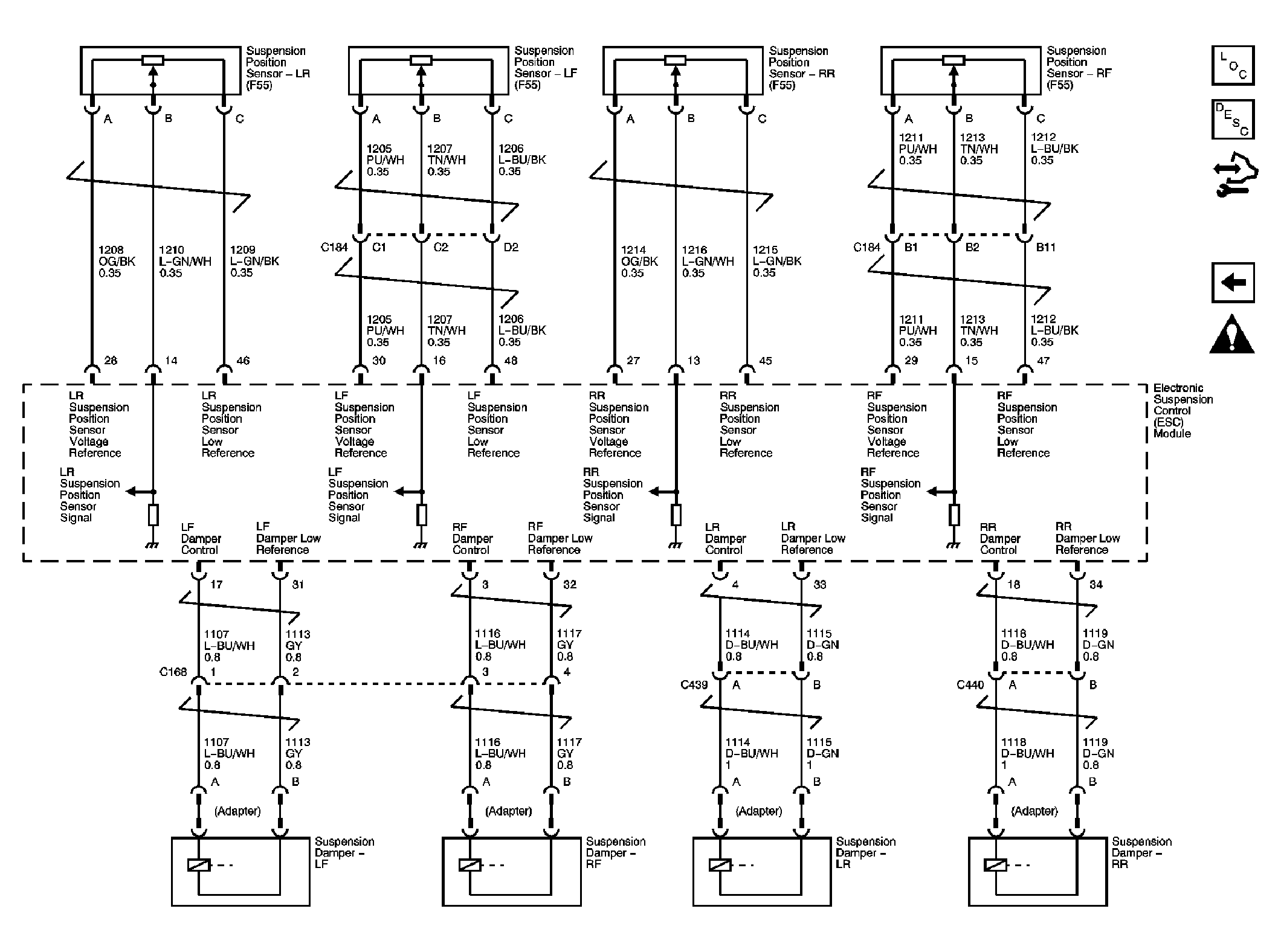

Fig 2: Dampers and Sensors Schematic
GM1892781Courtesy of GENERAL MOTORS CORP.
