SIR Schematics

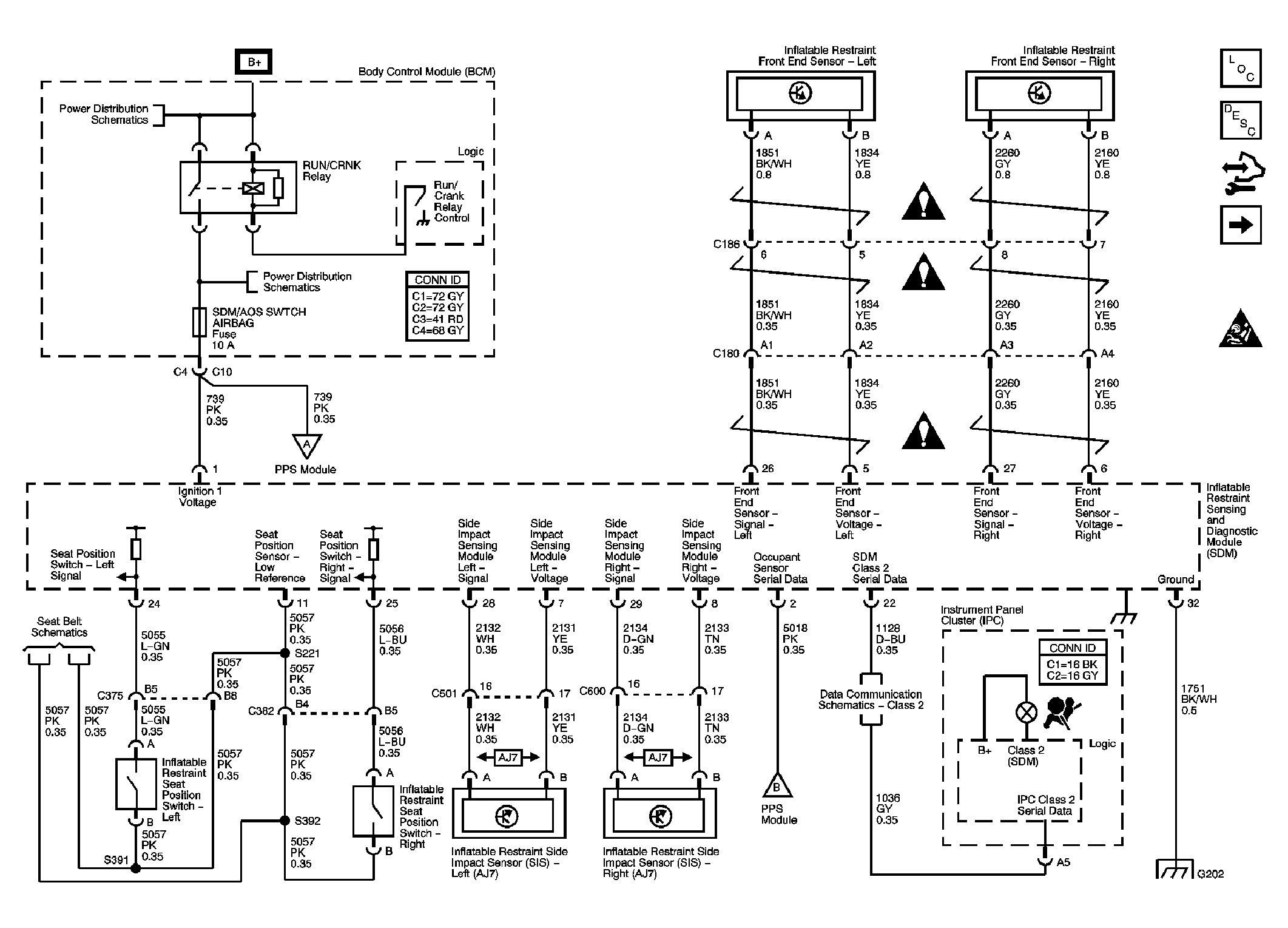

Fig 1: Power, Ground, Indicators, Sensors, and Switches Schematic
GM1892782Courtesy of GENERAL MOTORS CORP.

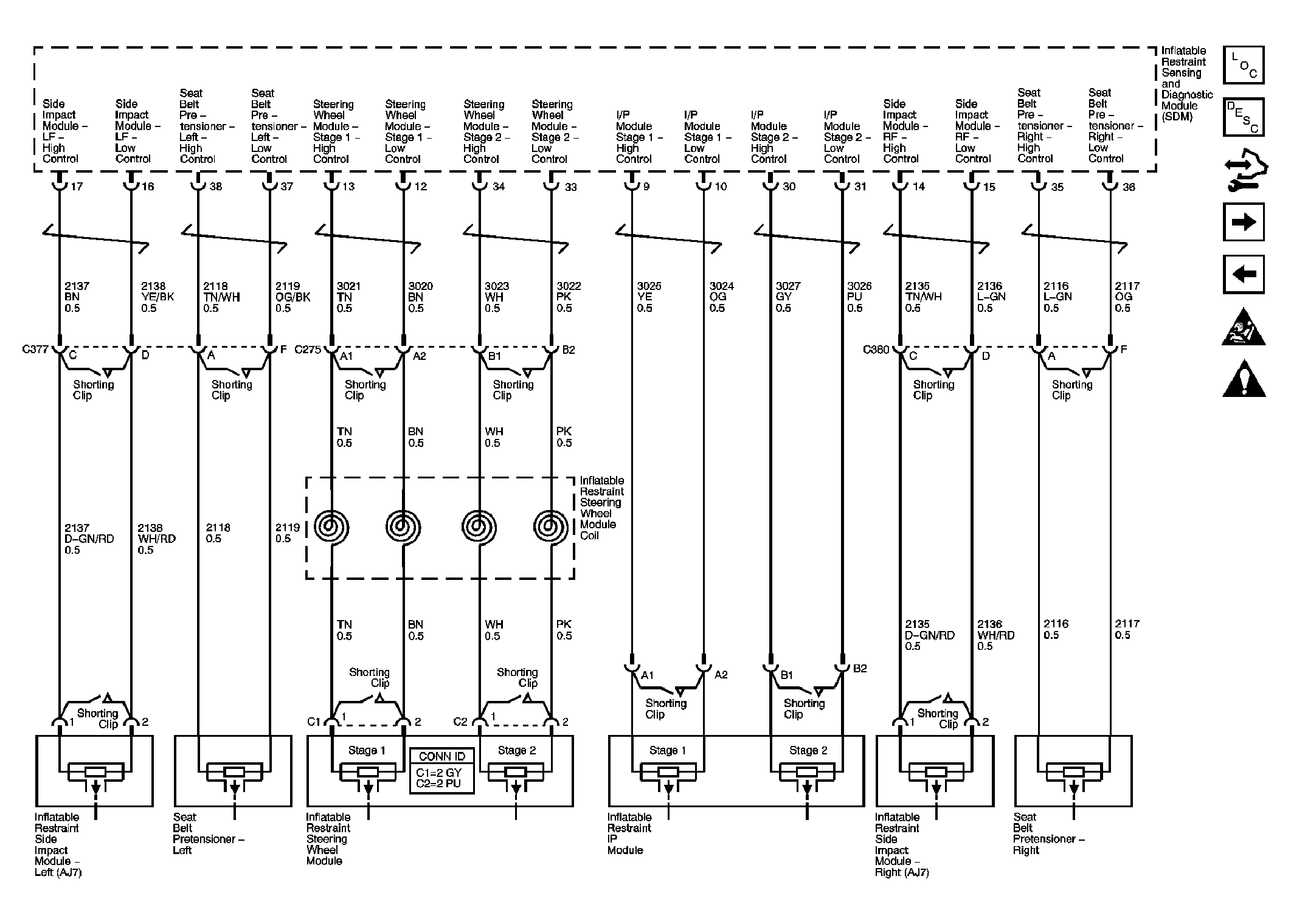

Fig 2: Deployment Loops Schematic
GM1892783Courtesy of GENERAL MOTORS CORP.

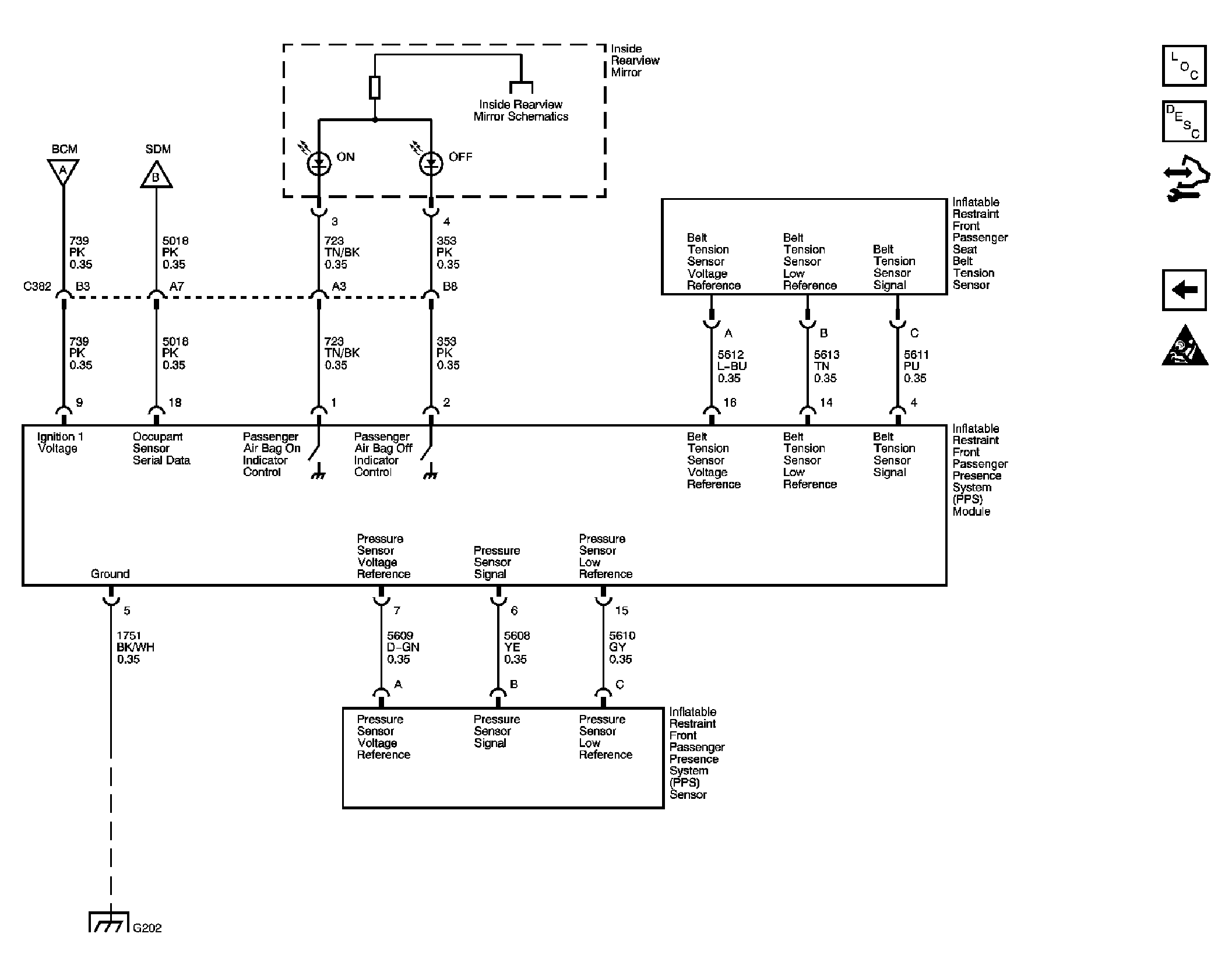

Fig 3: Passenger Presence System (PPS) Schematic
GM1892784Courtesy of GENERAL MOTORS CORP.
